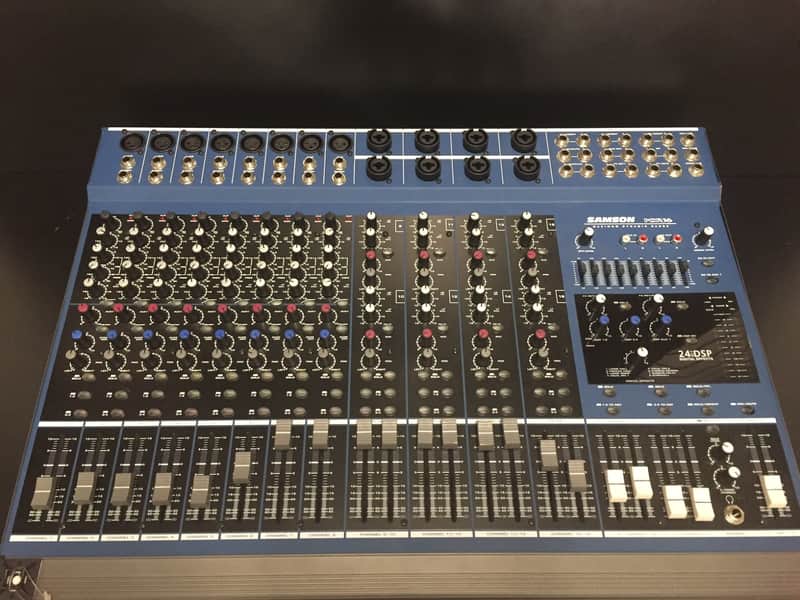

Samson MDR 16 Mixer

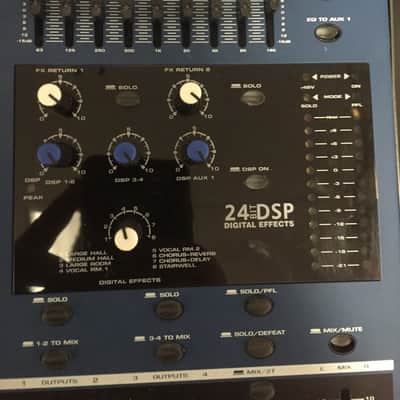

The MDR16 is a sixteen-channel mixer, with sixteen low noise microphone pre-amps, four output buses and a built in 24 BIT, DSP effects processor. The MDR16 features eight mono Mic/Line input channel strips with a three-band mid-sweep equalizer plus a low cut filter. These channels also offer two auxiliary sends that can be used for creating a monitor mix and for routing your signals to effects processors. The mono channels also feature a pan control for creating a stereo image, bus output assign switches, insert points for external processing and a 60mm fader for setting the level. In addition to the mono inputs, there are eight channels set up as Stereo/Dual mono inputs with two-band equalizer, switchable aux send, pan, a utility mic input and 60mm faders. The MDR16's master section includes two stereo auxiliary returns for mixing back external and internal effects and individual controls for mixing back the DSP effect to BUS 1 & 2, BUS 3 & 4 and even to AUX 1 to add effects to your monitor mix. The MDR16 features a nine-band stereo graphic equalizer allowing you to contour the frequency response of your speaker system. In order to get the most gain before feedback when running a monitor mix, you can assign the graphic equalizer to the Aux 1 output. The MDR16 features a mono output with level control, four 60mm bus output faders for sub mixing and a 60mm stereo master fader. Optimized for recording, live sound reinforcement and commercial installations; the MDR16 is an ideal mixer solution offering big sound in a compact package.

condition: EXCELLENT, no scratches or blemishes. comes with power supply
