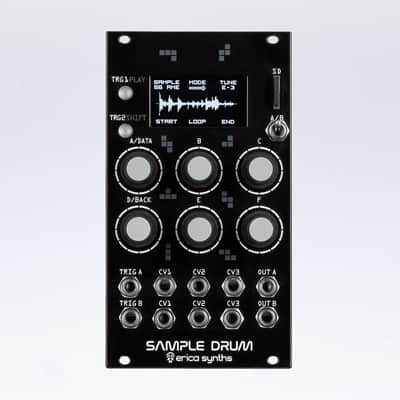

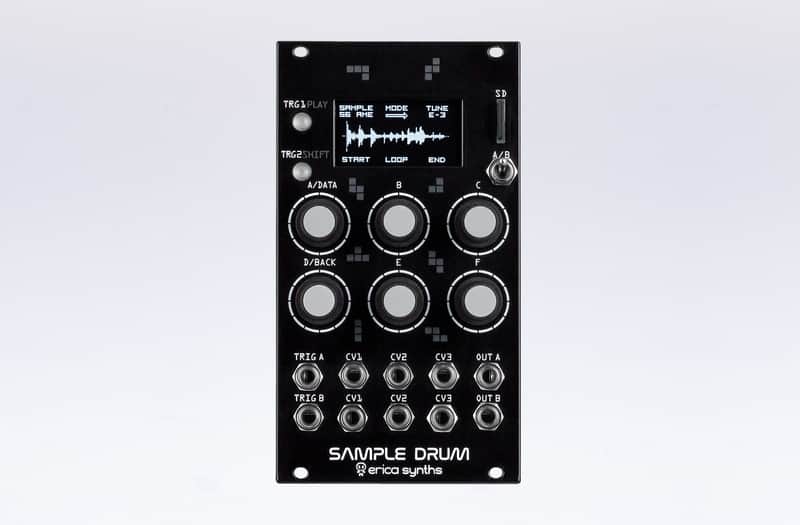

Sample Drum is 14HP eurorack sample player module with straight-forward, intuitive interface, functionality and great sound quality, designed with live performance use in mind. Features
- Sample playback with fast trigger response (~1ms)
- Various effects for real time sample processing
- Sample recording functionality
- Manual and automatic sample slicing
- Cue point loading from WAV files
- 1V/Oct tracking
- 3 assignable CV inputs per channel
- Preset memory
- User-friendly interface
- Performance mode
- 16 GB SD card with factory preset samples included
The Sample Drum is composed of two identical parts and allows you to play back, record and slice up samples or loops directly in your modular system. For processing there are different play modes, tuning functions (including 1 V/Oct pitch tracking), virtual VCAs plus AD envelopes and realtime effects. Three freely assignable CV inputs per channel guarantee a lot of expression during performance. 16bit mono wav samples are loaded into RAM (32MB / ~ 5 minutes of sampling time) from SD card (16 GB SD card with factory preset samples comes with the module) for instantaneous playback response. All settings can be saved and recalled during live performance.
The Sample Drum comes with free factory preset sample pack developed by producers Pitch Black, Nero Bellum, T.Raumschmiere, Otto von Schirach, Raitis AG. If you use your own samples in the Sample Drum, you take all responsibility on complying with copyright laws.
Sample Drum is 14HP eurorack sample player module with straight-forward, intuitive interface, functionality and great sound quality, designed with live performance use in mind. Features
- Sample playback with fast trigger response (~1ms)
- Various effects for real time sample processing
- Sample recording functionality
- Manual and automatic sample slicing
- Cue point loading from WAV files
- 1V/Oct tracking
- 3 assignable CV inputs per channel
- Preset memory
- User-friendly interface
- Performance mode
- 16 GB SD card with factory preset samples included
The Sample Drum is composed of two identical parts and allows you to play back, record and slice up samples or loops directly in your modular system. For processing there are different play modes, tuning functions (including 1 V/Oct pitch tracking), virtual VCAs plus AD envelopes and realtime effects. Three freely assignable CV inputs per channel guarantee a lot of expression during performance. 16bit mono wav samples are loaded into RAM (32MB / ~ 5 minutes of sampling time) from SD card (16 GB SD card with factory preset samples comes with the module) for instantaneous playback response. All settings can be saved and recalled during live performance.
The Sample Drum comes with free factory preset sample pack developed by producers Pitch Black, Nero Bellum, T.Raumschmiere, Otto von Schirach, Raitis AG. If you use your own samples in the Sample Drum, you take all responsibility on complying with copyright laws. Please read the End User Agreement below!
FIRMWARE UPDATE CHANGELOG
Audio output amplitude10VptpOctave rangeC0 – C8RAM size32Mb, 5 minutes of samplesSample rate48kHz, 16bitSample recording rate48kHz, 12bitCV input range (configurable) 5V - +5VPanel width14HPPanel width30mmPower consumption65mA@+12V, 2mA@-12V
Audio output amplitude10VptpOctave rangeC0 – C8RAM size32Mb, 5 minutes of samplesSample rate48kHz, 16bitSample recording rate48kHz, 12bitCV input range (configurable) 5V - +5VPanel width14HPPanel width30mmPower consumption65mA@+12V, 2mA@-12V
