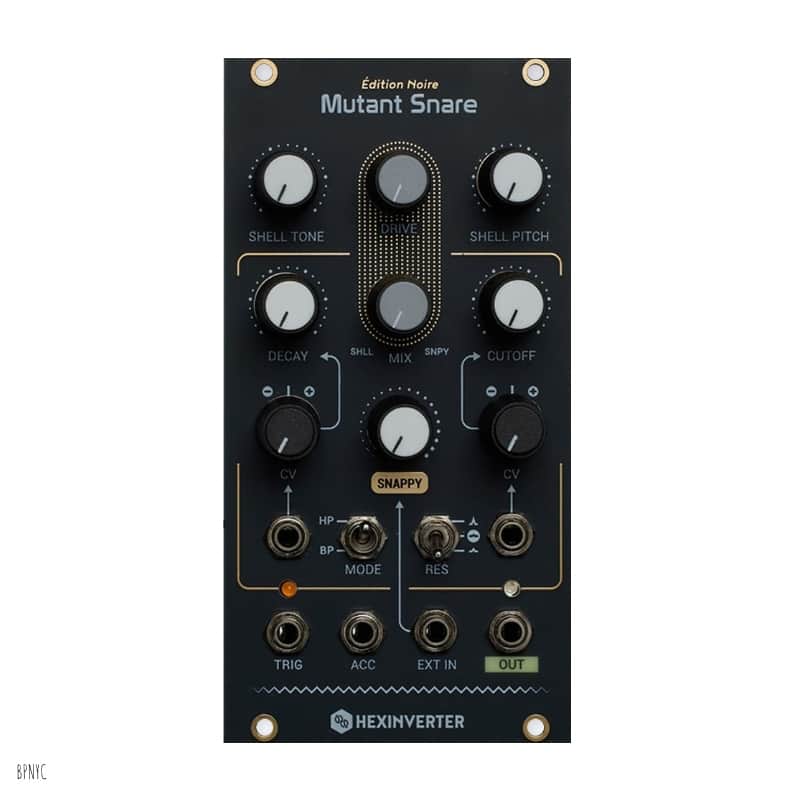

Mutant Snare Designed by Hexinverter, from classic electro snares to warping, alien percussion, the Mutant Snare is a radical departure from the static sounds of the TR-808.Features

• Analog bridged-t sinewave oscillators, for those organic-sounding tones we've come to love from the 808
• TONE control blends between the two sinewaves of different frequency
• SHELL PITCH lets you tune one of the sine waves, to change the pitch of your snare drum
• SNAPPY adds some noise to the snare
• an analog white noise generator feeds the SNAPPY circuit
• an external input lets you patch any sound source you like into the SNAPPY generator
• voltage control of SNAPPY decay
• SNAPPY feeds into an analog selectable high-pass or band-pass filter
• voltage control of filter cutoff frequency
• when nothing is plugged into the cutoff CV input, the SNAPPY envelope OR the adjustable sinewave from the SHELL generator normalize through the CV attenuverter for cutoff CV. A jumper on the back of the module allows you to select which of these internal modulation signals are routed here
• filter has three resonance settings: classic 808 (low resonance), high resonance, and self oscillation
• bipolar attenuators (aka: 'attenuverters') on CV inputs

Redesigned by Erica Synths in close collaboration with Hexinverter.

Specifications:

Audio output 10Vptp

CV levels -5V - +5V

Power consumption +62mA, -57mA

Module width 13HP

Module depth 20mm
