Pioneer SA-6800 Stereo Amplifier & TX-6800 Tuner Combo - Fully Tested & Cleaned
This gear has sold
See similar gear from other Reverb sellers
Listed:7 years ago
Views:470
Saves:11
Offers:1
Richmond, VA, United States
Our users rate Reverb

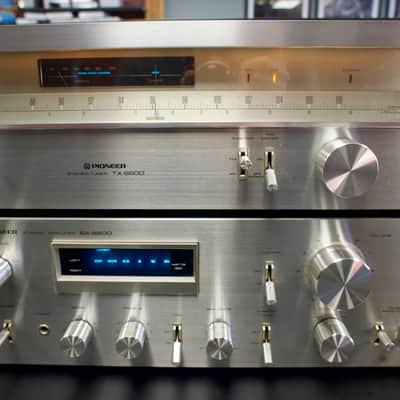

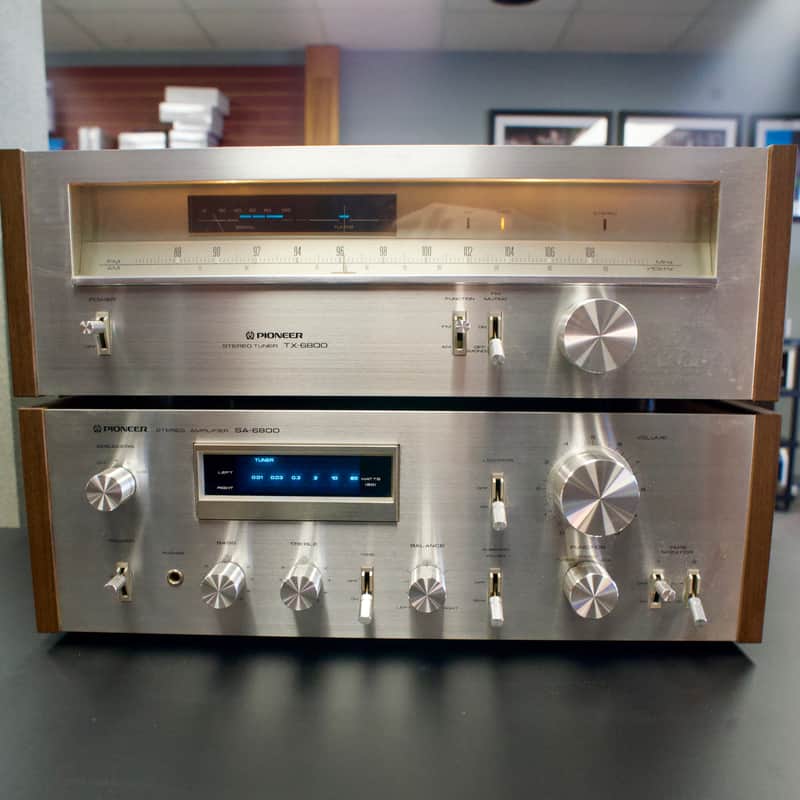

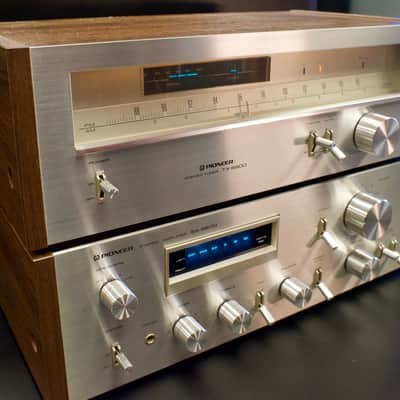

The Pioneer SA-6800 integrated amplifier is paired with a matching TX-6800 AM/FM Tuner. The SA-6800 outputs 45 watts per channel into 8 ohms. Both pieces are fully functional. They look and sound fantastic. All pots & switches have been cleaned.
The amplifier and tuner will both be well packed and shipped within one business day. They are guaranteed to arrive in the condition described. The manuals are freely downloadable from HiFi Engine.

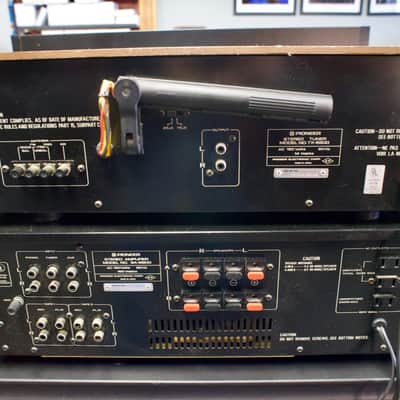

The Pioneer SA-6800 features twin switchable speaker outlets, protection/muting circuit, fluorescent power meter, function indicators for Tuner, Phono and Auxiliary inputs, loudness switch, defeatable tone controls, balance control, subsonic filter and tape monitor circuit.
Specifications Power output: 45 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 50kHz
Total harmonic distortion: 0.02%
Damping factor: 30
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 78dB (MM), 100dB (line)
Output: 150mV (line)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 7 x IC, 23 x transistors, 17 x diodes
Dimensions: 451 x 151 x 271mm
Weight: 8.3kg
Year: 1979
The amplifier and tuner will both be well packed and shipped within one business day. They are guaranteed to arrive in the condition described. The manuals are freely downloadable from HiFi Engine.
The Pioneer SA-6800 features twin switchable speaker outlets, protection/muting circuit, fluorescent power meter, function indicators for Tuner, Phono and Auxiliary inputs, loudness switch, defeatable tone controls, balance control, subsonic filter and tape monitor circuit.
Specifications Power output: 45 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 50kHz
Total harmonic distortion: 0.02%
Damping factor: 30
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 78dB (MM), 100dB (line)
Output: 150mV (line)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 7 x IC, 23 x transistors, 17 x diodes
Dimensions: 451 x 151 x 271mm
Weight: 8.3kg
Year: 1979
