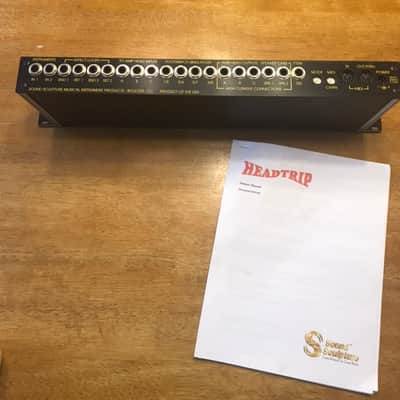

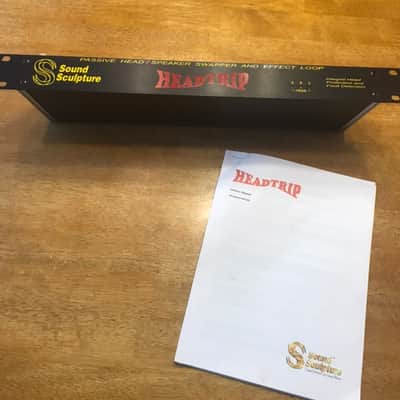

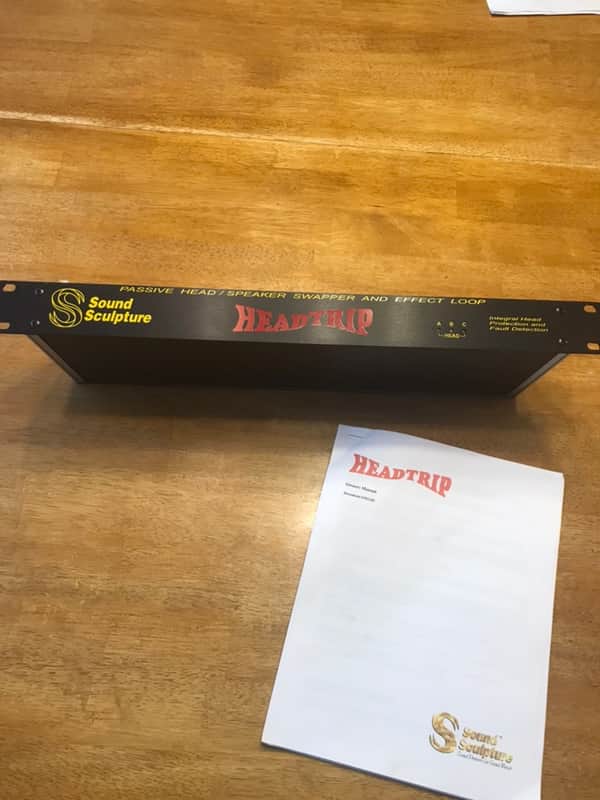

Sound Sculpture Headtrip Passive Head/Speaker Swapper & Effect Loop

The HeadTrip is a powerful amp head/speaker routing system. The entire audio path of the HeadTrip passes through relays only (no electronics) for absolute signal purity. When the effect loops are set to the “bypass” state, there is a direct hard wired connection between the instrument and the amplifier to insure full fidelity and purity. All signals and grounds are isolated between amp heads, between instruments and between the audio and control circuitry to eliminate all ground loop problems. All foot switch simulator relays are isolated as well.
With the HeadTrip you can:
• Select either of two instruments
• Insert either or both of two mono signal processors in series into the audio path
• Route any one of up to three heads to a single speaker cabinet or two speaker cabinets
• Route any two of up to three heads to two speaker cabinets connecting any one head to one speaker and any other head to the other speaker.
• Fully protect the amp heads that are not currently selected by muting the inputs and loading the outputs
• Monitor the internal loads and mute inputs as required as added protection in the event of cable miswiring
• Switch up to 8 footswitch inputs of amp heads to replace mechanical footswitches for channel selection or reverb control
• Do all switching under MIDI control using either Program Change commands or Control Change commands (Instant Access switches)
• Do all switching using a dual momentary switch on the footswitch input with various combinations available using a Mode Selector Switch.
• The HeadTrip is capable of handling any of the following loads on it’s head to speaker audio path: • 1000 Watts into 16 ohms
• 500 Watts into 8 ohms,
• 250 Watts into 4 ohms, or
• 125 Watts into 2 ohms
• In the event of power loss the HeadTrip automatically reverts to instrument 1, both effects bypassed, amp head A, speaker 1 and 2 and full load and mute protection on heads B and C.

For local pickup or buyer pays shipping.
