Up for sale a Radial Engineering Tonebone BigShot ABY True Bypass Amp Switcher Effect Pedal!  We are an Authorized Dealer of Radial Engineering!  This item is Brand New / Never Displayed and it comes with the Full Manufacturer's Warranty*.  Unit comes in its Original Packing.

-

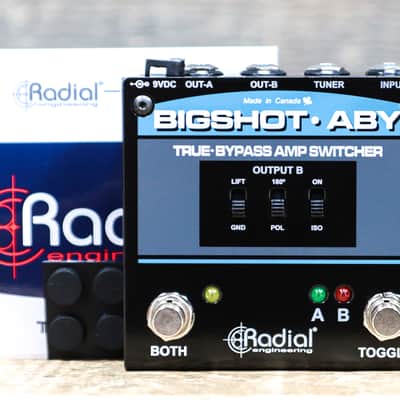

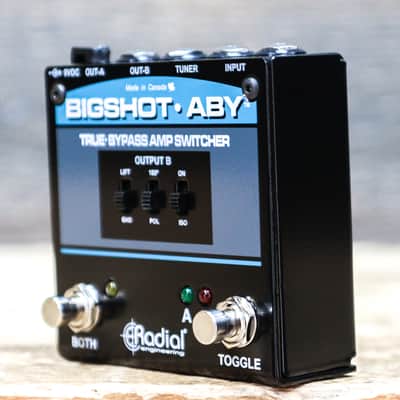

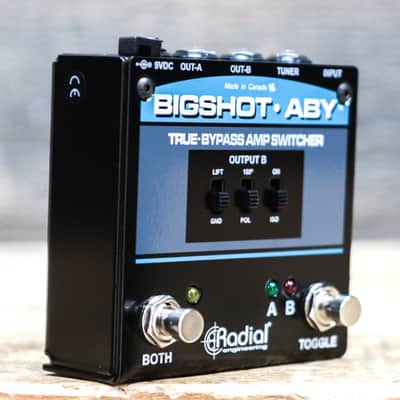

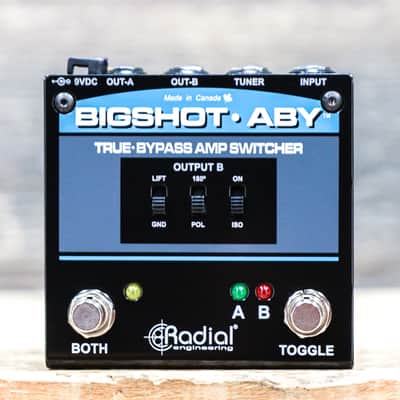

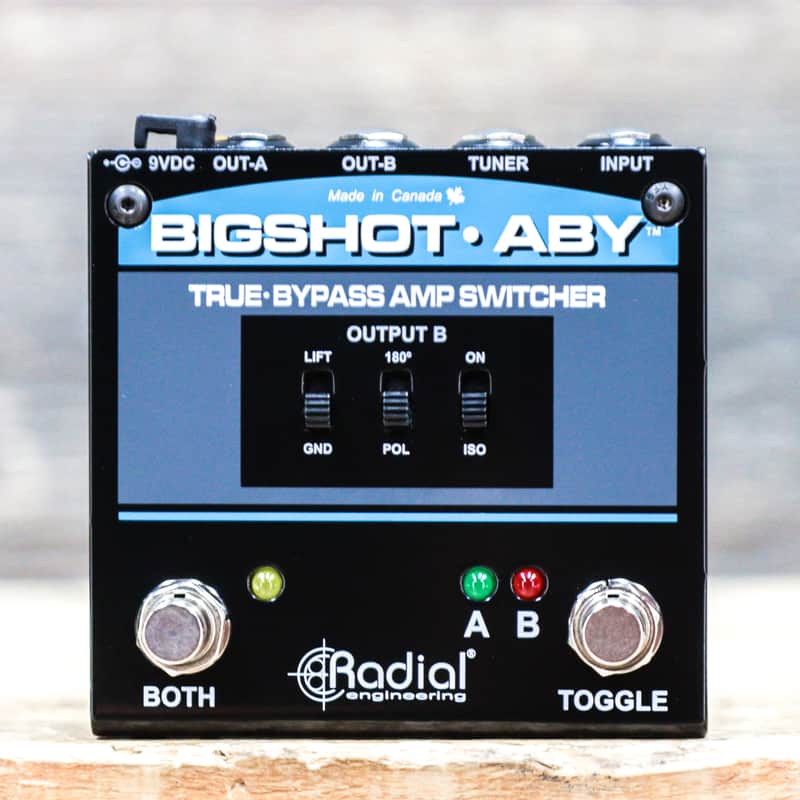

RADIAL ENGINEERING TONEBONE BIGSHOT ABY

The BigShot ABY is a compact true-bypass ABY switcher that enables you to switch between two amplifiers or play through both amps at the same time, while eliminating buzz and hum from ground loops.

Effective control for your two-amp setup

The BigShot ABY makes it easy to run two amps on stage, without introducing noise or altering your tone. The pedal has two latching footswitches that allow you to choose which amp is active, or run through both simultaneously. The second amp output features a ground lift and an isolation transformer that can be engaged to eliminate buzz and hum from ground loops, while a 180° polarity reverse switch ensures both amps play back in phase to avoid frequency cancellation. When powered by an external 9V supply or pedalboard power brick, LEDs provide instant on-stage visual feedback - when power is unavailable, the passive audio circuit still works unaffected. Best of all, the BigShot ABY is true-bypass device, without any tone-altering buffers between the guitar and the amplifier to ensure you retain the pure tone of your instrument.

-

FEATURES:

- True-bypass ABY amp selector with LED indicators

- On-board transformer to eliminate hum & buzz

- 180° polarity reverse to phase-match amps

- 100% passive audio path, does not require power

-

SPECIFICATIONS:

Audio circuit type : Passive, true bypass

Frequency response : 20Hz - 20KHz

Gain : -0.3db

180° polarity reverse, Ground lift

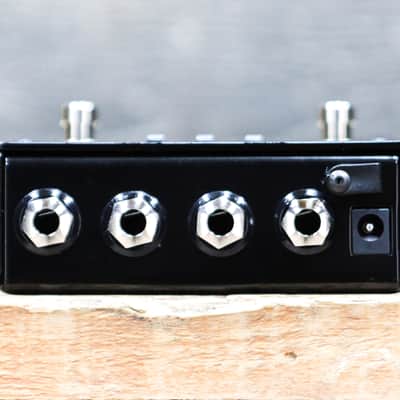

Input Connectors : 1/4"

Output Connectors : Two 1/4" outputs, switchable transformer isolated from Output-B

Extras : Tuner Output, ISO switch

Construction : 14-gauge steel

Finish : Durable powder coat

Power : 9VDC, center pole negative

Conditions : For use in dry locations only between 5°C and 40°C

Warranty : Radial 3-year, transferable

Size (L x W x D) : 3.9" x 3.6" x 2" (99 x 91.4 x 50.8mm)

Weight : 1.25 lb (0.56 kg)

-
