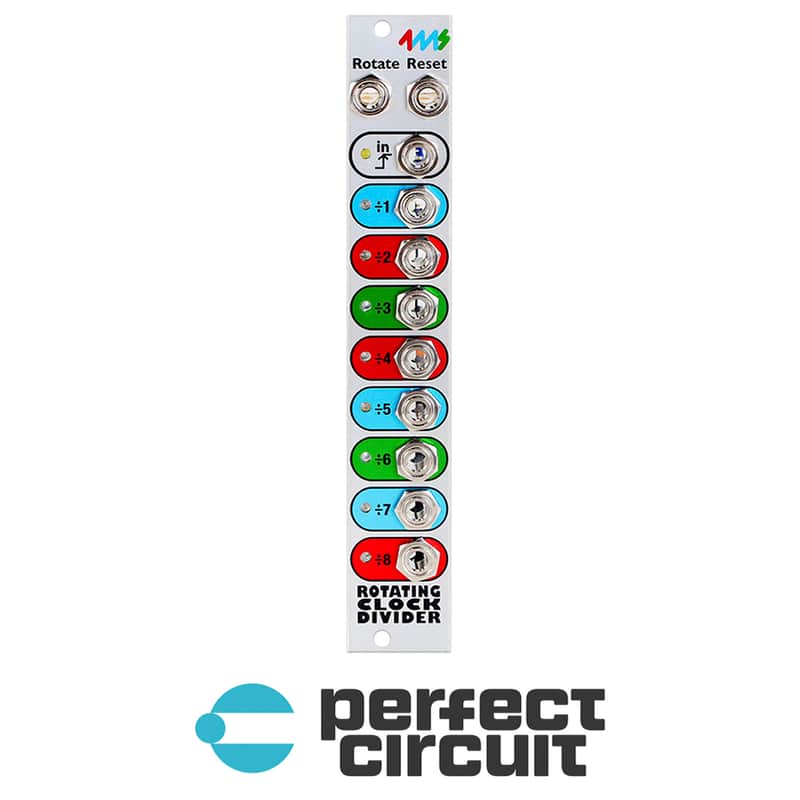

The 4ms Rotating Clock Divider is a small, simple utility for creating interesting, shifting streams of metrically-related clocks. 4ms's "rotation" feature allows clock divisors to sequentially switch through all of the built-in outputs, allowing shifting distribution of clocks.

The RCD features gate/trigger inputs for "rotate" and "reset," allowing intricate control of rotation patterns. Control everything externally or patch the module's own outputs to the rotate and reset inputs for interesting repeating rhythmic cycles.

The 4ms Rotating Clock Divider is a modern classic: simple in implementation and often dazzling in effect.

Features

• 4 H.P. Eurorack format
• Divide-by-1 to Divide-by-64, on 8 output jacks
• CV Rotate jack to shift divide-by amount on each jack
• CV Reset jack to reset/re-sync all jacks
• Optional break-out panels to expand functionality (MIDI, Auto-reset, selectable Divide-by range, Gate/Trigger, Up/Down-counting)

Jacks

• Clock Input (5V to 15V clock, rising edge triggered), max 3kHz
• CV Rotate (0V to +5V input)CV Reset (5V to 15V trigger)
• Divided Clock Outputs (8 jacks):
• Divide-by-(1+R)
• Divide-by-(2+R)
• Divide-by-(3+R)
• Divide-by-(4+R)
• Divide-by-(5+R)
• Divide-by-(6+R)
• Divide-by-(7+R)
• Divide-by-(8+R)...where R is the CV Rotation.
• Selectable Gate/Trigger mode:
• Selectable Divide range up to Divide-by-64:
• Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.
• Selectable Auto-reset:
• Auto-reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more "dance-able" even when using the "weird" clock divisions (3/5/6/7/9/10/11/etc..) Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.
