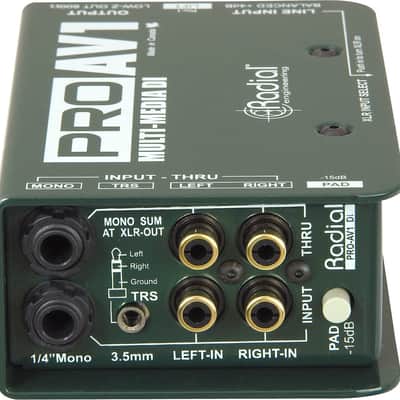

To eliminate the need for various adaptors, both units are equipped with a 'Swiss Army' array of connectivity options including 1/4" inputs for instruments, RCA and 3.5mm (1/8") connectors for CD players, iPods, video decks and computers. The ProAV1 also features a female XLR input for interfacing equipment with +4dB professional signal levels. The front panel connectors can also be used as thru-puts to allow multiple patch points.Custom wound Eclipse ET-DB2 transformers are able to withstand exceptionally hot signal levels while maintaining linearity from 20Hz to 20kHz. The resulting smooth Bessel curve is warm and natural, making them particularly adept at handling digital sources that can sound harsh. Transformer isolation further benefits by eliminating hum and buzz caused by ground loops or DC offset problems.

Product Features

• ''Swiss Army knife'' direct box for multi-media
• Easy to use, ultra-quiet passive design
• Eliminates ground loops that cause hum and buzz
• Handles huge transients without distortion

Attributes

• Type (X): DI
• Color (X): Green
• Number of Inputs (X): 3
• 1/4" Input (X): Yes
• XLR Outputs (X): Yes
• 1/4" Output (X): Yes
• 1/8" Input (X): No
• XLR Input (X): Yes

Included Items

The ProAV1 is a passive direct box with multiple input connector types and a stereo-to-mono merge function designed specifically for AV integrators to reduce channel requirements.The ProAV1 provides you with the ability to connect almost any audio source to a PA system, while automatically summing stereo sources to mono to preserve channels and simplify the audio setup. Inputs are available via 1/4", RCA, 3.5mm stereo, and line-level XLR connections, giving you the ability to easily connect to smartphones, tablets, laptops, CD players, or even a +4dB line level output from a console or recording interface. Transformer isolation helps eliminate noise while maintaining a linear frequency response, and a mono balanced XLR output allows you to feed a recording interface or a PA system.

Technical Specifications

• Features: Ground Lift
• Active/Passive: Passive
• # of Channels: 1
• Dimensions: 1.88" H x 3.25" W x 5" D
• Inputs: 1 x XLR, 1 x 1/4", 2 x RCA
• Outputs: 1 x XLR, 1 x 1/4" thru, 2 x RCA thru
• dB Pad: -15dB

Strukture selected the top-selling cables in the industry and eliminated as much packaging cost as possible without sacrificing quality. The PVC outer covering is reinforced by a state-of-the-art shrink-wrap sleeve to resist separation at the termination points. Finally, they use the highest quality solder connections, which are protected by a thick ABS inner sleeve, to create a cable you can count on.

Attributes

• Color: Black

Technical Specifications

• Type: Microphone
• Unit Count: Single
• From Connector: XLR Male
• To Connector: XLR Female
• Connector Angle: Straight to Straight
• Cable Length: 20'
