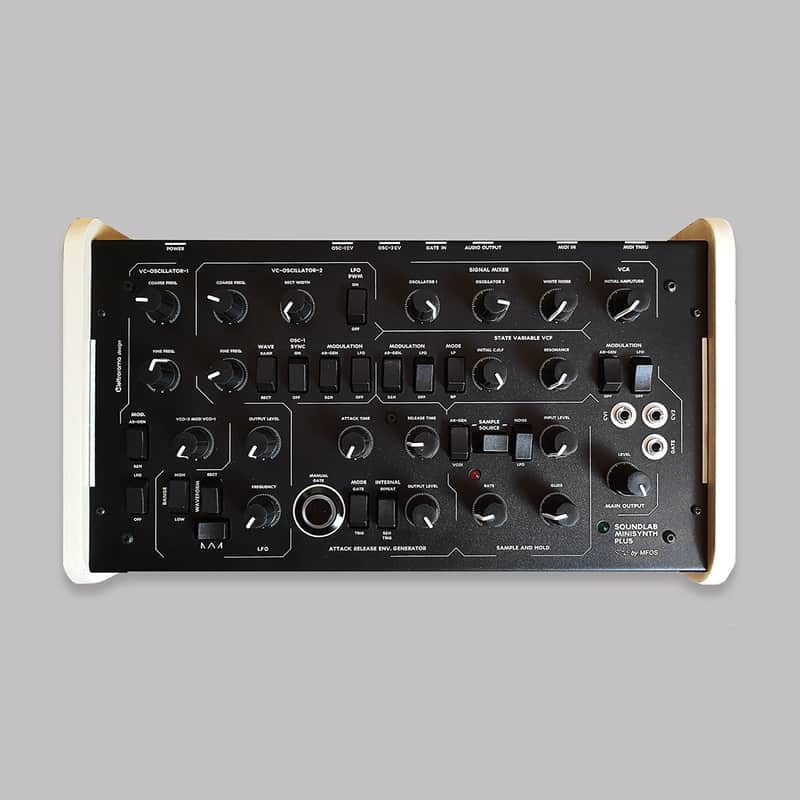

MFOS Soundlab minisynth Plus+ with Midi Interface

MFOS Soundlab minisynth Plus+ with Midi Interface

Included a 220 volt 50 Hz Eu power supply
for other power supplies for other networks please contact us.

This project is a reprise of the Sound Lab Mini-Synth with the addition of a Sample and Hold and several circuit and component value changes to improve performance. Even if you have already ear a Sound Lab I would recommend this as a completely new project.   New design  and a new MIDI INTERFACE onboard.
You can play  your SLMS+ with  a  midi  keyboard  or  midi controller.

Original design by Ray Wilson
Elettrorama version & mods
Approved and licensed by Music From Outer Space

Architecture
Type: Analog
Synthesis: Subtractive

Oscillators
Oscillators: 2
Waveforms: Pulse, Pulse Variable, Saw Down, Square
Osc Modulation: Envelope, Input, Knob, LFO, Sync Hard

Envelopes
Envelopes: 1
Evelope Paramerters: Attack, Decay, Looping

Filters
Filters: 1
Types: 12dB Slope (2-pole), Low Pass, Resonance
Filter Modulation: Envelope, Knob, LFO

LFO
LFO: 1
LFO Parameters: Saw Up, Saw Down, Square, Triangle

Plus version
Boards :Sample & Hold , Midi converter

Sample & Hold:
variable sample rate
output voltage glide
switch to select cource to be modulate

Midi:
Midi cannel: 1  (not exchangeable)
pitch bend, modulation , portamento (CC 5)
almost 5 octaves at moment - (older version only 2 octaves/almost)
Midi port:  MIDI IN, MIDI THRU

Polyphony & Tuning
Polyphony: 1
Timbrality: 1
Tuning: Standard
Modes: Mono

Case
Case: Desktop
Controls: Buttons, Knobs, Switches
Display Type: LED

Connections
Audio Output Connections:
1/4" Phone Jack, Mono Out

CV Ports: 2 CV IN, 1 Gate In (1/4" Phone Jack/3,5 mini jack)

Design Notes:
Original project by Ray Wilson
Mods and design by Elettrorama
Approved and licensed bi MFOS
