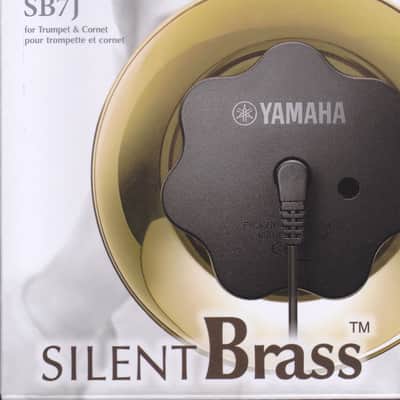

YAMAHA SILENT BRASS
SB7J TRUMPET

Combine the STJ Personal Studio with the PM7X Mute and you get the all new SB7J - 4th generation Silent Brass System for Trumpet.

This next generation Silent Brass system adds another level to playing enjoyment, anytime, anywhere.

There were three major upgrades with the unit. The first two are associated with what Yamaha calls Brass Resonance Modeling? Ver.2.0

• Greater control over reverb. Yamaha has brought back one of the original features found in the first Silent Brass SB7 module, reverb. You can now once again hear yourself as if you were in a large hall or just in a room.
• You now have the ability to hear in your ears what the audience is hearing instead of just from your vantage point. When you preform and practice you hear yourself from the mouthpiece side of the instrument. Now when you play you can image yourself sitting out in the audience listen to your performance. Very interesting concept and approach for a practice mute!
• You can record the music directly from your Silent Brass mute. With the provided micro-USB type-B to USB A cable you can connect directly to a desktop or laptop computer and record your performance! With an adapter (not provided) you can also connect directly to your phone or tablet.
• Yamaha has a free app named Rec'n'Share - available for Apple and Android. With this app you can record video/sound of your performance as you play along. You can easily share that recording over the internet and social media. You can also analyze and change the original tempo and add click sound to the song for ease in practicing. You can use the AB repeat function to playback a specific range of the song.


  You can also use the STJ Personal Studio with your old-style Silent Brass mutes.

Personal Studio STJ Dimensions

(W x D x H) 70.2 x 30 x 121.3 mm

(2-3/4"W x 1 3/16"D x 4 7/8"H)

Weight 112g (4 oz) without batteries

Improved Sound

The sound from this system has been greatly improved over the previous models, by using the process called Brass Resonance Modeling. This utilizes three simultaneous processes to produce the realistic tone of the brass instrument. This unique technology by Yamaha uses the modeling of non-muted brass instruments to correct your instrument?s tone when the Pickup Mute is in place. With a combination of The Personal Studio and a Pickup Mute, the resulting sound is so realistic, it?s hard to tell whether the instrument is muted, or not.

Player or Audience Mode

1. Cancel the distinctive mute sound

Sound detected by the microphone at the end of the pickup mute is digitally processed to cancel out the sound of the muted instrument.

2. Add the instrument?s natural sound

The natural sound that is produced by the unmuted bell is recreated for the player to hear, emulating the sound an audience hears when an instrument is played on stage.

3. Adjust left-right balance to match the player?s position

The timing, volume, and tone of the sound reaching the player?s left and right ears are individually adjusted, and reverb is added as needed to accurately simulate the feel of playing in a room or hall.

Aux In Jack

This jack allows an external sound source to be combined with the signal coming from the mute, such as an MP3 player, Tablet, Cell phone or CD Player. You can then play along with your favorite song in practice and performance settings, putting the fun back in your practice sessions.

Mute In Jack - The mute "input" jack allows a quick and easy connection to any of the 6 new Silent Brass Mutes.

Phones Jack - The headphone "output" jack allows the Silent Brass system to be connected to earphones for private practice, an external sound system for sound reproduction, or to a recording system for public performance and recording.

Control - VOL. (volume), Reverb type, Power ON/OFF

Power Supply - AA alkaline or nickel-metal hydride batteries x 2 (3V DC)

PM7X Mute
Dimensions

(diameter x length)

• 82mm (3-3/4") x 139mm (5-1/2")
• Weight 70g (2.5oz.)
• The Pickup Mute™ combines a high-performance mute with an internal microphone to pickup sound.
• Significantly smaller than previous versions, this mute offers superior muting performance, delivers excellent intonation over a wide pitch range, and natural playability.

The Pickup Mute™ combines a high-performance mute with an internal microphone to pickup sound.

Significantly smaller than previous versions, this mute offers superior muting performance,
delivers excellent intonation over a wide pitch range, and natural playability.

Mute In Jack - The mute "input" jack allows a quick and easy connection to any of the 6 new Silent brass Mutes.

Phones Jack - The headphone "output" jack allows the Silent brass system to be connected to earphones for private practice, an external sound system for sound reproduction, or to a recording system for public performance and recording.

Control - VOL. (volume), Reverb type, Power ON/OFF

Power Supply - AA alkaline or nickel-metal hydride batteries x 2 (3V DC)

New mutes are designed to attach and remove smoothly and easily.

A new compact design now lets you put your instrument in its case with the mute in the bell.

Significantly Lighter - So light you’ll forget it's in your horn, these new         mutes offer better instrument
balance when in the bell and greatly reduce stress when playing.

Specially Designed Mini Microphone - Its mounting position, and the         surrounding mute design were all optimized to bring out the full potential of Brass Resonance Modeling.

• Silent brass Systems include:

  Pickup Mute
  Personal Studio
  Earplug-style Stereo Headphones
  USB CableOwner's Manual

This system is brand new in a box!

Silent brass comes with a 1-year manufacturer warranty
