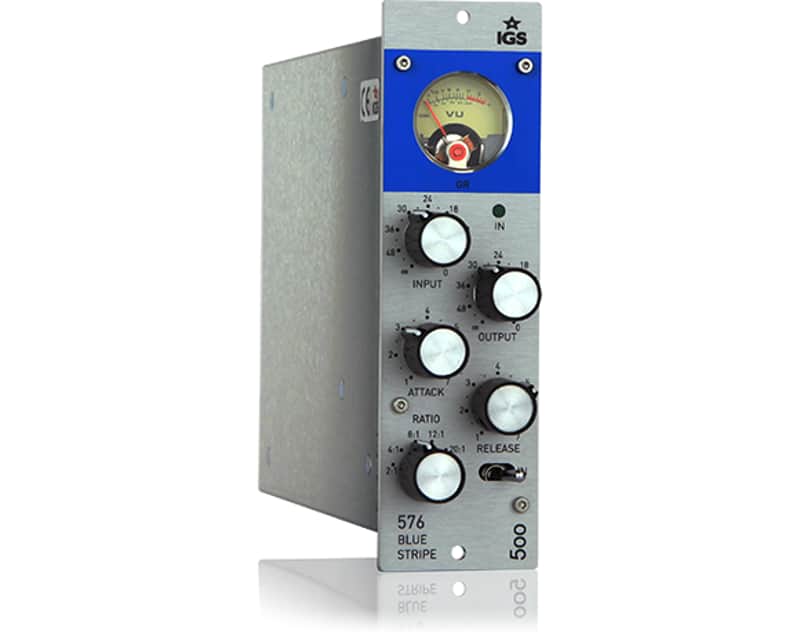

The 576 Blue Stripe is a revised version of the classic FET compressor.

What it is?
The FET-type solution was first used for its application in the legendary UREI 1176 compressor from the 70s. The most important feature inspired by revision A is the input transformer used and pure class A output stage. The compressor is equipped with a relay bypass, 2:1 Ratio and Slam Mode accessible on the front panel.

“true peak limiter with all transistor circuitry and superior performance on all types of material"
What it does?

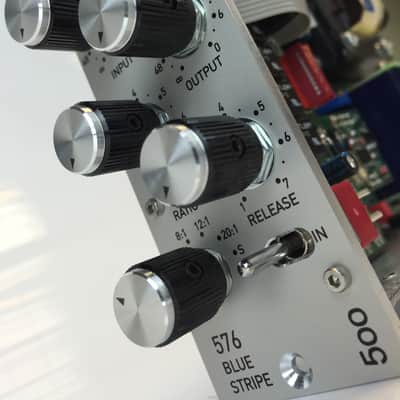

The 576 BS’s major selling point is its ultra-fast attack time — 20 µS. The 576 BS Ratio buttons allow four different modes of operation: 2:1 Ratio (soft compression); 4:1 ratio (moderate compression); 8:1 ratio (severe compression); 12:1 ratio (mild limiting); 20:1 ratio (hard limiting); S – SLAM, All Buttons In trick mode.

SLAM Mode can definitely give a male or female rock vocal track an in-your-face sound that you can’t get anywhere else.

SPECS
DEVICE TYPEFet CompressorYesBASIC FEATURESStereo LinkYes (linkable in PSU)INPUT & OUTPUTInput Impedance (balanced)2.4k, Carnhill transformerOutput Impedance (balanced)600 Ohm, Carnhill transformerAudio transformersYes, Carnhill on input and outputLEVELSOperating Level+4 dBuMax input level+20 dBuMax output level+22 dBuNoise Level-99 dBAMax. gain36 dBMax Gain Reduction-20 dBTIME CONSTANTSRatio2:1, 4:1, 8:1, 12:1, 20:1, Slam (All in)Attack:20us - 800usRelease:50ms - 1.1sBANDWIDTHFrequency response8 Hz to 20 kHz, +/- 0.1dBDISTORTION (@ 20 HZ - 20 KHZ)THD+N0.014%POWERPower consumption2.5WPACKING BOXShipping weight1kg
