MIDI USB DIN Converter Host Board Module Real MIDI Out Port Controller Keyboard

MIDI USB DIN Converter & USB Host Board - MIDI Device

Create a real MIDI OUT port for your pure USB MIDI controllers and keyboards, without a PC!

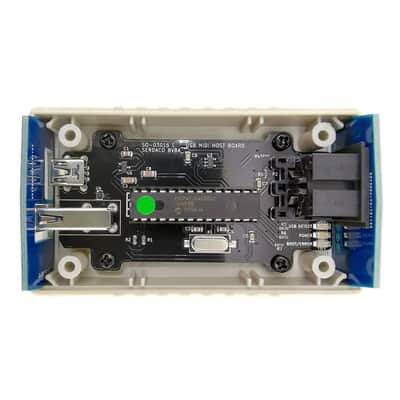

The MIDI USB DIN Converter is available as separate PCB and as Module (PCB & Enclosure)
A dedicated 5V MIDI signal output driver chip allows the module to work well with power through midi connection boards, e.g. MIDI Solutions - Quadra Thru.

Specifications

• Dedicated 5V MIDI signal output driver chip

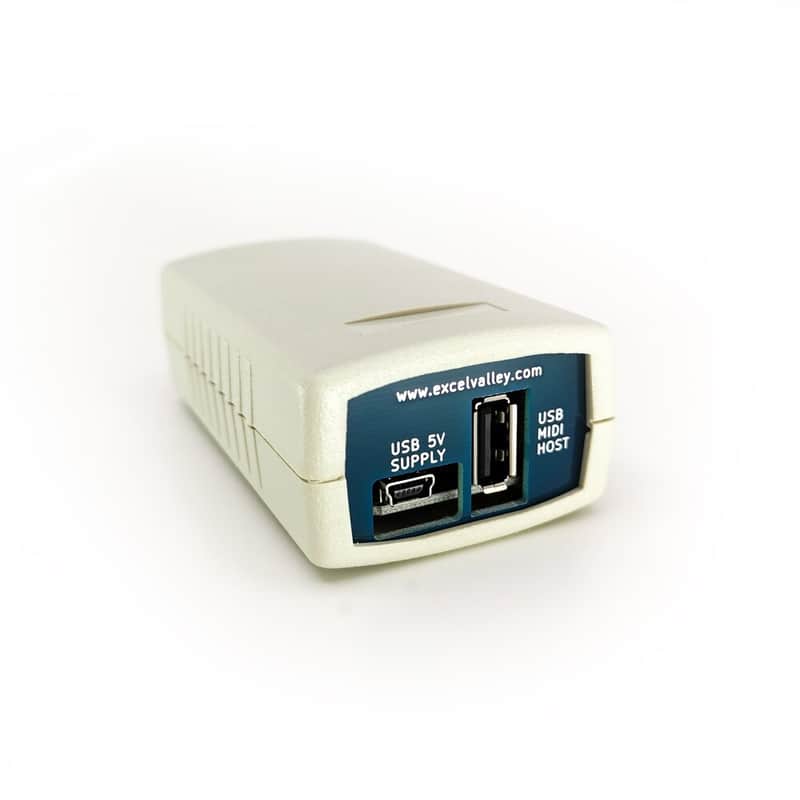

• Connectors
→ Classic DIN MIDI Out port
→ USB Host port - provides power to your USB MIDI device and receives MIDI information
→ Mini USB port - for 5V power supply
• Country of Manufacture: Belgium
• UPC: 615517918047
• EAN: 0615517918047
• MPN: AUHM01
• SKU: AUHM01

FAQ

Does this device eliminate the need for a computer?Does this device eliminate the need for a computer when trying to interface a keyboard (USB MIDI) to a legacy 5 pin DIN controllable device?
Yes, this MIDI USB DIN converter does eliminate the need for a computer.

Does this device support a USB hub? If so, how many USB MIDI device can be connected at the same time?
This MIDI USB DIN converter does not support USB hubs.

Supported MIDI Devices

Standard MIDI compliant devices are supported.

Some Complex MIDI devices use a built-in USB Hub. These MIDI devices are not supported and will NOT work with our USB MIDI Converter. You can determine if your device has a built-in hub by running the free Windows program "USB Tree Viewer". If, when you plug in your MIDI device, it appears as a new hub plus one or more devices, then it will not work with our MIDI USB DIN converter.
List of known Supported / Unsupported devices If you know of a MIDI device which works or does not work, we would love to hear from you.

Known Supported Devices:
• AKAI LPD8
• AKAI MPC 1000
• AKAI MPK Mini mkII
• AKAI Synthstation
• AKAI professional LPK25 Keyboard
• Arturia Beatstep
• Arturia Minilab Mk1
• Behringer X32
• Behringer XR18
• Casio CDP-220R
• Casio CGP700
• Farfisa FX-1000
• KAWAI MP6
• Korg ARP Odyssey
• Korg MS-20
• Korg SQ1
• Korg microStation
• Korg nanoPAD2
• M-Audio Axiom
• M-Audio X-Session
• Novation LaunchKey 49 MK2
• Novation SL Mark II
• Numark Orbit
• ROLI Lightpad Block
• ROLI Lightpad Block M
• ROLI Seaboard Block
• Yamaha NP12
• Yamaha P105
• Yamaha THR5/THR10
• ZOOM MS-70 CDR

Known Unsupported Devices:
• Alesis V49
• Behringer UMA25S
• Nektar GX61
• Novation Launch Control
• Teenage Engineering OP-1
