Description

The Z4000 NS is a snappy voltage-controlled analog envelope generator with a built-in CV processor for scaling, inverting, and voltage-controlled deviating of the envelope shape. The Z4000 generates an envelope made of the four classic segments: Attack, Decay, Sustain and Release, in which each segment can be manually set using knobs or dynamically set under voltage control. The output levels are fully adjustable with signals that can reach up to 10V in either polarity and can be mirrored into the opposite polarity or clipped using the voltage-controlled deviater-scaler. A bi-color LED indicates intermediate values in both polarities and their crossfade state.

Product Features

• Size: 8HP
• Depth: 28mm
• Power: +12V 34ma / -12V 18ma

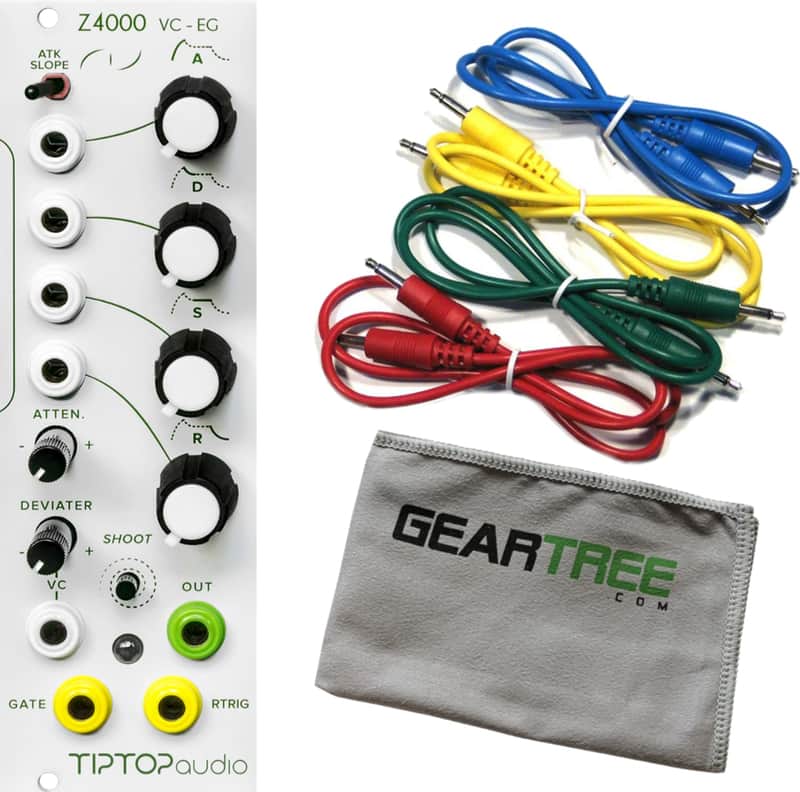

• 1 x Tiptop Z4000 NS Voltage Controlled Envelope Generator Eurorack Module
• 1 x YELLOW Ad Infinitum 12" Eurorack Modular Synth 3.5mm Mono TS Patch Cable 1/8"
• 1 x RED Ad Infinitum 12" Eurorack Modular Synth 3.5mm Mono TS Patch Cable 1/8"
• 1 x GREEN Ad Infinitum 12" Eurorack Modular Synth 3.5mm Mono TS Patch Cable 1/8"
• 1 x BLUE Ad Infinitum 12" Eurorack Modular Synth 3.5mm Mono TS Patch Cable 1/8"
• UPC: 669818854306

Attributes

• Color (X): Silver

Included Items

[1x] Tiptop Audio Z4000 NS Voltage Controlled Envelope Generator Eurorack Synth Module, White

The Z4000 NS is a snappy voltage-controlled analog envelope generator with a built-in CV processor for scaling, inverting, and voltage-controlled deviating of the envelope shape. The Z4000 generates an envelope made of the four classic segments: Attack, Decay, Sustain and Release, in which each segment can be manually set using knobs or dynamically set under voltage control. Control knobs for the Attack, Decay, and Release segments are scaled. The first 0-50% of the knobs rotation is dedicated to high resolution adjustment in the millisecond range. The output levels are fully adjustable with signals that can reach up to 10V in either polarity and can be mirrored into the opposite polarity or clipped using the voltage-controlled deviater-scaler. A bi-color LED indicates intermediate values in both polarities and their crossfade state. The Attack slope switch allows selection of a logarithmic or exponential curve for the Attack segment. This subtle effect helps further the fine adjustment of the Attack segment slope. A Shoot button is provided to let you fire the envelope manually. The Z4000 also provides a retrigger input allowing you to create legato notes when using a classic keyboard interface. Going down to nuts and bolts, the Z4000’s smoothness and snappiness is made possible by a four segment active-charge discrete circuit which is an extended version of circuits found in classic two segment rise / fall transient generators.

Attributes

• Color: White

Technical Specifications

• Type: Synth Module
• Processing Type: Analog
• Power Supply: Requires Eurorack case and power supply
• HP Size: 8HP

[1x] Ad Infinitum 3.5mm TS Mono Patch Cable, 12", Blue

Ad Infinitum's Fully-Molded Patch Cables are constructed of 26AWG Stranded Copper Wire with a Low-Loss 95% Spiral-Wound Copper Shield in a 2.8mm PVC Jacket. The Copper is 99.99% Pure and Oxygen-Free. The Connectors are Nickel-Plated, providing High Corrosion Resistance.

Attributes

• Color: Blue

Technical Specifications

• Type: Patch
• Unit Count: Single
• From Connector: 3.5mm
• To Connector: 3.5mm
• Connector Angle: Straight to Straight
• Cable Length: 12"

[1x] Ad Infinitum 3.5mm TS Mono Patch Cable, 12", Green

Ad Infinitum's Fully-Molded Patch Cables are constructed of 26AWG Stranded Copper Wire with a Low-Loss 95% Spiral-Wound Copper Shield in a 2.8mm PVC Jacket. The Copper is 99.99% Pure and Oxygen-Free. The Connectors are Nickel-Plated, providing High Corrosion Resistance.

Attributes

• Color: Green

Technical Specifications

• Type: Patch
• Unit Count: Single
• From Connector: 3.5mm
• To Connector: 3.5mm
• Connector Angle: Straight to Straight
• Cable Length: 12"

[1x] Ad Infinitum 3.5mm TS Mono Patch Cable, 12", Yellow

Ad Infinitum's Fully-Molded Patch Cables are constructed of 26AWG Stranded Copper Wire with a Low-Loss 95% Spiral-Wound Copper Shield in a 2.8mm PVC Jacket. The Copper is 99.99% Pure and Oxygen-Free. The Connectors are Nickel-Plated, providing High Corrosion Resistance.

Attributes

• Color: Yellow

Technical Specifications

• Type: Patch
• Unit Count: Single
• From Connector: 3.5mm
• To Connector: 3.5mm
• Connector Angle: Straight to Straight
• Cable Length: 12"

[1x] Ad Infinitum 3.5mm TS Mono Patch Cable, 12", Red

Ad Infinitum's Fully-Molded Patch Cables are constructed of 26AWG Stranded Copper Wire with a Low-Loss 95% Spiral-Wound Copper Shield in a 2.8mm PVC Jacket. The Copper is 99.99% Pure and Oxygen-Free. The Connectors are Nickel-Plated, providing High Corrosion Resistance.

Attributes

• Color: Red

Technical Specifications

• Type: Patch
• Unit Count: Single
• From Connector: 3.5mm
• To Connector: 3.5mm
• Connector Angle: Straight to Straight
• Cable Length: 12"

[1x] Polish Cloth

Keep your instrument collection clean and free of dust, smudges and other day-to-day blems with this microfiber polishing cloth. For use on guitars, basses, drums and any other instruments that need upkeep.

Attributes

• Type (X): Polish/Cloths
