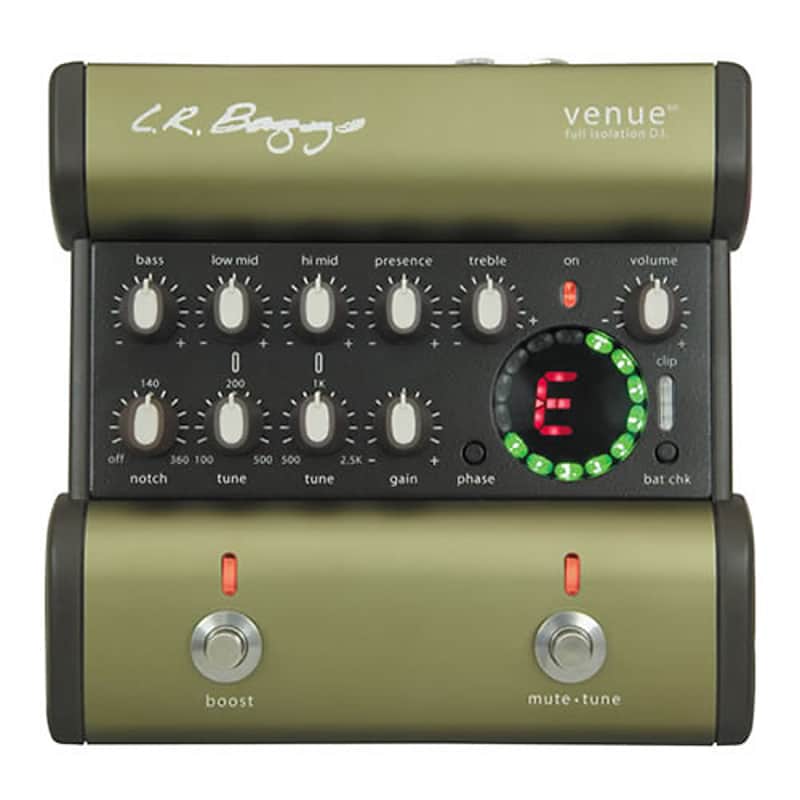

The Venue DI is an acoustic preamp that combines a transformer-coupled DI output for maximum isolation, an EQ specifically tuned for acoustic instruments, a volume boost footswitch to complement your playing styles, and an easy to read chromatic tuner with a mute/tune footswitch.

Combining the features from 3 stompboxes into 1, the Venue DI brings a new level of fidelity and usefulness to performing acoustic musicians. Assembled in the USA with 100% quality control testing.

Features

• Adjustable gain for both passive and active pickups

• 5 band EQ with tunable low-mid and high-mid bands

• Garrett Null notch filter for effective feedback control

• Phase inversion for best sound and feedback control

• Full chromatic tuner with footswitch mute/tune function

• Adjustable volume boost footswitch

• Full isolation audio transformer-coupled DI

• Clip meter to visually optimize gain setting

• 4 segment battery status gauge

• XLR and 1/4” outputs

• Series FX loop (separate jacks for send and return)

• Works with 9v battery or DC adapter (not provided)

• Carrying case included

• Size: 7.625 x 7.5 x1.5

• Weight: 2.2 lbs

• Gain: -12dB to +26dB

• Boost: 0dB to +9dB adjustable EQ

• Notch -21dB, sweepable from 60Hz to 320Hz, 1/8 Octave

• EQ - Bass +/- 12dB @ 90Hz

• EQ - Lo Mid +/- 12dB @ 250Hz, sweepable from 100Hz to 500Hz

• EQ - Hi Mid +/- 12dB @ 1kHz, sweepable from 500Hz to 2.8kHz

• EQ - Presence +/- 12dB @ 3kHz

• EQ - Treble +/- 12dB @ 10kHz

• Input Impedance: 10 megohms

• Output Impedance: 600 ohms

• Battery Life: 40 hrs (depends on tuner usage)

• Power Supply: 9VDC with 100mA minimum (recommended, not included)
