Gibson Nighthawk ST3 (3 pickup model) Electronics Upgrade!

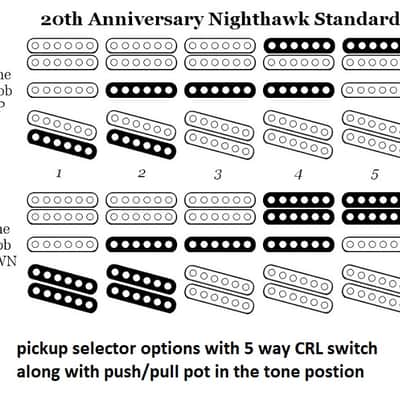

This harness is wired similar to the 2013 Gibson 20th Anniversary Nighthawk. See the picture above for the pickup switching combinations. You will need the stock pickups in the bridge and neck positions (or similar 4 conductor wire pickups) in order for this to work properly.

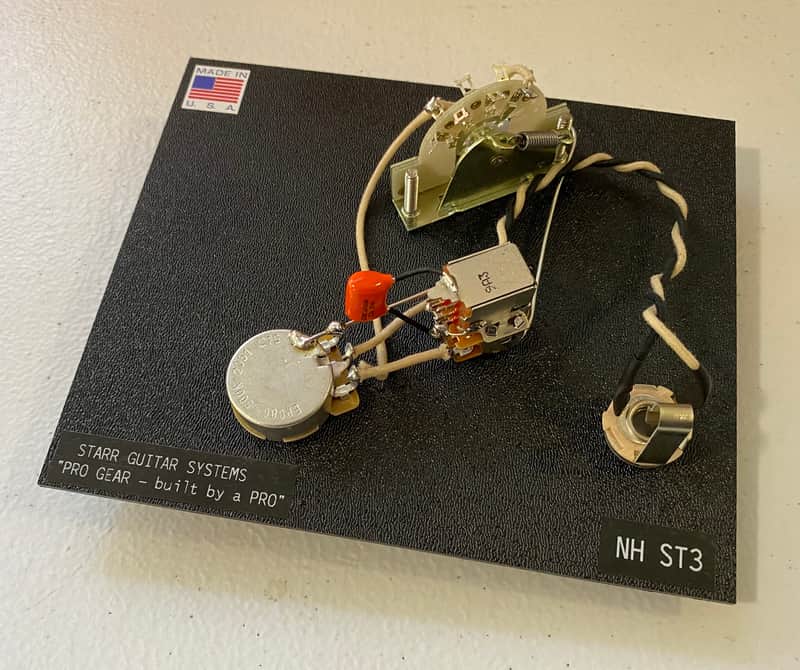

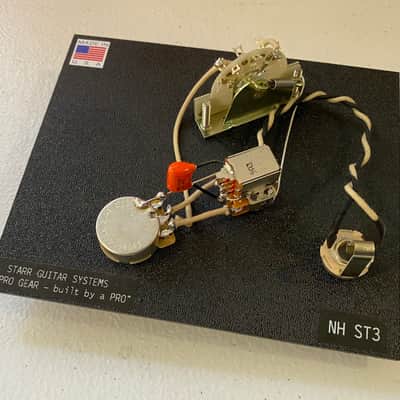

STARR GUITAR SYSTEMS wiring harness for 3 pickup model Gibson & Epiphone ST3! Each set is assembled, hand wired and soldered in the USA by Dave Starr using premium parts.
Get rid of the tone sucking PCB electronics on your modern Gibson, or replace your old worn out parts with these premium replacement units! All units have their own serial number, and are signed by Dave Starr. FREE SHIPPING IN THE USA!

Included in each GNHST3 system:


1) CTS 500K audio taper volume pot. Includes nut, lock, and dress washer. These work best with push on knobs.
1) 500K push/pull tone pot (coil split for bridge & neck position pickups)
1) CRL 5 way pickup selector switch with black tip

1) Orange Drop capacitor .022 uf 400 volt

1) Switchcraft 1/4 inch mono #11 input jack

1) Gavitt vintage cloth wire bundle, black & white

1) Wiring diagram (sent via email)

1) Assembly template board

Note: Most guitars manufactured overseas in Korea, Japan, China, Indonesia and Mexico use 6mm metric pots and have metric sized holes drilled. You will need to enlarge the pot holes to 3/8" to fit these USA CTS pots properly.

Starr Guitar Systems
PO Box 3132
Conroe, Texas 77305

WHO WE ARE:
Starr Guitar Systems (SGS) owner Dave Starr has been playing guitar and bass professionally (WildeStarr, Vicious Rumors, and CHASTAIN) for over 30 years, and doing guitar repair for over 30 years as well. Dave has put his years of experience as a pro to come up with his own line of guitar & bass electronic upgrade systems. So, when you buy from Dave, you are not just buying gear from a guitar technician... you are buying gear from a PRO MUSICIAN who has been there and done that..... recorded over 15 albums, toured the world multiple times, MTV videos, artist endorsements (currently signed with ERNIE BALL strings and EMG pickups), etc. Every SGS unit comes with all of that experience behind it... what works and what doesn't, because Dave has pretty much seen and done it all. And, every SGS unit is custom built and assembled by hand one at a time by Dave here in his Houston Texas shop.
