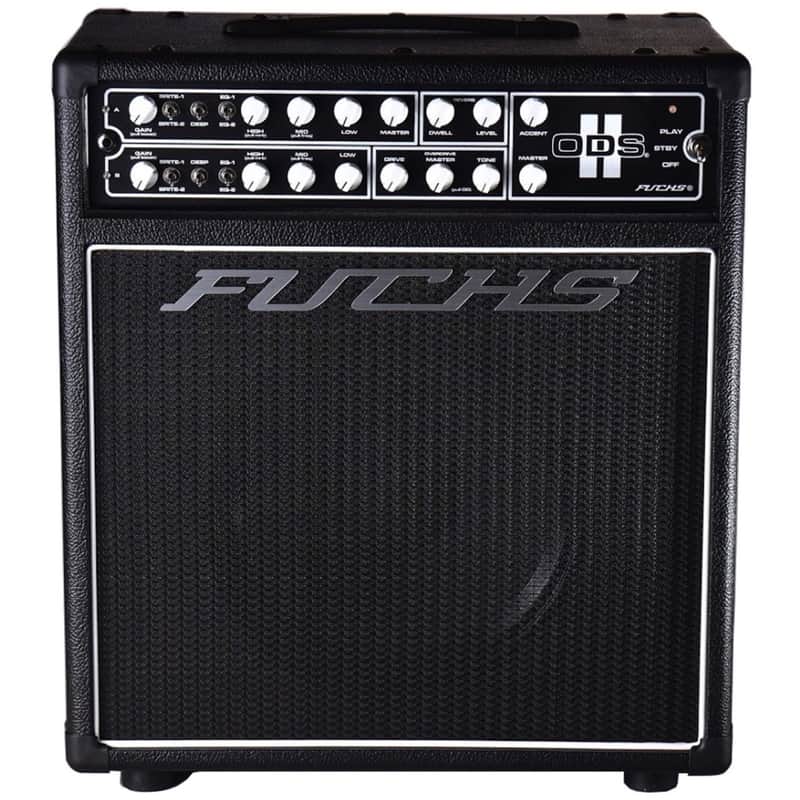

Fuchs ODS II Custom 2550 Guitar Combo Amplifier (50 Watts)

Built from the finest components, the Fuchs ODS II combo offers two discreet channels of muscular tone. Crank the master for smooth power tube overdrive.

Fuchs ODS II Custom 2550 Guitar Combo

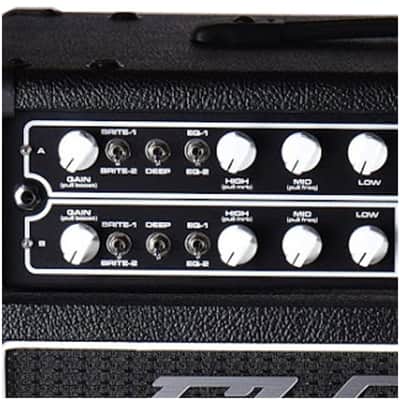

The Fuchs ODS II Custom 2550 Guitar Combo 50-watt amp captures all the tones that made the original Fuchs ODS amps legendary, but allows massive tonal flexibility via totally separate clean and overdrive channels, each with their own dedicated tone controls, mid and gain boosts, and master volumes.

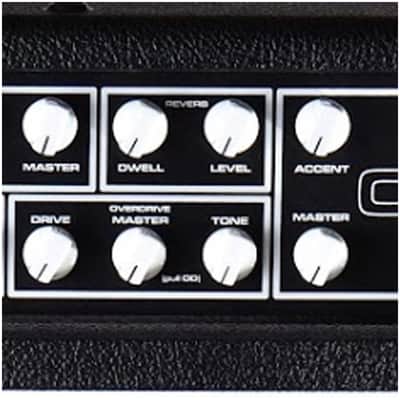

Despite this tremendous range, the ODS-II is still an easy to operate amp. Channel one gives tones from California style cleans to Classic rock grind. Channel two covers all that channel one offers but with over-the-top near-shred levels of gain as well. The amp has a deep, lush digital reverb with level and decay controls, and a global master and accent control. The rear panel features dual FX loops, digital bias monitoring with external bias controls for each tube, and 5 speaker outputs. The ODS-II is built on a fan cooled, aircraft grade aluminum chassis which includes half power and hi/low/off fan switches. Available in all global voltages.

We feel our designs go a few steps beyond those of other manufacturers!: In addition to refining our circuit designs and operating points with computer "Spice" modeling, we also spend countless hours tuning our circuits through careful parts selection and refining the internal layout of our products. Details like single- point star grounding of all internal circuits, premium audiophile grade power and output transformers, high speed switching diode power supplies, regulated and buffered DC power supplies for both filaments and high voltage sources, are key elements to producing an amp that has truly unique sonic advantages. All completed amps are compared to reference samples on both test equipment by live players before they may be shipped.

Our attention to the power supply and grounding result in an amp with extremely high gain capability, but with a super low noise floor. This reduction in noise and increases in overall circuit clarity makes the selection of components an even more critical element to achieving good tone. While we use many time honored component brands and features like “Orange Drop” Capacitors and/or carbon/metal film resistors, we also use Audiophile grade “Wonder Caps” and unique circuit refinements in many parts of our amplifiers as well.

It's a well-known fact that chassis materials can change the tone of the circuits built into them. We use an aircraft grade T-6 aluminum chassis, which is 1/6" thick, bent at its edges for strength, and when the front and rear panels are attached, forms a strong yet lightweight chassis. Aluminum also provides an excellent heat sink for excess tube, transformer, or regulator heat. Although we install fans in all models, our amps would dissipate plenty of heat even without a fan. The front and rear panels are attached to the chassis pan with pem-nuts, a 1/8 thick assembly formed at both the front and rear of the chassis for rigidity.

A combination of modern and traditional wiring methods: Internal construction in all models is based around a central circuit board, which supports most of the power supply and the amplifiers FX loop, driver and bias circuitry. The balance of the amp is hand wired, with particular attention paid to the preamp section and low-level circuits. All tube sockets are chassis mounted for strength and ease of replacement, in the unlikely event a socket fails. This also keeps tube heat away from the other internal components in the amps.

Our amplifier power supply starts with a high voltage supply, which is rectified using high-speed switching diodes, combining the sonic attributes of a tube rectifier, with the efficiency of solid-state diodes. These produce greater voltages, a more rigid supply that doesn't 'bend' under the stress of loud playing, and they also produce zero heat. This DC supply is highly filtered, using over 200 ufd of power supply filtering, contributing to an amplifier that has a strong voice yet remains loud & clear up to its limits.

Our output stage(s) feature separate bias for each power tube. Although we use premium “matched set” tubes as standard equipment, by individually setting bias, we can obtain maximum power before clipping, extending tube life with better tone. Our power amp driver circuit uses an AC balance trim control, which adjusts the signal balance to the power stage, keeping it linear, producing a clean, strong tone.

When driven to clipping, overloading is ultra- smooth, compressing in a sweet way, not at all aggressive or harsh.

Premium Transformers Our power transformers are designed for highest self-regulation as well as conservative operation, assuring lowest heat and highest reliability. Our output transformers (depending on the model) are premium grade audiophile quality.

Features
- Rear panel bias meter
- Buffered effects loop
- Two discreet channels

Footswitch included.
