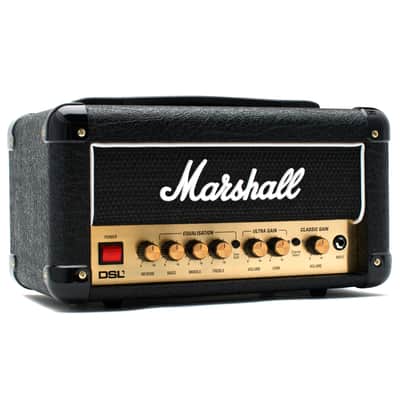

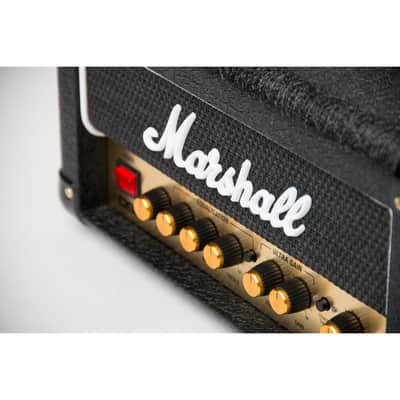

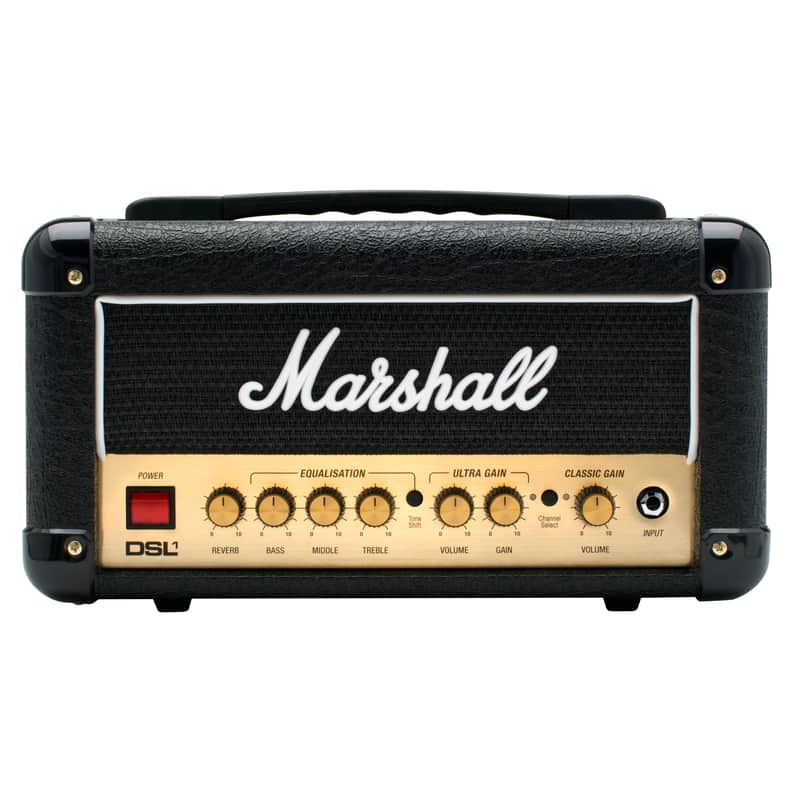

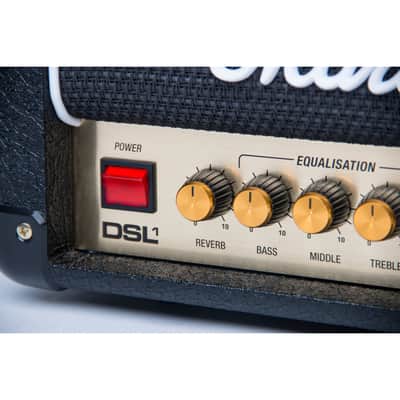

DSL1H 1 Watt Tube Guitar Amplifier Head

DSL

The versatile DSL series delivers legendary all valve Marshall tone suitable for all playing environments. From shimmering cleans to punchy distorted overdrives, the DSL allows you to easily flex the sound to your playing styles.

DSL offers a diverse range of features across the entire series including power reduction, studio quality reverb and two footswitchable channels. Combined this means that no matter your environment, you can really experiment and release your alter ego.

DSL1H

The DSL1H has the classic Marshall tone and features expected on a DSL but at a lower power to suit those who play at home. The sound has been perfectly crafted to suit those with eclectic tastes, looking for tonal experimentation.

PLAY AT HOME

There is the ability to reduce from 1w to 0.1w and use the emulated output for recording or headphones, Marshall has specifically engineered the DSL1 for a great sound at low levels.

CHOOSE YOUR TONE

Using the two footswitchable gain channels you can go from clean, classic tones to those with added distortion and extra bite.

SELECT YOUR SOUND

Create the music you want using the studio quality reverb, tone shift and FX loop.

GENERAL

• Model: DSL1H
• Range: DSL
• Technology: Valve
• Channels: 2, ultra gain and classic gain

ELECTRONICS

• Output wattage: 1w with optional power reduction to 0.1w
• Outputs: 1 x 1/4" jack speaker output, 16 ohm load only, 1 x 3.5mm jack emulated line out
• Inputs: 1 x 1/4" instrument jack, 1 x 3.5mm jack aux in, footswitch
• Controls: Classic gain channel with volume, ultra gain channel with gain and volume control, channel select switch, tone shift switch, treble, middle, bass, reverb and power reduction option
• Effects: Digital reverb
• Effects loop: Yes, series, send/return

VALVES

• Preamp valves: 2 x ECC83
• Power amp valves:1 x ECC82

ACCESSORIES

• Footswitch: PEDL-90011
• Cable: Detachable power cable included

DIMENSIONS (INCLUDING FEET AND HANDLE)

• Weight: 12 lbs (5.6 kg)
• Width: 14.2" (360 mm)
• Height: 8.3" (210 mm)
• Depth: 8.5" (215 mm)
