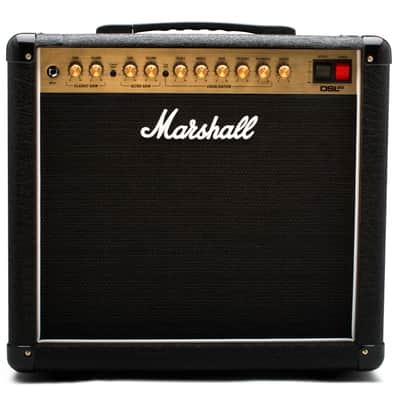

DSL20C 20 Watt 1 x 12" Tube Guitar Combo Amplifier

DSL

The versatile DSL series delivers legendary all valve Marshall tone suitable for all playing environments. From shimmering cleans to punchy distorted overdrives, the DSL allows you to easily flex the sound to your playing styles.

DSL offers a diverse range of features across the entire series including power reduction, studio quality reverb and two footswitchable channels. Combined this means that no matter your environment, you can really experiment and release your alter ego.

DSL20C

The DSL20 combo has a 12” Celestion Seventy-80 speaker for those who require extraordinary tone and versatility. From the moment you plug in, the DSL provides you with rich functionality for you to create your sound and unleash your alter ego.

CHOOSE YOUR TONE

Using the two footswitchable gain channels, reverb, FX loop and tone shift controls you can adapt the sound to suit your style.

PICK YOUR ENVIRONMENT

Power can be reduced from 20w to 10w without affecting the quality, so you can play wherever you are with confidence.

VARY THE OUTPUT

The DSL20 combo has three speaker outlets allowing for a combination of two speakers, the ability to record and a standby function for silent recording meaning it can be taken from the bedroom, to the studio and onto a gig.

EMPHASIZE YOUR EQ

You can have more bite and punch to your tone with the presence function and the resonance will give your sound depth.

GENERAL

• Model: DSL20C
• Range: DSL
• Technology: Valve
• Channels: 2 (Split) "Ultra gain" and "classic gain"

ELECTRONICS

• Output wattage: 20w (with power reduction option, 10w)
• Outputs: Speaker outputs: 3 x 1/4" jack sockets (16 ohm load / 8 ohm load), 1 x 3.5mm jack emulated line out
• Inputs: 1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in, footswitch
• Controls: Classic gain channel (gain, volume), channel select, ultra gain channel (gain volume), tone shift button, treble, middle, bass, presence, resonance, reverb, low power option (on rear)
• Effects: Digital reverb
• Effects loop: Yes, series, send/return

SPEAKERS

• Speaker configuration: 1x12"
• Speaker model: Celestion Seventy 80 speaker (16 ohm, 80w)
• Unit impedance: 16 ohm

VALVES

• Preamp valves: 3 x ECC83
• Power amp valves: 2 x EL34

ACCESSORIES

• Footswitch: PEDL-90012 included
• Cable: Detachable power cable included

DIMENSIONS (INCLUDING FEET AND HANDLE)

• Weight: 36 lbs (16.3 kg)
• Width: 19.7" (500 mm)
• Height: 16.5" (420 mm)
• Depth: 9.8" (250 mm)
