Mamba 8x8 Analog (Mic/Line/Instrument) or DMX 3 pin or AES/EBU over 4 CAT5/6 patch bay (Price for 2 units or Set)

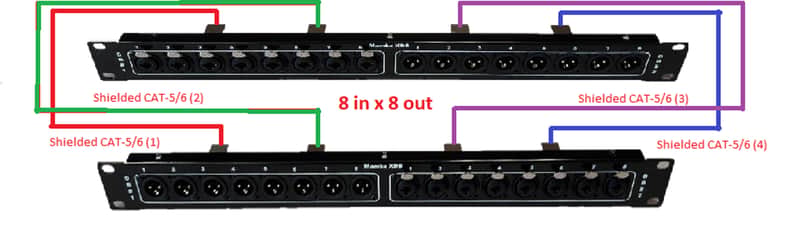

Price is for 2 units - 8Combo/8Male unit [Stage] and 8Male/8Combo unit [FoH] to give you 8 sends x 8 returns of Analog (Mic/Line/Instrument or AES/EBU) over 4 CAT5/6.

Open back as shown in pics.

We have other custom config such as 16 inx16 out, 12 inx4 out, or we can make any combination you want. Please contact us. Again, 2 units with opposite of In and out to match.

The 16 ch Analog or 16 digital AES/EBU over 4 CAT5/6 product is designed to carry your Mic/Line/Instrument or digital AES/EBU over Shielded CAT5/6 or Un-Shielded CAT5/6. This product is sold as a pair (stage end & FoH end) which are configured to match input to output. For example, 16 input (combo) on stage end unit would be connected to 16 XLR Male output at the FoH end. Phantom power pass thru is OK. These units can also be 8inx8out or any custom configuration based on your need. This unit carries 16 ch analog or 16 AES over a 4 CAT5/6. Each CAT5/6 is assigned for 4 channels of analog or AES/EBU. There is no A/D or D/A conversion, just carry analog or digital over twisted pair. This product is low cost alternate to analog multicore using CAT5/6. Mamba patch bays are of highest quality to match your high end pro audio gear. The parts, design using PCBs and construction are carefully done to provide the best audio quality. You can also check out or or or or patch bays.

Rack Mountable

Neutrik Genuine gold plated connectors

XLR Combo - XLR, TRS, TS - Mic, Line level or Instrument input

XLR F - XLR mic input or AES input

PCB mounted and clean signal pass thru

Phantom Power pass thru

Solid steel and sleek finish (open back)

Shielded CAT5/6 Preferred - You can also run Un-shielded CAT5/6 cables

Shielded RJ45 connectors - 4 per Unit.

Each RJ45 (CAT5/6) - can carry 4 Analog audio or 4 AES/EBU

Run 4 individual CAT5/6 between units or multi-core CAT5 (4 bundled as one cable)

THD and Cross talk measurement by Audio Precision Tester will be added soon.

[Cross talk of -100 dB on Un-shielded over 300 ft with +20 dB on ch1 - ch2/3/4 at -80 dB - Freq. 20-20K)

5 year warranty
