The SPL SMC Surround Monitor Controller combines analog volume control with speaker management and source selection for 5.1 surround and stereo monitoring, setting the industry standard.

Designed to provide only the necessary functions with excellent audio quality, the SPL SMC Surround Monitor Controller offers a uniquely cost-effective stereo and surround speaker and source management solution for essentially any audio application:

• Surround and stereo production
• DVD-V, DVD-A, SACD and DTS authoring
• Film and video postproduction
• Video and game production
• A/V and multimedia production
• Audiophile home entertainment systems

The advantages of the SPL SMC Surround Monitor Controller become especially apparent in combination with modern audio and video production tools such as ProTools, Nuendo, Cubase, Logic, Deck etc. Monitor levels and source management can be handled independently of the software and with virtually no loss in quality. You no longer need to set up additional aux sends or an alternative surround master for monitoring. In addition, you won't have to worry about over- or underdriving the converters due to monitor levels.

One of the SPL SMC Surround Monitor Controller's biggest advantages is the possibility to manage several input sources: comparing and monitoring SACD or DVD material is much easier than having to import all of your audio files and set up monitor mixes not to mention the conversion of multichannel audio.

Standard A/V receivers are often used for this task. The problem with this is that the audio has to be either AD/DA converted or manipulated by signal-degenerating control circuitry (VCA's, DAC's etc.) for volume control, so you never hear the unadulterated audio especially frustrating when you're working on SACD or DVD-A projects.

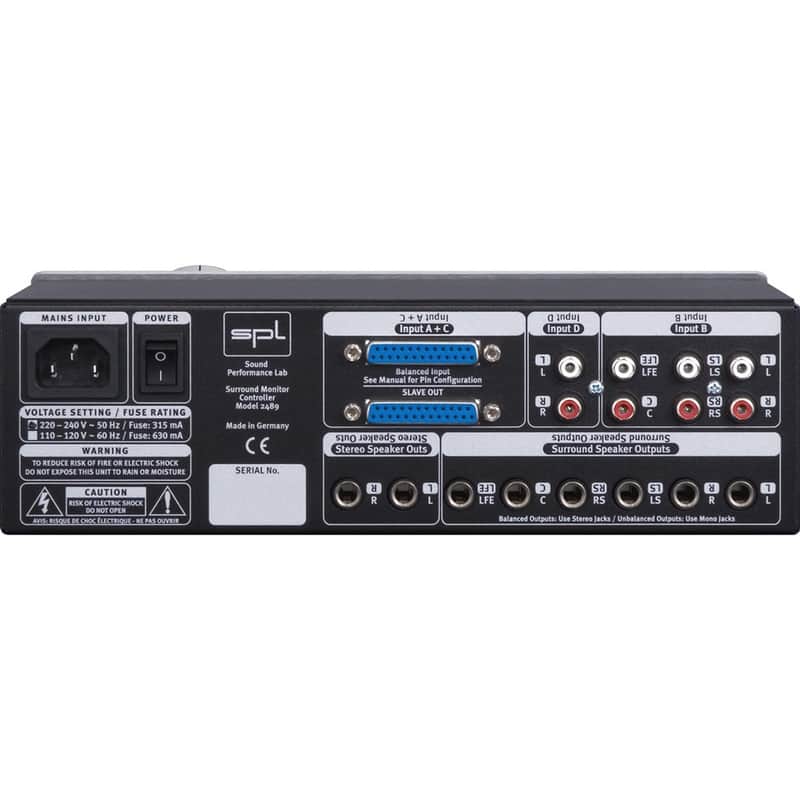

In addition to a surround speaker set, a stereo pair can be connected to and managed by the SMC. A Sub-D input connector provides six surround and two stereo input channels. Eight additional RCA connectors allow easy connection of SACD, DVD, CD or DAT players. A slave output allows the stereo or surround input signal to be routed directly to a recording device. Volume control is handled by a discrete six-layer potentiometer and all switching functions by extremely durable precision pushbuttons.

SPL's renowned electronic balancing circuitry forms the basis for the SMC's I/O architecture. Its extended frequency range up to 100 kHz, exceptional dynamic spectrum and excellent common mode rejection ensure specs that exceed SACD standards, as only highest quality analog circuitry can provide.

Last but not least, the SMC's rugged and ergonomic steel-blue desktop enclosure with its slanted front panel harmonizes perfectly with the desktop production environment.

SPL SMC Surround Monitor Controller Specifications

• Input impedance, balanced (Sub-D): 50 kOhms
• Unbalanced (RCA): 10 kOhms
• Output impedance, balanced (1/4" TRS): 600 Ohms
• THD+N
• Input level -10 dB: 0.04%
• Input level 0 dB: 0.01%
• Input level +10 dB: 0.006%
• Input level +18 dB: 0.002%
• Input level:+22 dB: 0.1%
• Noise, A-weighted: -98 dB
• Maximum input level: +22 dB
• Dynamic response: 120 dB
• Common mode rejection
• @100 Hz: 70 dBu
• @1 kHz: >70 dBu
• @10 kHz: >60 dBu
• @100 kHz: >50 dBu
• Frequency response: 10 Hz-100 kHz (-3 dB)
• Phase: -36° (10-120kHz, -3 dB center frequency)
• Phase, linear 20 Hz-100 kHz
• Dimensions H x W x D:
• 91 x 272 x 220 mm (3 9/16" x 10 11/16" x 8 21/32")
• Weight 2.3 Kg (5 lbs)

SPL SMC Surround Monitor Controller Includes

• SMC Surround Monitor Controller
• Power Cable
• Manual
• Two Year Warranty
