This module is sold fully assembled.

A dual SR flip-flop with toggles

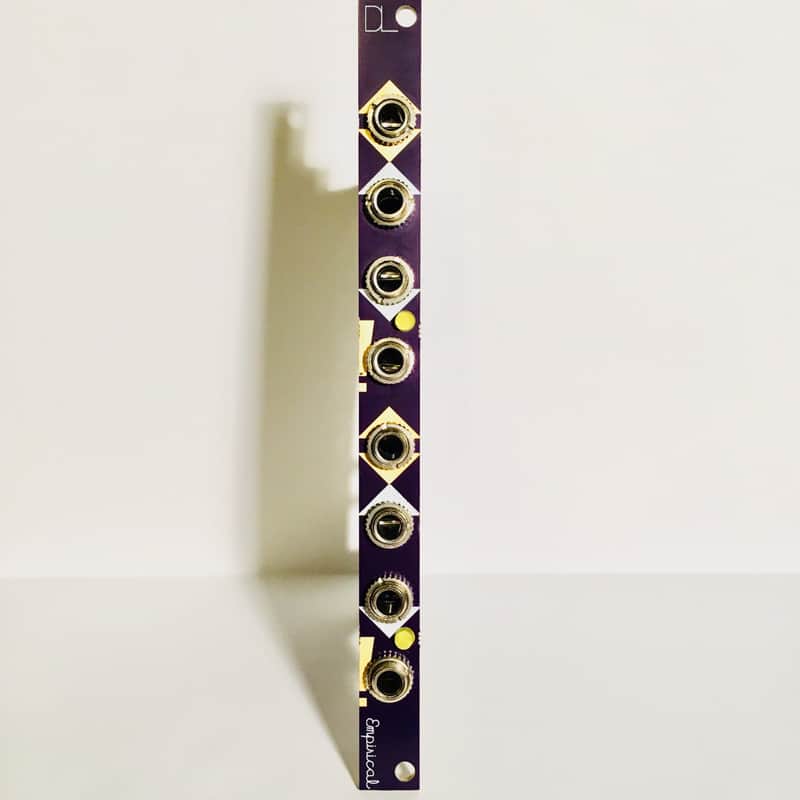

Dual Latch is a utility module in a 2hp form factor. It contains two set / reset flip-flops that also have toggle inputs.
-Use-
A trigger sent to a set input (up arrow) sets the gate (!) output high (7.5 volts), while a trigger sent to the reset input (down arrow) sets the gate low (0 volts). The gate outputs are buffered and work well as audio signals at this level.
The gold up/down arrows are the toggle inputs, for toggling the gate with a trigger. One trig will flip the state, another trig will flip it back. In this way it doubles as a divide by 2 or sub oscillator. You get two of these ‘latches’ in a package.
-Purpose-
The gates can be used to control anything in your Modular. This module was created to provide a way control the hold/freeze inputs on certain digital modules in a synchronized, rhythmic fashion. It is capable of completing this task as well as much more and pairs very well with other logic modules. For example, AND one of the gate outputs with a trigger stream sent to a voice for rhythmic fills! It's a digital function that can be used in conjunction with a wide range of other modules to add a new layer of control to your Eurorack system.

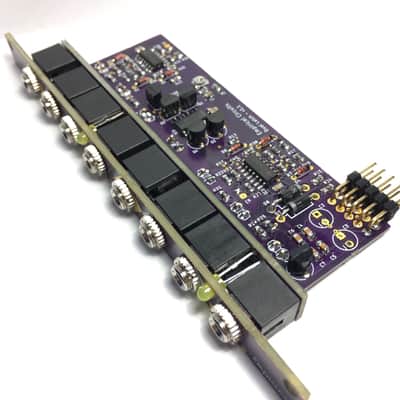

The inputs will accept any type of signal (they activate at +1.5 volts) and can handle a massive range of frequencies since the module has a CMOS heart.
Power is reverse polarity protected and current limited and uses a 10-pin Eurorack power ribbon.
***Sorry for the poor video quality, it was shot on my iphone very hastily. For a description of what's going on in the patch click on the video link and read the description on youtube. Thanks for watching!***

Product Specs

Condition:
Brand New (New)
Brand:
Empirical Circuits
Model:
Dual Latch
Finish:
Deep Purple
Categories:
Eurorack
Year:
2018
Made In:
United States
