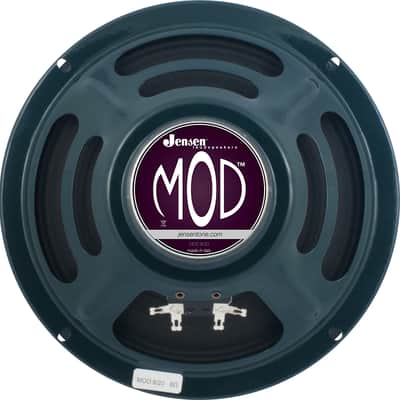

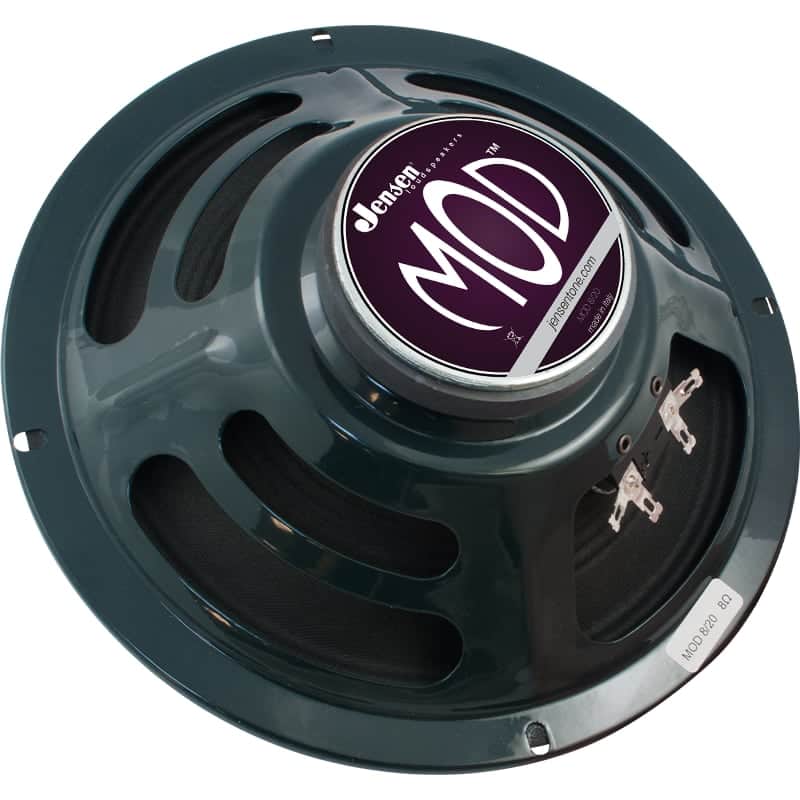

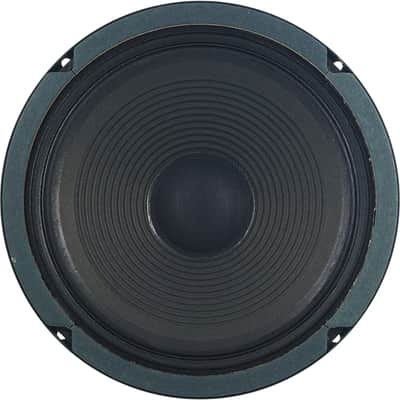

Speaker - Jensen® MOD®, 8", MOD8-20, 20W, Impedance: 8 Ω
Free Shipping
from Tempe, AZ
30-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
The Mod 8-20 is a 8" ferrite speaker with 20 watts of power. Straightforward tone with smooth highs and more predominant lows. It responds to overdrive distortion with a mellow fuzz overdrive.
The MOD® Speakers lineup is a collaborative effort with MOD® Electronics that provides musicians with a classic sounding speaker voicing that doesn't shy away from new technologies and modern advancements. Unbound from the restraints of producing an authentic reissue, Jensen® and MOD® have developed a new series of speakers that carefully blends the clarity of the vintage Americans with the forward, driving tone of their vintage British counterparts. The result is an extremely versatile sound that sits well in any mix, be it classic rock, blues, jazz, or contemporary genres.
Guitarist Description: Straightforward tone with smooth highs and more predominant lows. Responds to overdrive distortion with a mellow fuzz overdrive.
Bassist Description: Bright
- Lows: Loose/Fat
- Mids: Firm
- Highs: Smooth
- Overdrive: Smooth
Product Measurements
Diameter: 8 in.
Voice Coil Diameter: 1 in.
Depth: 2.874 in.
Outer Diameter: 8.1496 in.
Inner Diameter: 7.0275 in.
Mounting Hole Bolt Circle Diameter: 7.7559 in.
Magnet Assembly Diameter: 2.8346 in.
Mounting Hole Diameter: 0.1968 in.
Nominal Overall Diameter: 207.00 mm
Nominal Voice Coil Diameter: 25.00 mm
Flux Density: 1.00 T
Magnet Type: Ferrite
Voice Coil Winding Type: Copper
Voice Coil Former: Epotex
Cone Material: Paper
Surround Material: Integrated Paper
Dust Dome Material: Non-treated Cloth
Basket Material: Pressed Sheet Steel
Voice Coil DC Resistance (Re): 6.50 Ω
Resonance Frequency (ƒS): 119.40 Hz
Mechanical Q Factor (QMS): 19.88
Total Q Factor (QTS): 2.24
Mechanical Moving Mass (MMS): 10.30 g
Mechanical Compliance (CMS): 173.00 µm/N
Force Factor (BxL): 4.45 Wb/m
Equivalent Acoustic Volume (VAS): 11.10 liters
Linear Displacement, maximum (XMAX): 1.00 mm
Reference Efficiency (nO): 0.72 %
Diaphragm Area (SD): 213.80 cm2
Losses Electrical Resistance (RES): 51.10 Ω
Voice Coil Inductance @ 1 kHZ (LE): 0.40 mH
Rated Power: 20.00 W
Musical Power: 40.00 W
Sensitivity @ 1W, 1m: 93.20 dB
