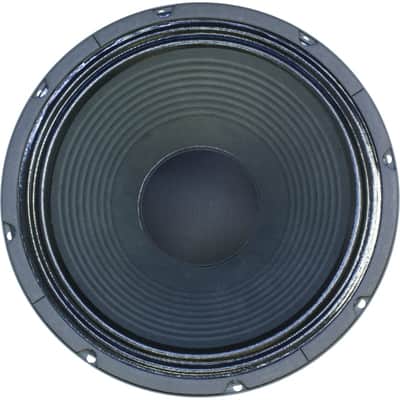

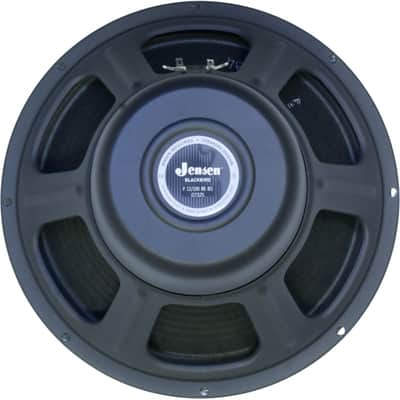

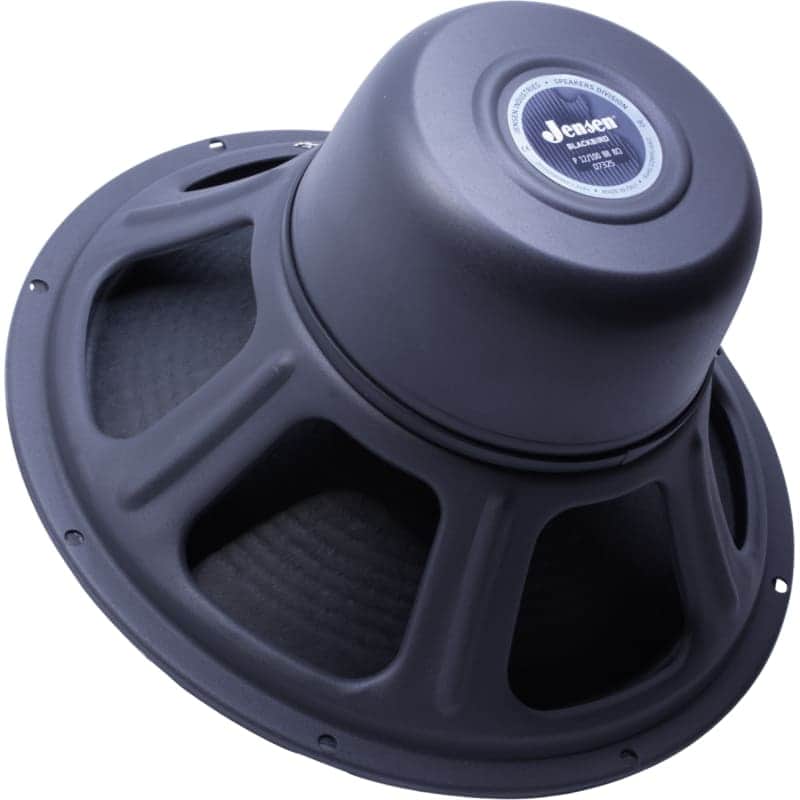

The Blackbird 12 is one of most revered speakers in the range. Not only does this AlNiCo guitar speaker have the highest (100W) power handling available, but it also offers the most refined tones. Powerful, warm bass range, balanced mids, sparkling highs, with both chime and smoothness. Excellent for the most high-end applications, where the details and the harmonic spread make a difference for the discerning users.

Guitarist Description: Extremely warm and smooth with a very rich, fat low-end and sparkling highs. Handles overdrive distortion by bringing out colorful detail and holding strong even at maximum crunch

• Lows: Fat
• Mids: Firm
• Highs: Smooth
• Overdrive: Smooth

Product Measurements

Diameter: 12 in.
Voice Coil Diameter: 2 in.
Depth: 6.9448 in.
Outer Diameter: 12.0866 in.
Inner Diameter: 10.9055 in.
Mounting Hole Bolt Circle Diameter: 11.5551 in.
Magnet Assembly Depth: 3.2047 in.
Mounting Hole Diameter: 0.2559 in.
Nominal Overall Diameter: 307.00 mm
Nominal Voice Coil Diameter: 50.00 mm
Flux Density: 1.00 T
Voice Coil Winding Depth: 10.00 mm
Magnetic Gap Depth: 8.00 mm
Magnet Type: Alnico
Voice Coil Winding Type: Aluminum
Voice Coil Former: Kapton
Cone Material: Paper
Surround Material: Integrated Paper
Dust Dome Material: Non-treated Cloth
Basket Material: Pressed Sheet Steel
Surround Treatment: Yes
Voice Coil DC Resistance (Re): 6.05 Ω
Resonance Frequency (ƒS): 95.20 Hz
Mechanical Q Factor (QMS): 10.84
Total Q Factor (QTS): 0.92
Mechanical Moving Mass (MMS): 29.50 g
Mechanical Compliance (CMS): 95.00 µm/N
Force Factor (BxL): 10.33 Wb/m
Equivalent Acoustic Volume (VAS): 32.40 liters
Linear Displacement, maximum (XMAX): 1.00 mm
Reference Efficiency (nO): 3.13 %
Diaphragm Area (SD): 490.90 cm2
Losses Electrical Resistance (RES): 82.70 Ω
Voice Coil Inductance @ 1 kHZ (LE): 0.59 mH
Rated Power: 100.00 W
Musical Power: 200.00 W
Sensitivity @ 1W, 1m: 97.70 dB
