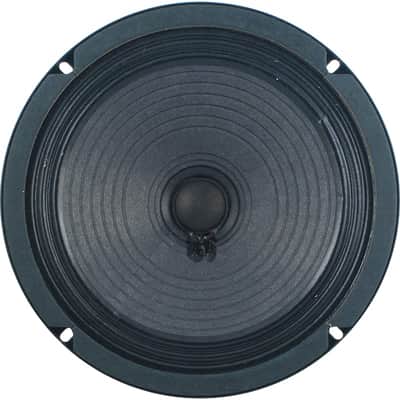

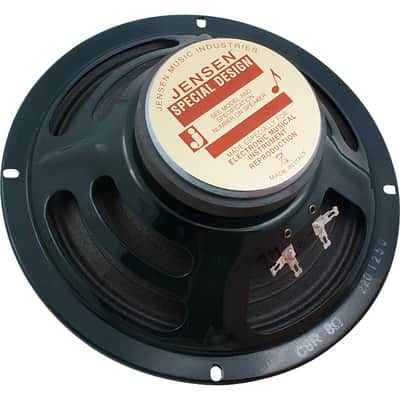

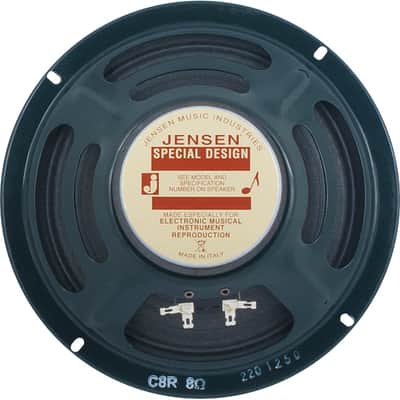

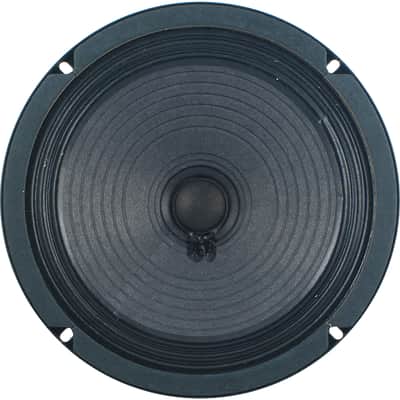

The C8R is the little gem in the Jensen Vintage series. It delivers a solid compact tone that defies its size. Extremely versatile, it finds application in small home and student amplifiers; but with a microphone in front, it is capable of transferring on tape some of the biggest tones ever. Not by chance, the vintage Fender® Champ® amplifiers produced with the C8R speaker are treasured by many players as a great studio tool.

Guitarist Description: Crystal clear tone with brightly shining highs. Responds to overdrive distortion with a bright fuzz lead voice.

• Lows: Tight
• Mids: Aggressive
• Highs: Bright
• Overdrive: Edgy

Product Measurements

Diameter: 8 in.
Voice Coil Diameter: 1 in.
Depth: 3.0629 in.
Outer Diameter: 8.1496 in.
Inner Diameter: 7.0275 in.
Mounting Hole Bolt Circle Diameter: 7.7559 in.
Magnet Assembly Diameter: 3.3858 in.
Magnet Assembly Depth: 0.8976 in.
Mounting Hole Diameter: 0.1968 in.
Nominal Overall Diameter: 207.00 mm
Nominal Voice Coil Diameter: 25.00 mm
Flux Density: 1.00 T
Voice Coil Winding Depth: 4.00 mm
Magnetic Gap Depth: 6.00 mm
Magnet Type: Ferrite
Voice Coil Winding Type: Copper
Voice Coil Former: Kapton
Cone Material: Paper
Surround Material: Integrated Paper
Dust Dome Material: Solid Paper
Basket Material: Pressed Sheet Steel
Surround Treatment: Yes
Voice Coil DC Resistance (Re): 6.73 Ω
Resonance Frequency (ƒS): 126.00 Hz
Mechanical Q Factor (QMS): 10.29
Total Q Factor (QTS): 1.80
Mechanical Moving Mass (MMS): 9.00 g
Mechanical Compliance (CMS): 176.00 µm/N
Force Factor (BxL): 4.70 Wb/m
Equivalent Acoustic Volume (VAS): 11.40 liters
Linear Displacement, maximum (XMAX): 1.00 mm
Reference Efficiency (nO): 1.03 %
Diaphragm Area (SD): 213.80 cm2
Losses Electrical Resistance (RES): 37.00 Ω
Voice Coil Inductance @ 1 kHZ (LE): 0.43 mH
Rated Power: 25.00 W
Musical Power: 50.00 W
Sensitivity @ 1W, 1m: 93.00 dB
