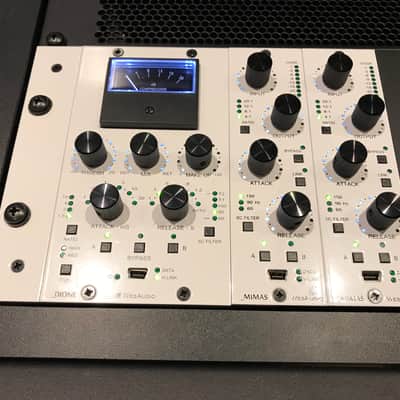

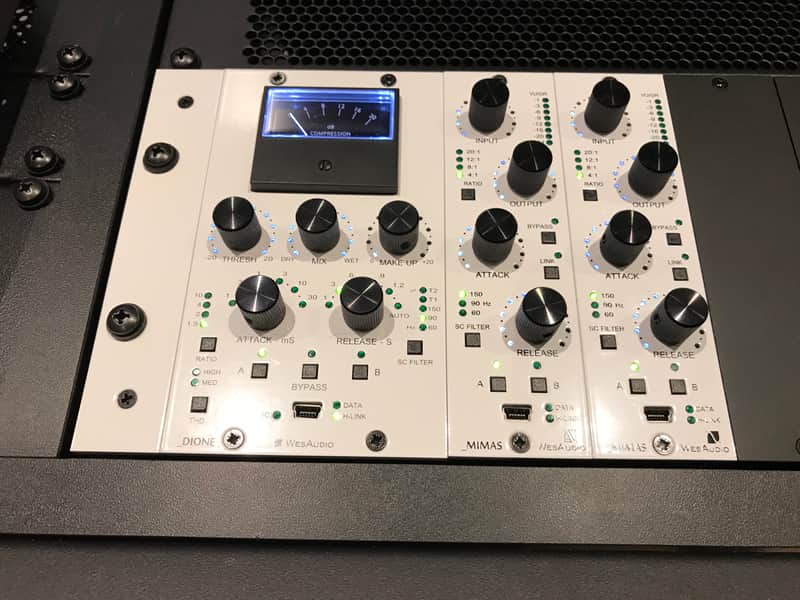

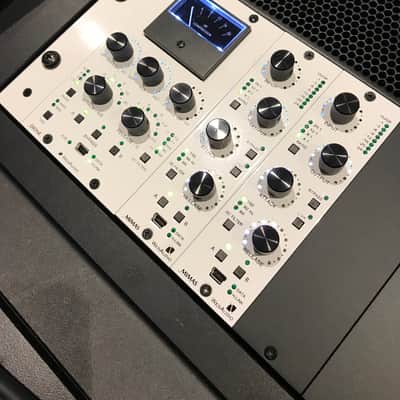

WesAudio DIONE NG500 Analog Bus Compressor with Digital Recall

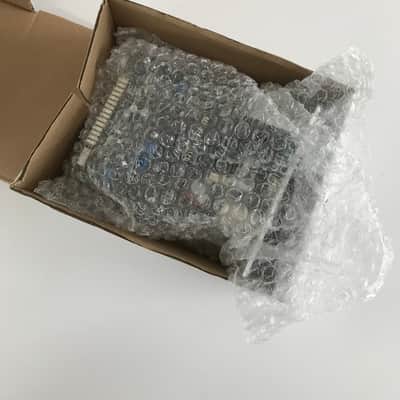

Bought only for testing and it's good as new. Inclusive original invoice from Digital Audio Service. Feel free to contact me if you have any further questions.

I'm also selling in my shop "WESAUDIO TITAN" and "WESAUDIO MIMAS"

• famous bus compressor design with usage of best analogue components,
• compatible with GCon – innovative High-speed USB/Ethernet protocol,
• digitally controlled and isolated analog circuit
• direct USB connection to control analogue device with usage of VST2/VST3/AAX plugins.
• hardware A/B settings switch,
• digital sidechain – side chain signal can be sent from the plugin itself (DAW) to the compressor,
• 3 touch sensitive encoders allow record automation of particular parameters (Threshold, Mix, Make Up) in DAW,
• true bypass
• accurate analogue GR meter and its precise simulation implemented in the plug-in itself,
• THD – harmonic distortion with two modes (Medium & High),
• Mix knob which allows parallel compression,
• free software and firmware upgrades,
• +24dBu of headroom

Specifications

• Frequency response: 20Hz-20kHz (0.1dB)
• THD+N (WET): 0.008% (1kHz,0dBu)
• THD+N (DRY): 0.004% (1kHz,0dBu)
• Input impedance: 10kohm
• Output impedance: <100ohm
• Max gain: 21dB
• Crosstalk:
• < -90dB
• Attack: 0.1,0.3,1,3,10,30 (ms)
• Release: 0.1,0.3,0.6,0.9,1.2,Auto (s)
• Ratio: 1.5,2.4.10
• SC Filter: 60,90,150,T1,T2
• THD (MID switch): 1%
• THD (HIGH switch): 4%
