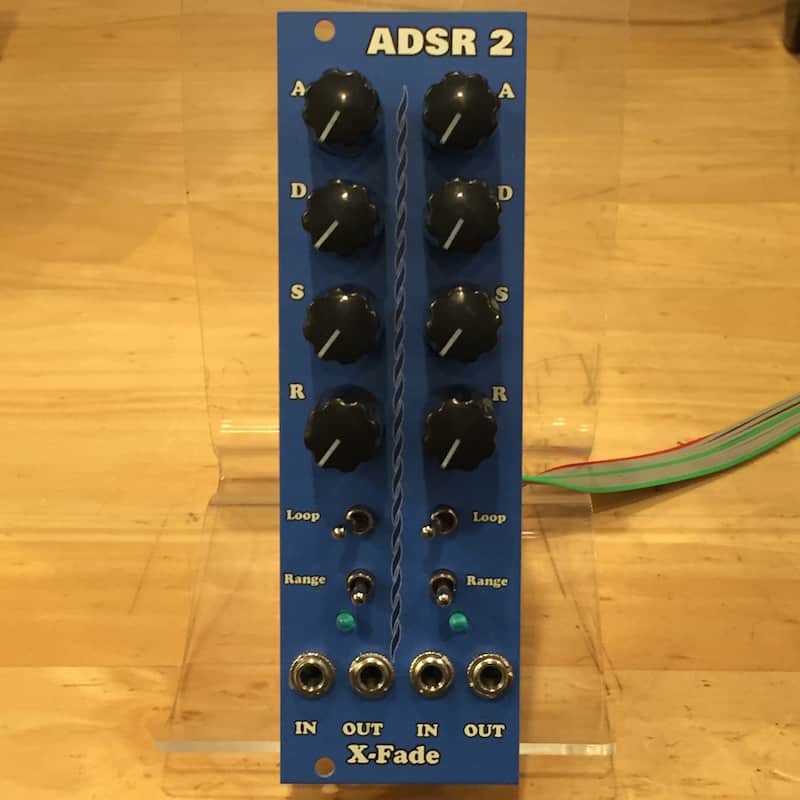

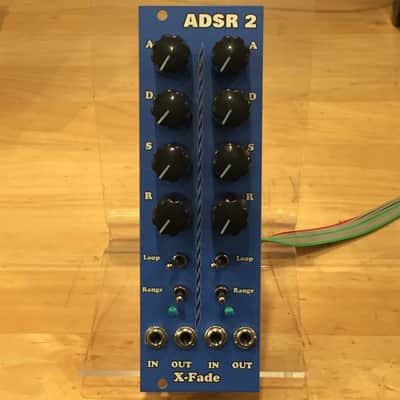

X-Fade Modular ADSR 2

ADSR2 is a dual envelope generator module with two ADSRs.

■About Features
・ADSR knob
Set each time level.

・Loop Switch
When on, Env is repeated while the gate signal is input.
Set all the ASR knobs to 0 and gradually turn the D knobs to see the effect clearly.

・3 Position Range Switch
Switches the ADR time range in three steps from the right: High/Low/Mid.
*There may be slight differences in the speed of the two channels due to the individual component differences.

・In/Out Jack
Gate input and Env output jacks
The gate in of the left channel is sent the same gate signal when nothing is stuck in the gate jack of the right channel due to the internal connection.

Width 8HP
Depth 28mm

Operation manual not included.
As this is a full handmade product, please be aware that there may be small scratches or paint baldness on the panel.
