SYNTON SYNTHOVOX SPX 216 1985

This unit is completely original and unique. the device is tuned to specs for pro-studio use. This device has many features that you will not find in vocoders 221 and 222 synthon. The special effect of the processor vocoder, a very versatile and complex technical device, has many parts inside and is a complicated technical product, it is really an innovative synth device of the corporation that is unique in our day . this is an old technology but still very large and steep device, for collectors and gourmets of this high-end sound. a lot of special analog complex tricks and effects you can do with it, as well as an excellent vocoder.

Model:         Syntovox SPX 216
Bands:         14
Size:           1 HE
Features:     Stereo out , all CV's available on rear connector, VCO, noise, carrier distortion, formant shift.

Our last model which was produced.

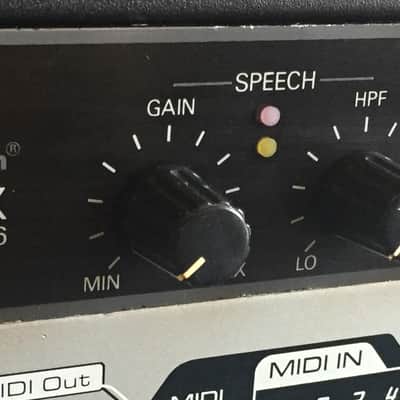

We included many new features like stereo output and a variable high pass filter for speech input.
Suited for live as well as studio use.

The yellow pushbuttons  electronic switching.

Left button, carrier select:

Carrier input (LEDs off)

Speech distortion

Internal VCO, sawtooth wave

Internal VCO, PWM wave

Middle button, formant shift:

Up formant (analizer 123... -> synthesizer 234...)

Normal formant (analizer 123... -> synthesizer 123...)

Down formant (analizer 234... -> synthesizer 123...)

External patching through rear connector, no internal connections (LEDs off)

Right button, output:

Bypass

Vocoder

Vocoder + bypass

To the foreigners, be aware that the unit is in 220VAC.
