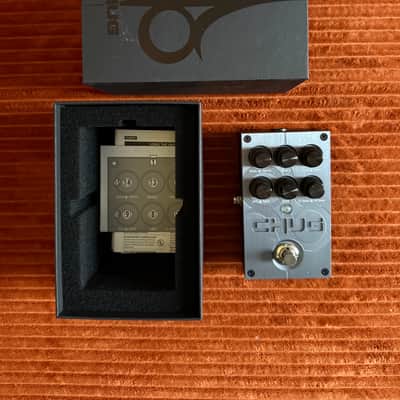

Solar Guitars CHUG - High Gain Pre-Amp with Noise Gate

For your consideration is a Solar Guitars Ola Englund signature CHUG pedal that I may have used one time. It’s in perfect working order and only used in my home studio once or twice. I just use a quad cortex pretty much for everything so it’s time to have this move on to its new happy owner.

Will ship USPS once payment received. Info from Solar’s website is below. Thanks for looking!

PEDAL TYPEGAIN/DISTORTION POWER CONNECTORS5.33MM BARREL POWER SUPPLY INCLUDEDINCLUDED POWER SUPPLYCPS9V500 (NOT INCLUDED) INPUT VOLTAGE100-240 50/60HZ OUTPUT VOLTAGE9 VOLTS DC CURRENT DRAW85MA BATTERYNONE INPUT JACK1/4'' OUTPUT JACK1/4'' WATTAGEN/A GATEYES SPEAKERN/A INPUT OHM1 MΩ OUTPUT OHM260Ω OUTPUT LEVEL5 DBU EQBASS -TREB - MID - DEPTH - PRESENCE BYPASSBUFFERED BYPASS TEST REFERENCE LEVEL0 DBU = 0.775 VRMS ADDITIONAL FUNCTIONSINPUT LF/HF GAIN FILTER WEIGHT.06 KG. (1 LB.) DIMENSIONS120MM X 70MM (4.72 X 2.75 INCHES ) COUNTRY OF ORIGINCHINA

TESTED AND APPROVED 3RD PARTY POWER SUPPLIES

BOSSPSA(XXX)SDUNLOPECB-003DIGITECHPS0913DC-01VOODOO LABSPEDAL POWER SERIES (9VOLTS ONLY !)

The CHUG pedal circuit has been optimally voiced as a “pre-amp”. This means that it is designed to take the place of the High Gain preamplifier circuit channel in a guitar amplifier. The signal starts by passing through a network of High Frequency and Low Frequency filters while offering the ability to add an enormous amount of Gain and overdrive. Equalization options are extensive with Bass, Middle and Treble controls preceding Depth and Presence for true amplifier feel. A keenly programmed noise Gate fed by the input signal and indicated by change in color of the LED is followed by the output that works like a master volume. It is housed in an all metal “built like a tank” enclosure with top quality jacks and switches. Power supply is not included (9VDC 100MA minimum). The sound, flexibility and overall style has been supremely tailored for maximum CHUG!
