Alpine KTA-450 + S2-S80C 4-Channel Amplifier 8" Component Speaker + Accessory Bundle

Alpine KTA-450 + S2-S80C 4-Channel Power Pack Amplifier, 8" Component Speaker & Absolute Car Audio Accessory Bundle Upgrade your car audio system with this Alpine and Absolute USA performance bundle featuring the compact Alpine KTA-450 4-channel Class-D Power Pack amplifier, Alpine S2-S80C Next-Generation S-Series 8-inch component speakers, Absolute TW500 Super Tweeters, BT1700 electrical tape, and a universal mobile phone holder. This package combines compact amplifier power, Hi-Res Audio Certified speakers, enhanced high-frequency output, and useful installation accessories in one complete system. General Features

• Alpine KTA-450 4-Channel Class-D Power Pack Amplifier
• Alpine S2-S80C 8" Component Speaker System
• Hi-Res Audio Certified Speaker Design
• Absolute TW500 Super Tweeters
• Absolute BT1700 Electrical Tape
• Universal Mobile Phone Holder
• Compact Space-Saving Amplifier Design
• Dynamic Peak Power Technology
• 50 Watts RMS x 4 at 4 Ohms
• 45 Watts RMS x 4 at 2 Ohms
• Up to 100 Watts Dynamic Peak Power x 4
• 8" S-Series Component Woofers
• 1" Component Tweeters
• In-Line Crossovers
• Frequency Response up to 40kHz
• H.A.M.R. Surround Technology
• Designed for Custom Car Audio Installations

Alpine KTA-450 4-Channel Power Pack Amplifier The Alpine KTA-450 is a compact Class-D amplifier designed to add substantial power to a vehicle audio system without the installation space normally required by a traditional amplifier. Measuring approximately 7" wide x 3.5" high x 1.25" deep, it can be installed in tight locations such as behind a compatible radio or inside other limited-space areas. Alpine Dynamic Peak Power

• Alpine DPP – Dynamic Peak Power Technology
• Delivers Additional Output During Dynamic Musical Passages
• Up to 100 Watts x 4 Dynamic Peak Power
• Designed to Improve Musical Impact Without a Large Amplifier Chassis

KTA-450 Power Output

• 50 Watts RMS x 4 at 4 Ohms @ 14.4V
• 45 Watts RMS x 4 at 2 Ohms @ 14.4V
• 100 Watts Dynamic Peak Power x 4 at 4 Ohms
• 100 Watts Dynamic Peak Power x 4 at 2 Ohms

KTA-450 Amplifier Specifications

• Amplifier Type: 4-Channel Class-D
• THD at 10W / 4 Ohms: Less Than 0.2%
• THD at 10W / 2 Ohms: Less Than 0.1%
• THD at Rated Power / 4 Ohms: Less Than 0.1%
• THD at Rated Power / 2 Ohms: Less Than 0.1%
• Signal-to-Noise Ratio: Greater Than 85dB at 1W / 4 Ohms
• Frequency Response: 15Hz-50kHz, +0/-3dB
• RCA Input Sensitivity: 0.152-2.80V
• Speaker-Level Input Sensitivity: 0.33-6.05V
• Crossover: Variable HPF / LPF
• Crossover Settings: Off / 60Hz / 80Hz / 120Hz
• Dimensions: 7"W x 3.5"H x 1.25"D
• Weight: Approximately 1.3 lb
• PowerStack Compatible

Compact Installation Design

• Compact Power Pack Chassis
• Designed for Space-Limited Installations
• Recessed 22-Pin Harness Connection
• Helps Reduce Wiring Bulk
• Includes PowerStack Mounting Hardware for Compatible Applications
• Alpine iLX-W650 Receiver Sold Separately

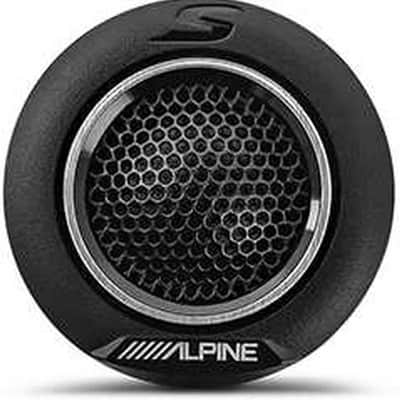

Alpine S2-S80C Next-Generation S-Series 8" Component Speakers The Alpine S2-S80C component speaker system is designed for detailed, powerful sound reproduction with Hi-Res Audio capability. The 8-inch woofers use a lightweight composite cone incorporating polypropylene, glass fiber, and mica materials to help deliver strong output with low distortion. S2-S80C Speaker Features

• Next-Generation Alpine S-Series
• 8" Component Woofer System
• 1" Component Tweeters
• Hi-Res Audio Certified
• Frequency Response up to 40kHz
• Up to 85 Watts RMS Power Handling
• Up to 260 Watts Peak Power
• Polypropylene, Glass Fiber & Mica Cone Construction
• H.A.M.R. High-Amplitude Multi-Roll Surround
• In-Line Crossovers
• Threaded Removable Tweeter Housings
• Designed for Flexible OEM-Style Installation

H.A.M.R. Surround Technology Alpine's High-Amplitude Multi-Roll surround design allows increased cone movement while helping maintain control at higher output levels.

• Increased Woofer Excursion
• Designed for Stronger Bass Response
• Helps Maintain Accurate Cone Movement
• Built for Higher Output & Reduced Distortion

S2-S80C Specifications

• Woofer Size: 8"
• Tweeter Size: 1"
• Speaker Type: Component System
• RMS Power Handling: Up to 85 Watts
• Peak Power Handling: Up to 260 Watts
• Frequency Response: 50Hz-40kHz
• Certification: Hi-Res Audio Certified
• Cone Material: Polypropylene, Glass Fiber & Mica
• Surround Type: H.A.M.R.
• Crossovers: In-Line
• Tweeter Housing: Threaded & Removable

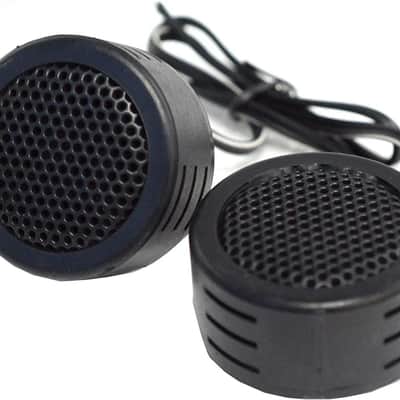

Absolute TW500 Super Tweeters Add additional high-frequency presence to the system with the included Absolute TW500 Super Tweeters.

• One Pair of Super Tweeters
• High-Efficiency High-Frequency Design
• Compact Construction
• Suitable for Custom Automotive Audio Systems
• Designed to Add Brighter High-Frequency Output

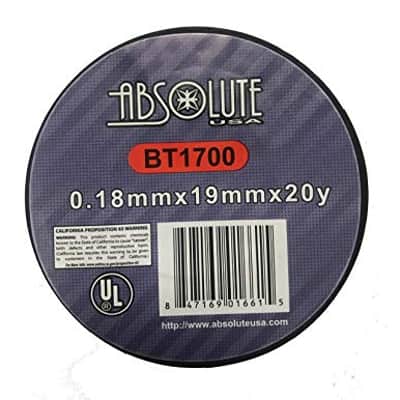

Absolute BT1700 Electrical Tape The included Absolute BT1700 electrical tape is useful for insulating, securing, and organizing wiring during compatible automotive audio installations.

• Automotive Electrical Tape
• High-Adhesion Design
• Flexible PVC Construction
• Heat-Resistant Design
• Suitable for Car Audio Wiring & Installation

Universal Mobile Phone Holder The included universal phone holder provides a convenient way to position a compatible smartphone inside the vehicle.

• Universal Smartphone Compatibility
• Adjustable Viewing Angle
• Secure Grip Design
• Suitable for Navigation & Music Control
• Convenient In-Vehicle Mounting

What's in this Package

• (1) Alpine KTA-450 4-Channel Power Pack Amplifier
• (1) Alpine S2-S80C Next-Generation S-Series 8" Component Speaker Set
• (1 Pair) Absolute TW500 Super Tweeters
• (1) Absolute BT1700 Electrical Tape
• (1) Universal Mobile Phone Holder

Installation Notes

• Verify speaker size, mounting depth, impedance, and vehicle compatibility before installation.
• The Alpine KTA-450 includes the manufacturer-supplied power/input/output harness and mounting hardware.
• The Alpine S2-S80C includes its component tweeters and in-line crossovers as part of the speaker system.
• Additional wiring, speaker adapters, mounting brackets, amplifier integration equipment, or vehicle-specific accessories may be required.
• PowerStack compatibility applies to supported Alpine receiver installations.
• Professional installation is recommended for best performance and proper system integration.
