Alpine iLX-407+S2-S65C+TW500+BT1700 7-Inch Multimedia Receiver Apple Carplay and Android Auto &1 Pair Type S 6.5" Component Speakers + Accessory Bundle

Alpine iLX-407 7" Apple CarPlay / Android Auto Multimedia Receiver + S2-S65C 6.5" Component Speakers + Absolute Accessory Bundle Upgrade your vehicle with the Alpine iLX-407 7-inch multimedia receiver and Alpine S2-S65C Next-Generation S-Series 6.5-inch component speaker system. This bundle combines Apple CarPlay, Android Auto, Bluetooth, HD Radio, HDMI connectivity, advanced audio tuning, and shallow-chassis installation with Hi-Res Audio Certified component speakers engineered for detailed highs, clean midrange, and strong bass performance. General Features

• Includes Alpine iLX-407 7" Multimedia Receiver
• Includes (1 Pair) Alpine S2-S65C 6.5" Component Speakers
• Apple CarPlay Compatible
• Android Auto Compatible
• Built-In Bluetooth
• Built-In HD Radio
• SiriusXM-Ready
• HDMI Input
• USB Input
• Two RCA Camera Inputs
• Rearview Camera Distance Guide
• iDatalink Maestro Compatible
• 7" Anti-Glare WVGA Touchscreen
• Shallow 2-6/16" Mounting Depth
• 24-Bit DAC
• Three Sets of 4V RCA Preamp Outputs
• 5-Band Graphic Equalizer
• 6-Channel Time Correction
• High-Pass & Low-Pass Crossovers
• MediaXpander
• PowerStack Capable
• Hi-Res Audio Certified Component Speakers
• 6.5" Woofers
• Separate 1" Tweeters
• Frequency Response up to 40 kHz
• Alpine H.A.M.R. Surround Technology
• Polypropylene, Glass Fiber & Mica Cone Construction
• Includes Absolute TW500 Super Tweeters
• Includes Absolute BT1700 Electrical Tape
• Includes Absolute Universal Mobile Phone Holder

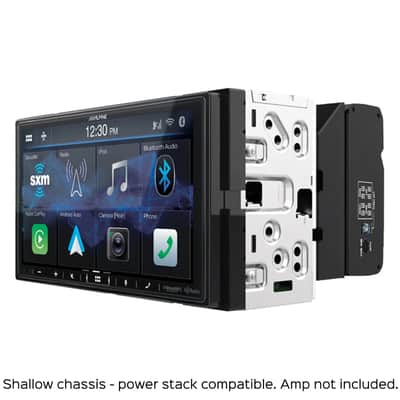

Alpine iLX-407 7" Multimedia Receiver The Alpine iLX-407 is a shallow-chassis Double-DIN multimedia receiver designed for modern smartphone integration and flexible system expansion. Its 7-inch anti-glare touchscreen provides convenient control of compatible smartphone features, entertainment sources, cameras, and audio settings. Display Features

• 7" Anti-Glare Touchscreen
• WVGA 800 x 480 Resolution
• Double-DIN Design
• Shallow 2-6/16" Mounting Depth
• Customizable User Interface
• Customizable Wallpaper
• Up to 29 Available Widgets / Apps
• Width: 7"
• Height: 4"
• Depth: 2-6/16"

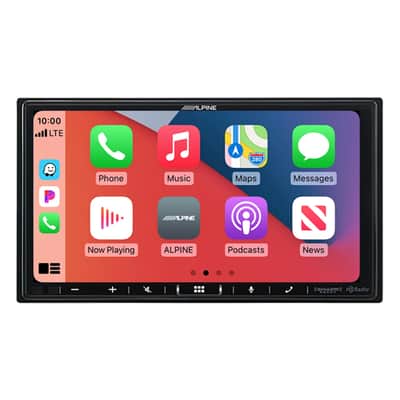

Apple CarPlay & Android Auto Connect a compatible smartphone to access supported navigation, calls, messages, music, and applications through the Alpine touchscreen.

• Apple CarPlay Compatible
• Android Auto Compatible
• Google Assistant through Android Auto
• Compatible Smartphone Navigation
• Calling & Messaging Access
• Music & Streaming Applications

Bluetooth & Entertainment

• Built-In Bluetooth
• Hands-Free Calling
• Wireless Audio Streaming
• Built-In HD Radio
• HDMI Input
• USB Input
• SiriusXM-Ready
• SXV300 SiriusXM Tuner Sold Separately
• SiriusXM Subscription Required

Advanced Audio Performance The iLX-407 provides flexible sound adjustment for building a customized car audio system.

• Built-In Amplifier: 16 Watts RMS x 4
• Maximum Output: 50 Watts x 4
• 24-Bit DAC
• 5-Band Graphic EQ
• 6-Channel Time Correction
• Subwoofer Level Control
• High-Pass Crossover
• Low-Pass Crossover
• MediaXpander
• CTA-2006 Compliant

Three 4V RCA Preamp Outputs

• Front 4V RCA Output
• Rear 4V RCA Output
• Subwoofer 4V RCA Output
• Designed for External Amplifier Expansion

Camera Integration

• Two RCA Camera Inputs
• Rear Camera Support
• Front Camera Support
• Rearview Camera Distance Guide
• Compatible with Select Aftermarket Camera Systems

iDatalink Maestro Compatibility The iLX-407 supports compatible iDatalink Maestro interfaces for retaining and displaying select factory vehicle features when used with the correct vehicle-specific integration module. PowerStack Capability The shallow receiver chassis supports Alpine PowerStack configurations with select compact Alpine amplifiers. Compatible Amplifiers Include:

• Alpine KTA-450 – Sold Separately
• Alpine KTA-200M – Sold Separately

Multimedia Playback Audio Formats

• AAC
• FLAC
• MP3
• WMA
• WAV

Photo Formats

• JPG
• PNG
• BMP

Video Formats

• AVI
• MP4
• MPG
• MOV
• WMV

Alpine S2-S65C 6.5" Component Speaker System The Alpine S2-S65C Next-Generation S-Series component speaker set combines 6.5-inch woofers with separate 1-inch tweeters for improved soundstage placement and detailed high-frequency reproduction. Hi-Res Audio Certification supports frequencies up to 40 kHz for clean, detailed playback with compatible audio sources. S2-S65C Features

• 6.5" Component Speaker System
• One Pair of Speakers
• 6.5" Woofers
• Separate 1" Component Tweeters
• 240 Watts Maximum Peak Power
• 80 Watts Maximum RMS Power
• Frequency Response: 70 Hz-40 kHz
• Hi-Res Audio Certified
• Polypropylene, Glass Fiber & Mica Cone Construction
• Alpine H.A.M.R. Surround Technology
• Threaded Removable Tweeter Housings
• In-Line Crossovers
• Designed for OEM-Style Fitment
• Compatible with Alpine KTE-S65G Grilles
• KTE-S65G Grilles Sold Separately

Hi-Res Audio Certified Performance The S2-S65C is designed to reproduce frequencies extending to 40 kHz, helping deliver detailed high-frequency performance when paired with compatible high-resolution audio sources and electronics. Polypropylene, Glass Fiber & Mica Cone The woofer cone combines polypropylene, glass fiber, and mica materials to create a lightweight and rigid structure designed for strong output, controlled cone movement, and reduced distortion. Alpine H.A.M.R. Surround Technology Alpine High-Amplitude Multi-Roll surround technology allows increased cone excursion while maintaining control, helping the S2-S65C produce stronger and more accurate mid-bass response. Separate 1" Tweeters The included 1-inch tweeters use threaded removable housings for flexible mounting and placement. Separating the tweeters from the woofers can help create improved imaging and a more focused front soundstage. S2-S65C Specifications Feature Specification Model S2-S65C Speaker Type 6.5" Component System Quantity 1 Pair Woofer Size 6.5" Tweeter Size 1" Maximum RMS Power 80 Watts Maximum Peak Power 240 Watts Frequency Response 70 Hz-40 kHz Hi-Res Audio Certified Yes Cone Material Polypropylene / Glass Fiber / Mica Surround H.A.M.R. Tweeter Housing Threaded Removable Crossovers In-Line Optional Grille KTE-S65G Absolute TW500 Super Tweeters The included Absolute TW500 Super Tweeters are designed to add additional high-frequency output and sound presence to compatible custom automotive audio systems. TW500 Features

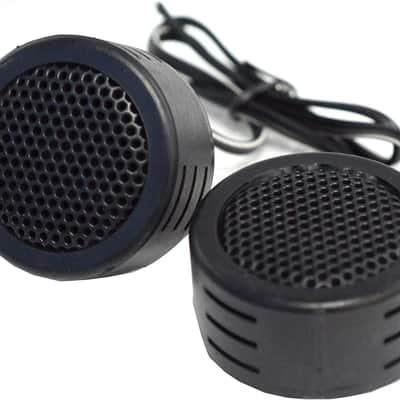

• Pair of Super Tweeters
• High-Efficiency High-Frequency Design
• Compact Construction
• Factory & Aftermarket Audio Compatible
• Designed for Custom Car Audio Installations

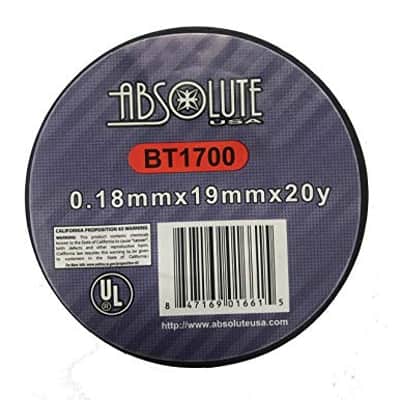

Absolute BT1700 Electrical Tape The included Absolute BT1700 electrical tape provides a convenient installation accessory for insulating, securing, and organizing compatible automotive wiring. BT1700 Features

• Automotive Electrical Tape
• High-Adhesion Design
• Heat Resistant
• Flexible PVC Construction
• Ideal for Car Audio Installation Wiring

Absolute Universal Mobile Phone Holder The included universal mobile phone holder provides a convenient mounting solution for keeping a compatible smartphone accessible for navigation, music, and everyday use. Phone Holder Features

• Universal Smartphone Compatibility
• Adjustable Viewing Angle
• Secure Grip Design
• Convenient In-Vehicle Installation

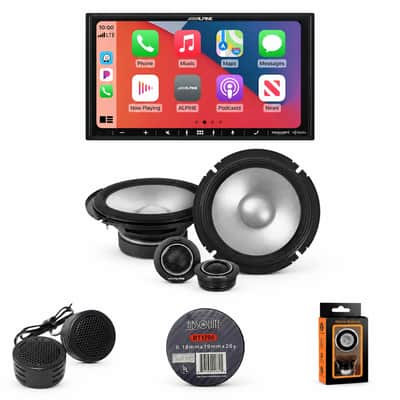

What's in this Package

• (1) Alpine iLX-407 7" Multimedia Receiver
• (1 Pair) Alpine S2-S65C 6.5" Component Speakers
• (1 Pair) Absolute TW500 Super Tweeters
• (1) Absolute BT1700 Electrical Tape
• (1) Absolute Universal Mobile Phone Holder

Installation Notes

• Verify vehicle dash opening and Double-DIN compatibility before installation.
• Vehicle-specific dash kits, wiring harnesses, antenna adapters, steering wheel control interfaces, or amplifier integration modules may be required.
• Speaker fitment varies by vehicle. Verify mounting diameter, mounting depth, bolt pattern, and available clearance before installation.
• The S2-S65C requires installation of the separate tweeters and in-line crossovers.
• The iLX-407 built-in amplifier can power compatible speakers, and you may add an appropriately matched external amplifier for greater output.
• SiriusXM requires a compatible SXV300 tuner and active subscription, sold separately.
• iDatalink Maestro functionality requires a compatible Maestro interface and vehicle-specific installation components.
• Professional installation is recommended.

California Proposition 65 Warning This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
