Bright Onion Pedals Custom Active Remote A/B/Y Switcher - TRS Control - 2023

Up for sale is a custom Bright Onion Pedals active remote A/B/Y switcher in Excellent condition.

This unit was custom-built to provide remotely controlled A/B/Y routing through a TRS switching connection. It can route one input to Output A, Output B, or both outputs together, while allowing the switching state to be controlled from a compatible external switching system.

I originally commissioned it so my pedalboard controller could recall amp-routing states automatically when changing presets. I used it with a One Control Caiman Tail Loop, but the box itself is not specific to the Caiman; its remote control is handled through the TRS switching jack.

Remote Switching

• TRS remote-control connection
• Tip switches between Output A and Output B
• Ring engages BOTH outputs
• Three status LEDs: A, BOTH, and B

Signal Routing and Construction

• Active A/B/Y design
• Output B is routed through an isolation transformer
• Phase control for Output B
• Ground Lift control for Output B
• Aluminum enclosure
• Neutrik jack sockets
• Approximately 80 mA current draw at 9V
• Enclosure dimensions: approximately 110 x 60 x 31 mm

The builder described the active design as preventing signal loss when the input is split to both outputs. The transformer-isolated B output was incorporated to help prevent ground-loop hum when running two amplifiers.

Connections

• Input
• Output A
• Output B
• Remote TRS
• 9V DC power input

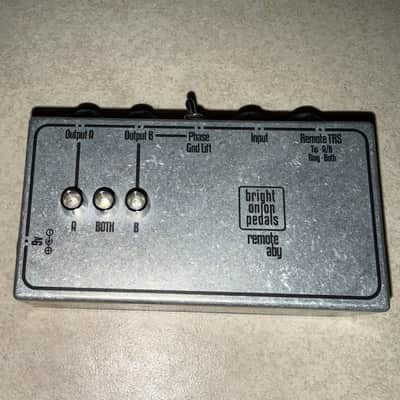

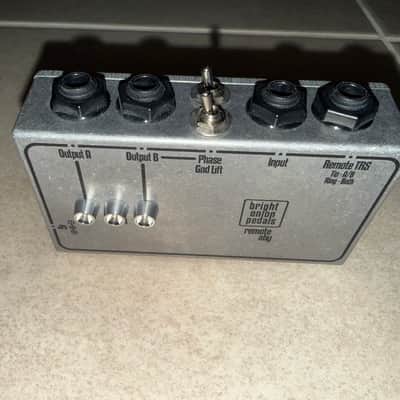

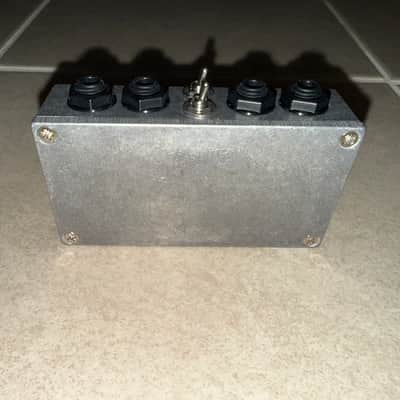

The unit is in Excellent condition and was custom-built by Bright Onion Pedals. Please review the photos carefully for the exact physical condition and control layout.

This is a useful solution for a dual-amp rig where A/B/Y routing needs to be recalled remotely rather than switched manually at the box.
