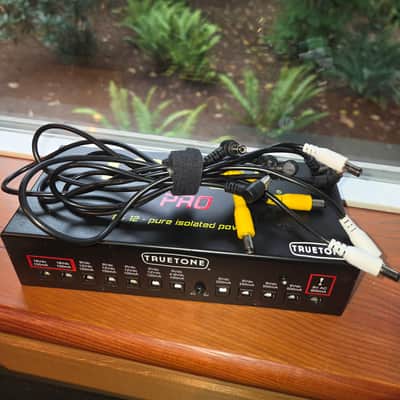

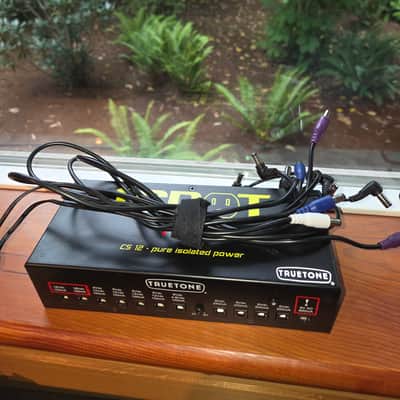

Includes all cables PLUS

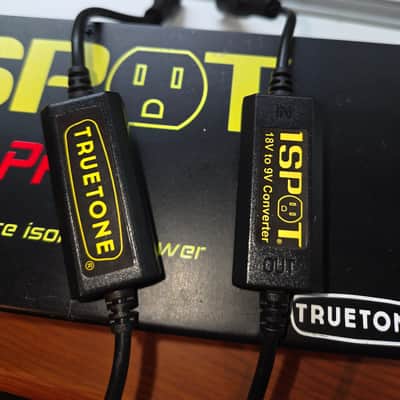

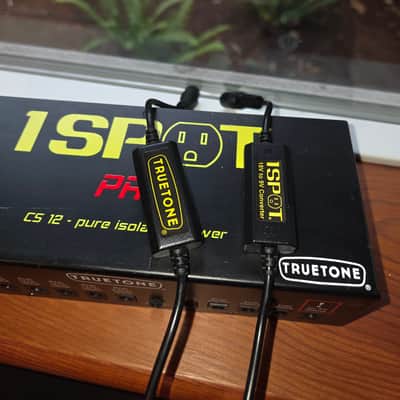

Two 18v to 9v converters so all 12 spots can be used with 9v pedals.

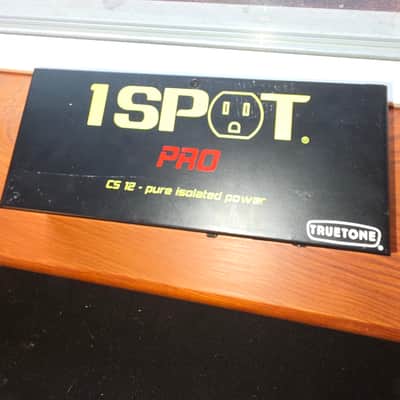

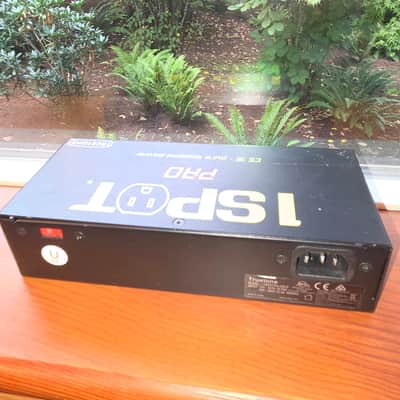

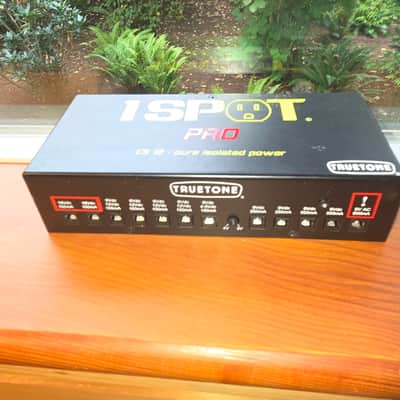

Truetone 1 SPOT PRO CS12 12-output Isolated Guitar Pedal Power Supply

1 SPOT Technology… what does that mean and why should you care? Technically, it’s switching power supply technology, which is very different than what anyone has ever put inside a power brick. Normally, you would find just a big transformer and a handful of small electronic components inside a power brick… old tech that hasn’t changed in decades and has a lot of limitations. Truetone took the same triple filtered switching power supply technology found in their famous 1 SPOT and scaled it up to make the 1 SPOT Pro models. With much more space to work with, they were able to completely eliminate noise, provide total electrical isolation between outputs, create multiple voltages, and still give you the ability to use it anywhere in the world.

A major benefit of using a switching power supply is that it can handle far more current (power being pulled out of it) than any transformer-based power supply.

Because not all guitar pedals run off 9V power, the 1 SPOT Pro CS12 has outputs that can put out 9VDC, 12VDC or 18VDC. There's even a variable voltage output for old-style fuzz pedals, and a 9VAC output for certain Line 6 and Digitech pedals. And if you need to change the voltage of an output, Truetone also makes inexpensive converter cables to help you.

Highlights

• 12 fully isolated outputs

• 5 voltage options provide power for virtually any effect pedal

• Variable 4-9Vdc, 12 Vdc, 18 Vdc, 9Vdc and 9Vac

• Includes brackets for mounting under Pedaltrain® pedalboards

• Cables and converter plugs included

• Switchable Worldwide Input Voltage

Specifications

• Type: Pedalboard Power Supply

• Inputs: 120V AC Standard IEC cable

• Outputs: 2 x 9V 250mA, 2 x 9V 500mA, 2 x 18V 100mA, 1 x 9V AC 800mA, 4 x 9V/12V 100mA, 1 x 4V-9V 100mA

• Maximum Output Current: 3000mA

• Connectivity: 2.1mm barrel connectors, 3.5mm mini plug, 9V battery clip
  Isolated Output: Yes

• Features: Switched-mode power supply
