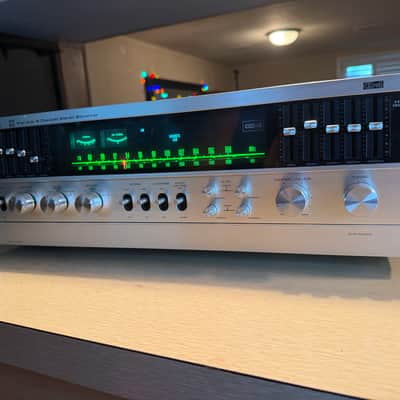

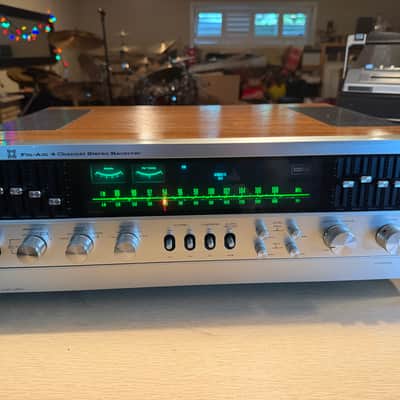

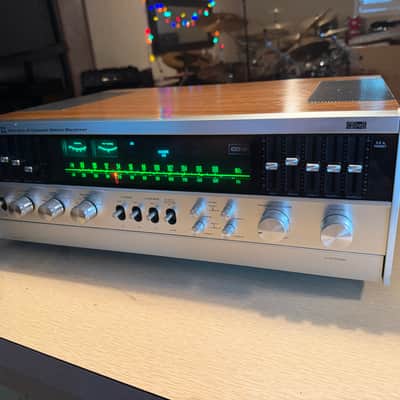

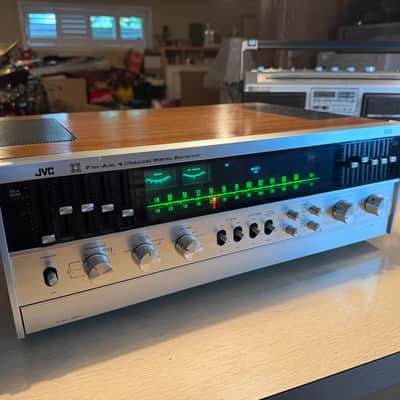

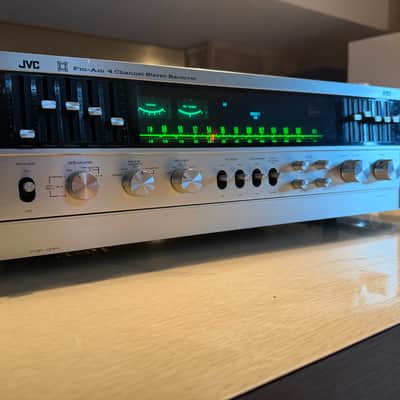

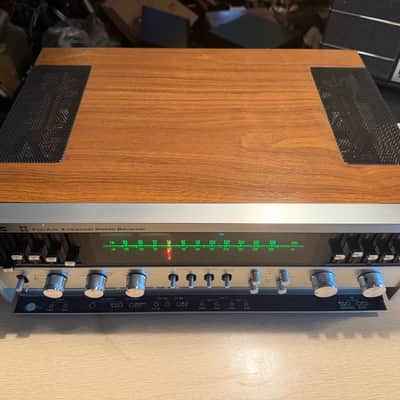

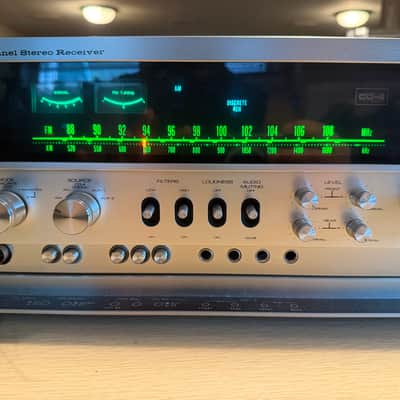

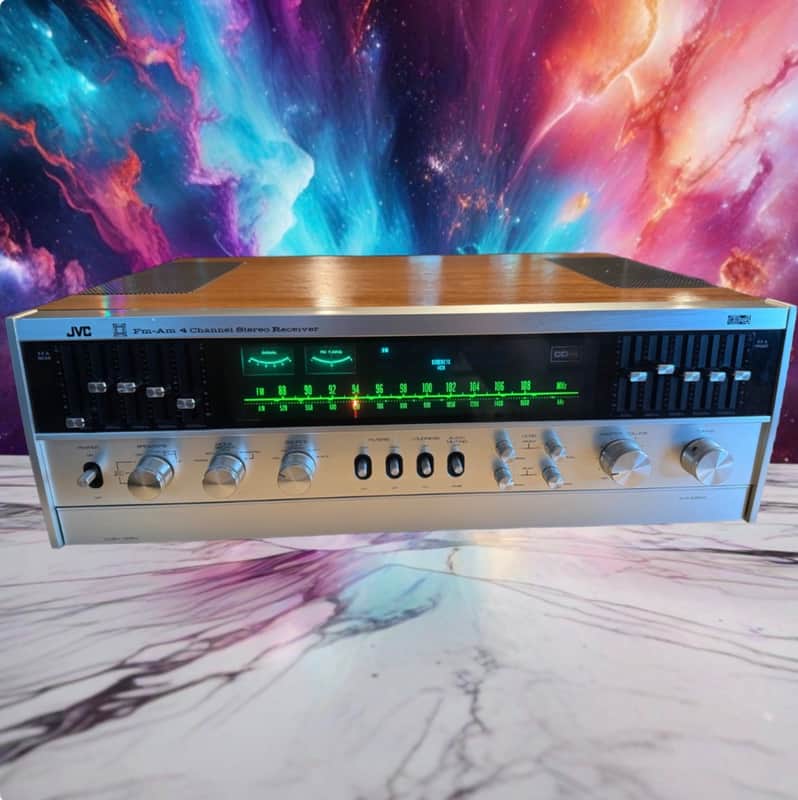

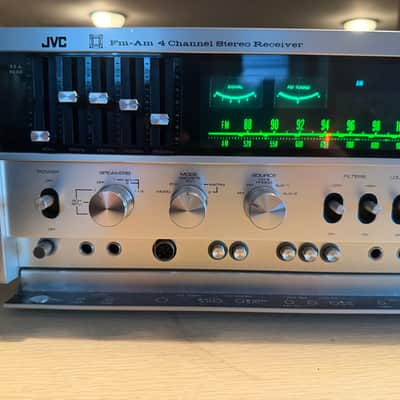

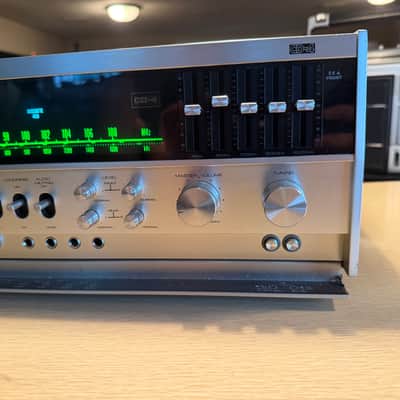

JVC 4VR-5456 Fm-Am4 Channel Receiver Amp 100Wpc MONSTER Serviced V Rare N Mint🔥

*US* BUYERS IGNORE MESSAGE ABOVE SAYING THERE IS TARIFFS FOR THE BUYER THAT IS NOT TRUE! I PREPAY ALL US BUYER TARIFFS NO TARIFFS FOR YOU TO PAY, YOU PAY IS ONLY AT CHECKOUT NO HIDDEN FEES*

Specifications:

Tuning range: FM, MW

Power output: 100W/ch (stereo), 43W/ch into 8Ω (quadraphonic)

Frequency response: 10Hz to 50kHz

Total harmonic distortion: 0.5%

Damping factor: 40

Input sensitivity: 3mV (MM), 150mV (line)

Signal to noise ratio: 70dB (MM), 75dB (line)

Output: 150mV (line)

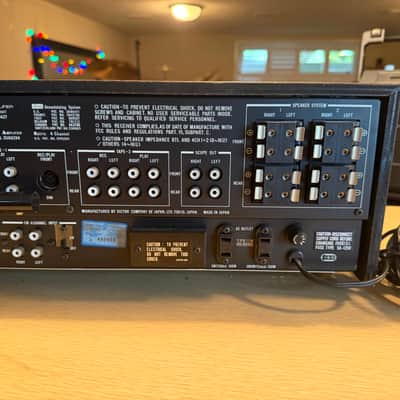

Speaker load impedance: 4Ω to 16Ω

Dimensions: 180 x 513 x 405mm

Weight: 20kg

Description

BTL is a JVC original. With it you can play back 2-channel stereo with double power.

This is done by linking the power amplifiers so that when you are playing 2-channel sound two of the power amplifiers do not remain idle; by internal connection they are reconnected so that each of the two channels passes through two power amplifiers.

The 4VR-5456X is ready for the day when FM discrete 4-channel broadcasting starts.

At the moment some 2-channel FM broadcasts are made in matrix 4-channel formats; these can be heard as 4-channel by selecting the appropriate matrix decoder with the mode selector.

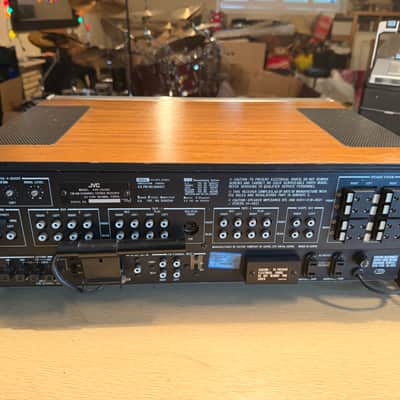

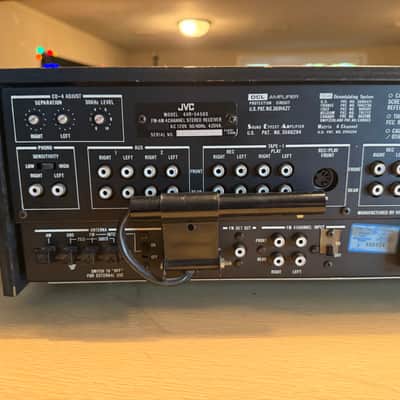

When 4-channel FM broadcasting starts, connect a demodulator to the jacks on the rear panel, remove the plate holding the FM 4-channel switch in its off position and switch on.

Connect the FM DET OUT jack on the rear panel to the demodulators input jack and the demodulator's output jacks to the FM 4-channel input jacks.
