TEAC X-2000R BL — SERVICED — BLACK FINISH — BIDIRECTIONAL RECORD/PLAY

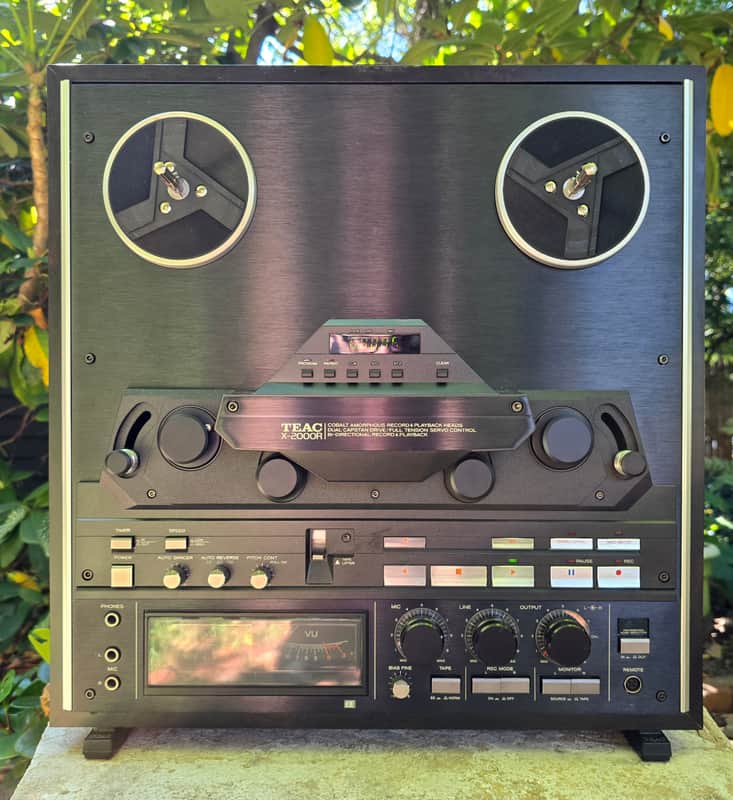

Offered here is an exceptionally attractive example of TEAC's celebrated X-2000R BL, the black-finish version of one of the company's most sophisticated consumer open-reel machines.

This particular deck was professionally serviced by Rainbow Electronics in Sacramento, California on September 4, 2025. Service included installation of a new capstan belt, lubrication, pinch-roller restoration, and comprehensive testing of record and playback operation.

The machine is operating properly and presents beautifully.

SERVICE / CONDITION

Professional service performed by Rainbow Electronics, Sacramento, CA, 9/4/2025:

• New capstan belt
• Mechanical lubrication
• Pinch roller restored
• Record and playback functions fully tested

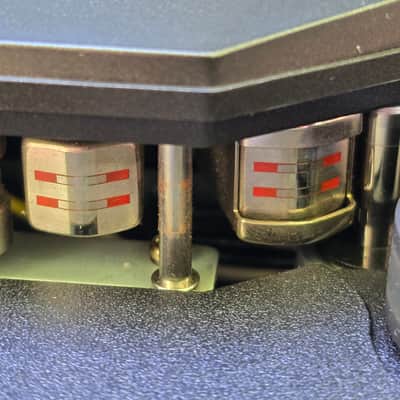

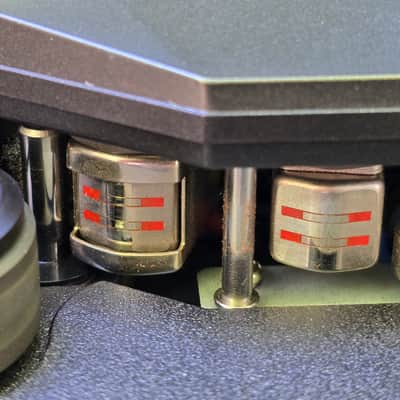

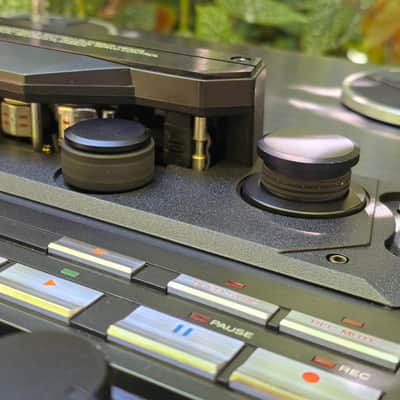

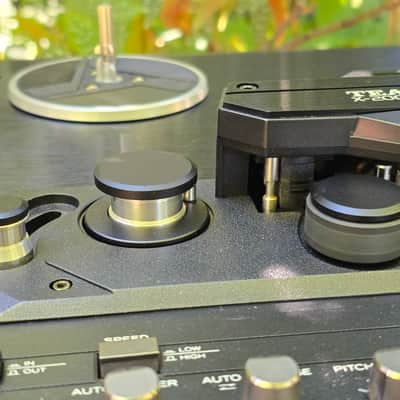

The tape path and heads present extremely well, as shown in the detailed photographs.

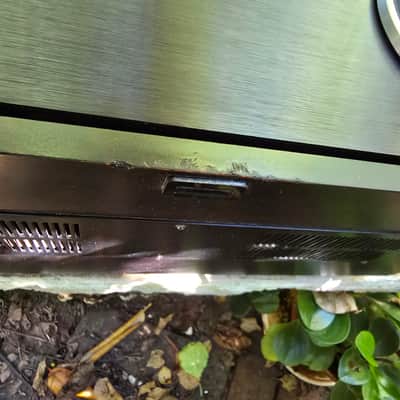

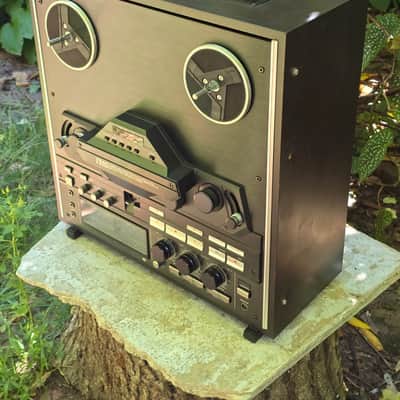

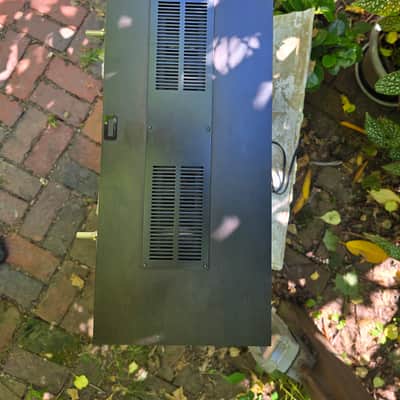

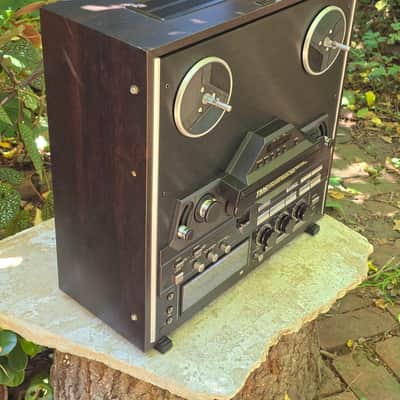

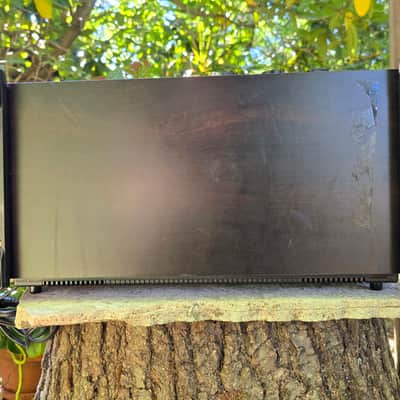

Cosmetically, this is an excellent example. The black faceplate, controls, trim and cabinet all retain a remarkably clean appearance. There is a small area of cosmetic scuffing along the front edge of the outer case, shown clearly in the photographs. The screws securing the outer case are not factory-original, but are a neat, matching replacement set. Neither issue detracts significantly from what is otherwise an unusually handsome X-2000R BL.

Please examine all photographs carefully, as they are an important part of the description.

ABOUT THE TEAC X-2000R BL

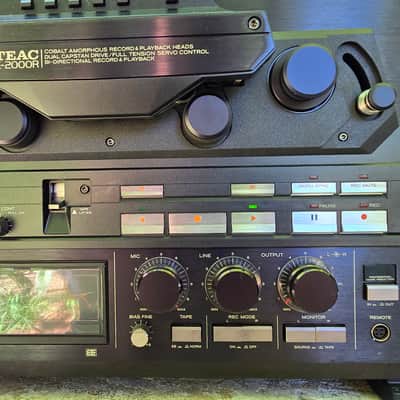

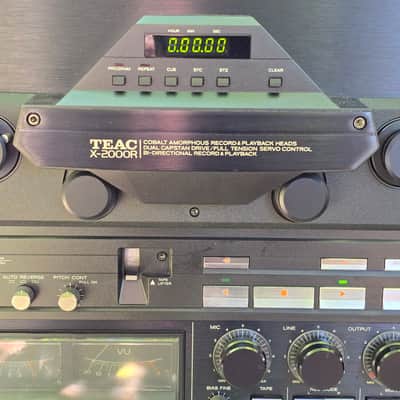

Introduced during the final great generation of TEAC open-reel machines, the X-2000R was an extremely sophisticated home recorder. Unlike the standard X-2000, the R version provides bidirectional recording and playback, using six heads to provide three-head functionality in both directions. TEAC equipped the machine with cobalt-amorphous record/playback heads and a three-motor transport.

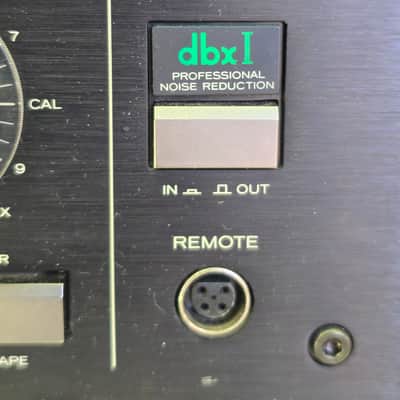

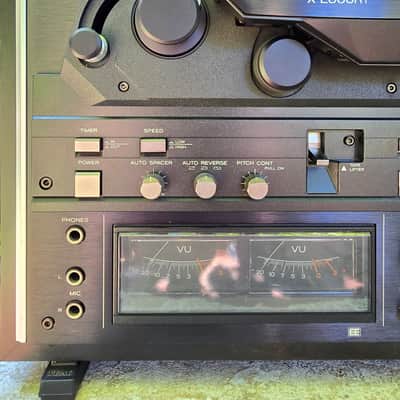

The transport employs TEAC's closed-loop dual-capstan system with tension-servo control, designed for stable tape handling and reduced modulation noise. Other features include dbx Type I noise reduction, EE tape capability, fine bias adjustment, pitch control, auto-search and repeat functions, real-time electronic counter, timer operation, record mute/auto spacer and full-logic transport controls.

The X-2000R BL accommodates both 7-inch and 10½-inch reels and operates at 3¾ and 7½ ips. Contemporary specifications quote frequency response at 7½ ips of approximately 40 Hz–33 kHz ±3 dB, with signal-to-noise performance reaching 100 dB with dbx engaged.

FACTORY SPECIFICATIONS

Track format: 4-track, 2-channel stereo
Heads: 6, providing bidirectional record/playback/erase
Tape speeds: 3¾ and 7½ ips
Maximum reel size: 10½ inches
Transport: 3 motors; FG-servo DC capstan motor and two DC slotless reel motors
Noise reduction: dbx
Tape types: Normal/LH and EE
Pitch control: approximately ±6% or greater
Fast-wind time: 100 seconds or less for 1,800 ft tape
Weight: approximately 46 lb without wooden case
Power: 120V AC, 60Hz — U.S. model

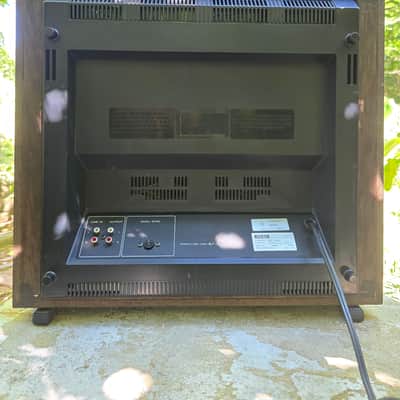

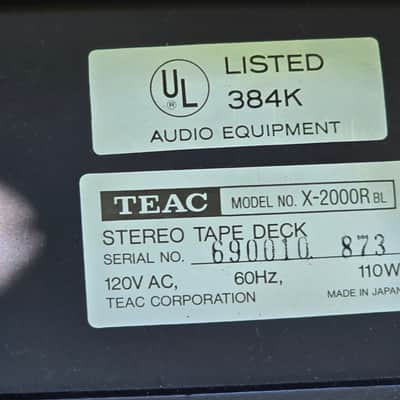

This machine's rear identification plate reads:

Model: X-2000R BL
Made in Japan
120V AC / 60Hz

The X-2000R represents very nearly the end point of TEAC's development of the sophisticated consumer open-reel recorder: auto-reverse, six heads, dual capstans, servo-controlled tape handling, dbx and remarkably wide-band recording performance, all packaged in one of TEAC's most distinctive late-generation designs. The black BL version is particularly striking, and this professionally serviced example is ready to become the centerpiece of a serious analog system.

SHIPPING / PICKUP

This is a large, heavy and delicate precision tape machine and will be packed accordingly. The deck will be double-boxed with substantial cushioning and reinforcement, with particular care given to protecting the reel tables, controls, faceplate and cabinet.

The shipment will be fully insured for the purchase price and signature confirmation will be required.

We have extensive experience safely packing and shipping large vintage reel-to-reel decks and other heavy audio equipment throughout the United States and internationally.

Local pickup is also welcome, and is always encouraged for buyers within reasonable traveling distance.

International buyers are welcome to contact us regarding shipping availability and cost before purchase.
