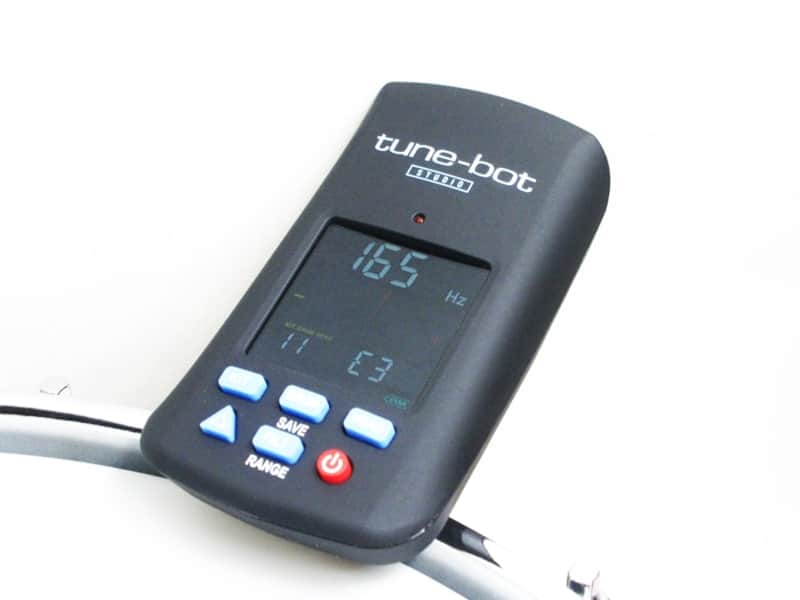

Overtone Labs tune-bot STUDIO / Drum Tuner

The Hot New Drum Tuner

Drum tuning has traditionally relied on one's own ears and intuition.

By using the "tune-bot," you can check the pitch in Hertz (Hz) and view the musical note, offering the advantage and peace of mind of being able to "see" the tuning.

This is a revolutionary product that can be used not only for drum sets but also for various other percussion instruments, such as timpani.

<<Usage / Feature Introduction>>

First, attach it to the instrument's hoop (compatible with both die-cast and triple-flanged/pressed hoops).

<Reproduce your sound anytime, anywhere>

・Displays readings in both Hertz (Hz) and musical notes.

・Tune timpani, drum sets, Latin percussion, and more using musical notes.

・Save and reproduce your preferred sounds using "Difference Mode."

・Avoid picking up unwanted overtones with "Filter Mode."

・Save settings for up to 10 drums.

・Easy-to-read color display.

・Hard case included.

<Key Features>

・Allows tuning based on musical notes and pitch (Hz).

・Filter mode makes tuning percussion instruments easier.

・Memory function allows you to recall and compare saved tuning settings.

・Clips securely onto the hoop.

*Precautions*

・The values ​​measured by this tuner serve only as a reference.

・Since the pitch of a drum changes depending on where it is struck, please consult the manual when tuning (the pitch rises as you move closer to the hoop).

・Not waterproof.

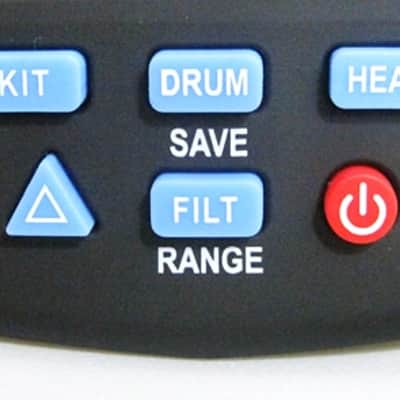

<Button Functions>

・POWER (Red button) - Turns the power ON/OFF.

・KIT/DRUM/HEAD - Saves and recalls tuning settings in the order of KIT → DRUM → HEAD.

・△ - Switches between Difference Mode and Absolute Mode.

・FILT - Toggles Filter Mode ON/OFF.

<Mode Descriptions>

・Difference Mode - Displays the difference between the reference value and the measured value.

・Absolute Mode - Displays the current measured value.・Filter Mode – Cuts out unwanted noise.

<Focus on percussion if the overall sound seems off>

If an orchestra or band doesn't sound cohesive or something feels "off," adjusting the drums to a specific pitch often solves the problem. Try measuring and tuning the pitch.

[Specifications]

Range: 30–400 Hz, 1C–4G#

High-range mode: 30–450 Hz, 1C–4A

Sine wave analysis: +/-0.5 Hz

Response time: 750 ms

Weight: 72 g (excluding batteries)

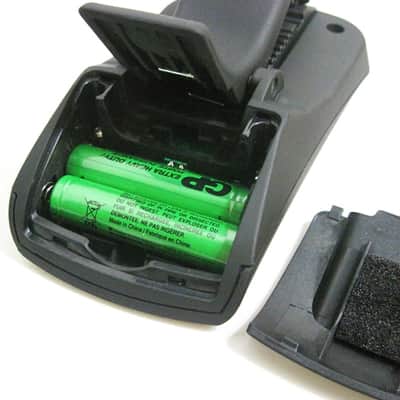

Included accessories: Dedicated case, two AAA batteries
