Mipro MI580 5.8GHz Digital Wireless In-ear Monitor System

This is the newest system out by Mipro. The change is the new MI580 stereo belt pack.

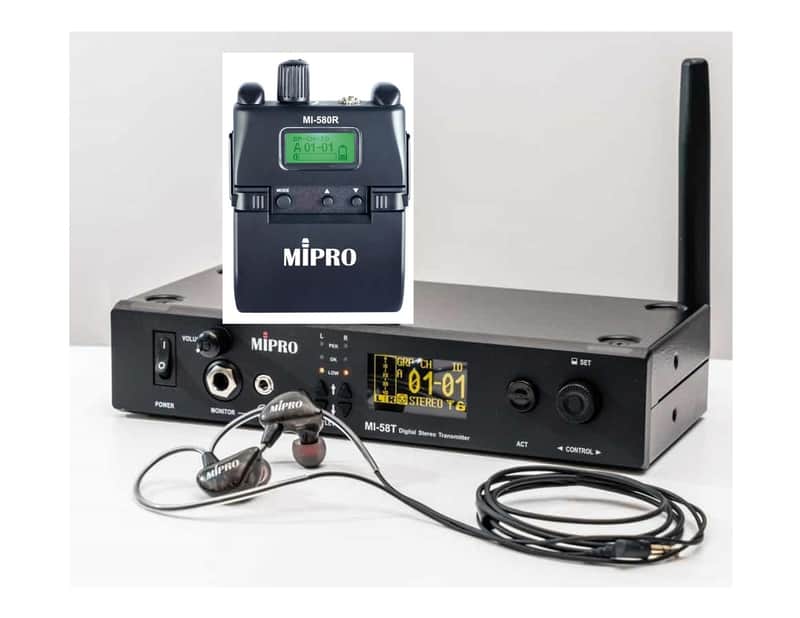

This package does NOT come with rack parts or back to front of rack antenna. It DOES include Transmitter, Belt-Pack, Batteries and a Charger (pictured).

I'm Freq City Sound out of Cincinnati OH. The product is stock and I try to ship same day.

Regarding the belt pack:

The MI-580R is a 5.8 GHz digital stereo monitor receiver offering low-latency Stereo and Mixed modes. It features flexible power options (two AA batteries or one 18500 Li-ion battery) and supports USB Type-C charging.

Features

• Ultra-compact reinforced polymer housing for durability and portability.
• Operates in the ISM 5 GHz band for superior interference resistance and stable, high-quality audio reception.
• True diversity reception technology enhances signal reliability.
• Supports STEREO and MIXED monitoring modes for flexible use.
• 4-band EQ for tailored tonal adjustments.
• Outstanding stereo separation (>100 dB) for immersive and detailed sound.
• 3.5 mm stereo earphone jack compatible with MIPRO professional monitoring earphones and most commercial models.
• Patented battery compartment accommodates AA or Li-ion batteries, with USB Type-C charging, safety protection, and no need for a dedicated charging dock.

·      Model MI-580R

·      Name 5 GHz Digital Stereo Body-pack Receiver

·      Housing Reinforced plastic

·      Display Backlit graphic LCD

·      Control Interface ACT sync sensor, setting buttons and volume control

·      Frequency Range ISM 5.8 GHz

·      Receiving Mode True diversity

·      Audio Mode STEREO / MIXED

·      L/R Balance Adjustment Allows shifting the stereo output toward the left   right channel.

·      ENG Mode Yes, up to 16 sets (requires transmitter setup)

·      EQ FLAT / LO-CUT / LO-BOT / HI-BOT

·      Frequency Response 20 Hz – 23 kHz (stereo)

·      Dynamic Range ≥ 109 dBA (system)

·      Stereo Separation > 100 dB

·      THD < 0.1%@ 1 kHz

·      Latency Approx. 1.8 ms (group B)

·      Sensitivity 5 μV (S/N > 100 dB)

·      Output Power Left/Right × 100 mW@16 Ω

·      Earphone Jack 3.5 mm TRS

·      Power Supply One 18500 Li-ion battery or two AA alkaline

·      Battery Charging USB Type-C

·      Operating Time > 8 hours

·      Accessories E-9 / E-8S (optional)

·      Dimensions 63 × 95 × 25 mm (W × H × D)

·      Weight Approx. 160 g

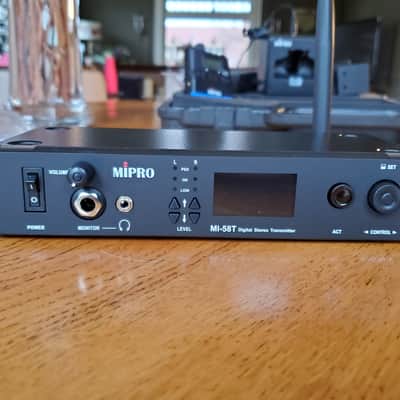

Transmitter:

• Engineered for interference-free performance, the MI-58T operates in the license-free ISM 5 GHz band with high-efficiency digital modulation for stable, high-fidelity transmission.
• Features two selectable groups: Group A with 12 channels, and Group B with subgroups B1 and B2, each offering 12 channels—allowing flexible frequency planning for complex venues.
• Each channel supports 64 user IDs and one encrypted ID, enabling multiple systems to operate in close proximity without crosstalk.
• Equipped with an OLED display and a rotaty knob for intuitive navigation, with a lock function to prevent accidental changes.

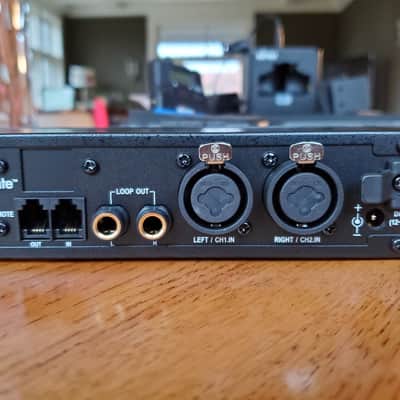

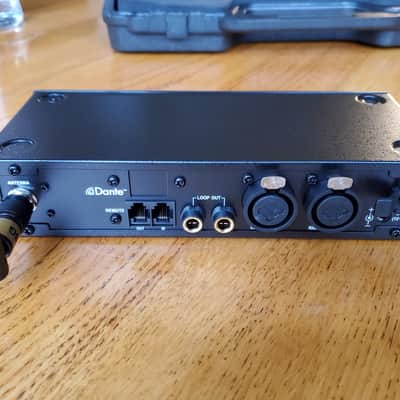

• XLR / 6.3 mm combo input accommodates both balanced and unbalanced sources; 6.3 mm LOOP OUT allows easy signal routing to additional equipment.

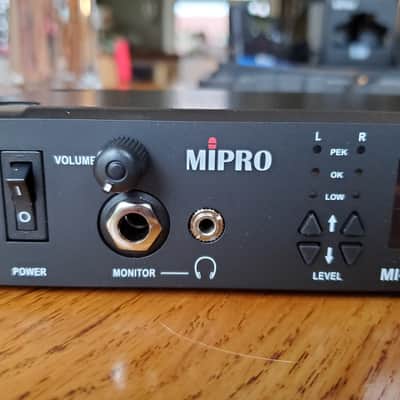

• Includes 6.3 mm and 3.5 mm headphone outputs with adjustable volume for convenient real-time monitoring.
• Multiple transmitters can be paired with the AD-58 antenna combiner and external antennas to extend range and enhance signal stability.
• ENG mode enables quick data transfer to multiple receivers, allowing sound engineers to configure and monitor systems on the fly.

Model MI-58T

Name 5 GHz Digital Stereo Transmitter

Chassis Half-rack (9.5") metal chassis

Display Graphic OLED

Control Interface Rotary knob, ACT sync button, earphone volume control, AF input gain setting buttons

Frequency Response 20 Hz – 23 kHz (stereo)

Channels Group A presets 12 channels. Group B presets 12 channels for each subgroup B1 & B2.

Encryption 64 ID codes and 1 encrypted ID are allowed to be set for each channel.

ENG Mode Yes, up to 16 sets (requires receiver setup)

Modulation Type Digital modulation

Audio Sampling 48 kHz / 24-bit

RF Power Output < 25 mW (country dependent)

Dynamic Range ≥ 109 dBA (system)

THD< 0.1% @1 kHz

Max. Input Level +24 dBu

Audio Inputs 2 × XLR / 6.3 mm TRS combo socket

Audio Outputs 2 × 6.3 mm TRS (Loop Out)

Earphone Jacks 1 × 6.3 mm and 1 × 3.5 mm TRS

Management Interface RJ-11 × 2

Antenna Output 50Ω TNC female connector

Power Supply DC 12–15 V. External AC 100–240 V switching power supply

Dimensions 210 × 44 × 91 mm (W × H × D)

Weight Approx. 570 g
