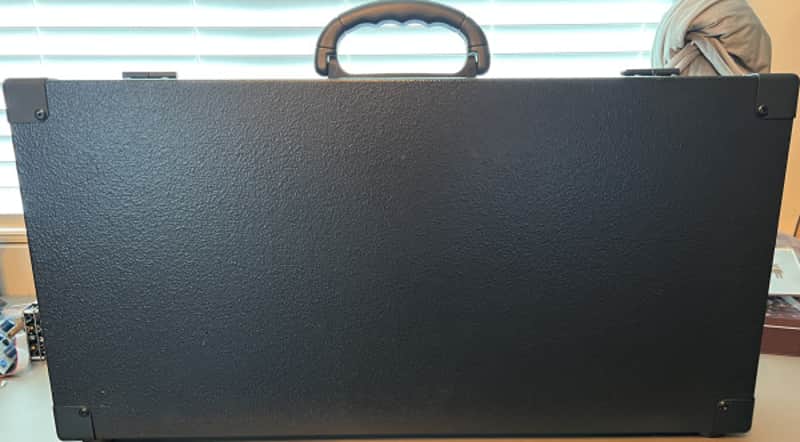

MDLR Case Eurorack case 7U/126HP Performer Series Pro 85W

The case is in good condition, please see the photos. The case comes with the external power supply and guitar stand seen in the pics. Free shipping in the CONUS.

MDLR Eurorack case 7U/126HP Performer Series Pro 85W

This 7U case features one extra 1U row for use with both Intellijel 1U format tiles. Easily choose your required 1U tile size in the dropdown.

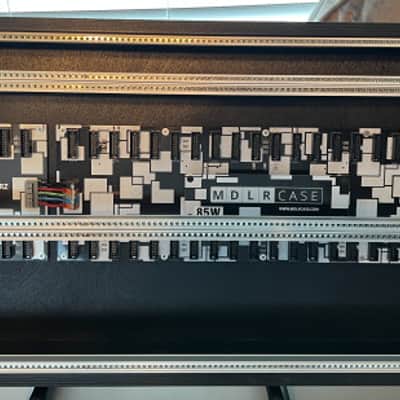

The case comes equipped with one MDLR PWR powered busboard (40 power headers in total) + one MDLR PWR extension board (total of 14 extra headers). This PSU setup giving you maximum space for your modules, strong power outputs, less heat then a conventional PSU and by using low voltages inside the case a super safe PSU solution.

7U/126HP Performer Series Pro features:

• This case is compatible with Intellijel 1U format
• 12mm birchwood fully nailed and glued construction
• Sprayed with a special 2-layer black protective coating
• Detachable lid, allows modules to be fully-patched during transport
• Flush-mounted rails allow the modules to be mounted even with the sides of the case
• 6x 126HP  rails with M3 threaded inserts
• 85W MDLR PWR powered busboard (40 power headers in total)
• One MDLR PWR extension board (total of 14 extra headers)
• Total output 85W 4A on 12V, 2.5A on -12V and 1.5 on 5V
• Recessed side-mounted power switch
• One 1.8m power cords

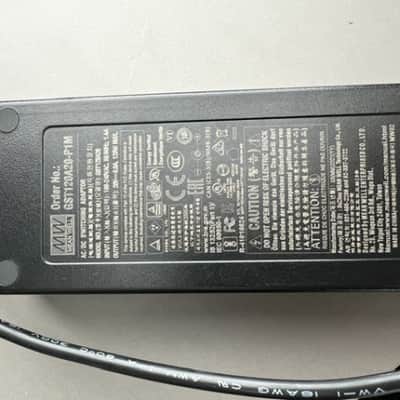

• Power adapter included
• High-quality Penn Elcom components
• Super-comfortable Luxe carrying handle
• Anti-slip rubber feet
• Completely assembled, wired, tested, and ready to play!

Dimensions (L/W/H)

• 70,5 cm x 37,5 cm x 25 cm

Total Weight

• 7,9. kg (includes rails, power supplies, and other hardware)

Module depth

• 6,9 cm available depth between top of rail and bottom of case
• 6.2 cm available depth between top of rail and busboard
• 4.2 cm available depth between top of rail and protection plate PSU part
• 5.3  cm available depth between top of rail and top of header on busboard

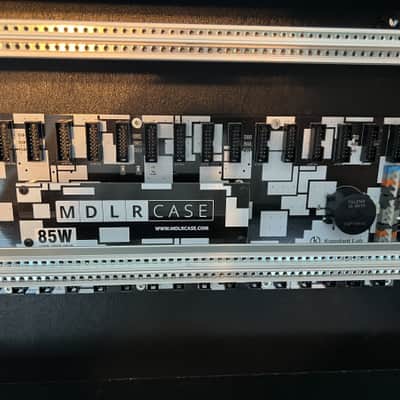

MDLRCASE MDLR PWR powered busboard

MDLR PWR is a high precision low noise and high-powered bus board for your eurorack modular systems. With a total of 40 headers (per busboard) you’ll never run out of connectivity, so all your beloved modules can be easily connected.  MDLR PWR  is universal so it can accept a wide range of mains voltages from 100V to 240V and so this can be used worldwide. MDLR PWR is fed with an external power brick which takes care of no high voltages inside the case.

Outputs:

MDLRPWR 85W

Power 85W

+12V / 4A

-12V / 2,5A

+5V / 1.5A
