Stagetec Nexus Compact Interface

FOR SALE: Stagetec Nexus Compact. $ 5000. Stage box and mixer

In excellent as new condition, sold with power supply.

See Stagetec Data sheet below:

Nexus Compact is a Dante interface of supreme audio quality. 158dB dynamic range

8 mic preamps, with a/d and d/a converters

DIGITAL MIXER, SPLITTER

software control on an iPad or computer

===============================================================

ANALOG-AUDIO

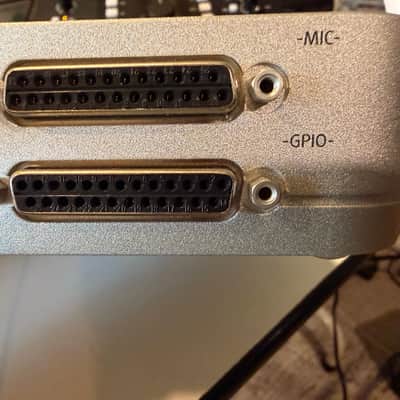

Microphone inputs

Dynamic range 157,6 dB(A) Converter dynamic range

Inherent to the 24 bit dataformat, the idle channel noise is limited to -144 dBFS

Distortion factor (THD+N) Typical 0,003% at 24 dBu

Guaranteed < 0,004%

Typical 0,003% in the range -50...0 dBu

Amplitude response 20…20.000 Hz: < 0,05 dB (Typical < ±0,1 dB)

At 20 Hz: Typical -3 dB (below 18 dB/oct. drop according to IRT specifications)

Equivalent noise level < - 129,5 dBu (A), at 200 Ω source impedance

< - 126 dBu (RMS), at 200 Ω source impedance

< - 133,6 dBu (A), at 0 Ω source impedance

< - 115 dBqp ITU-R 468, at 200 Ω source impedance

Input level Max. 24 dBu balanced, with phantom power switched off, unbalanced sources also allowed

Signal delay 395 μs (at 48 kHz sample rate)

Crosstalk attenuation > 140 dB (20…20.000 Hz) typical

> 170 dB at 1 kHz typical

> 150 dB at 20 kHz

Unbalance attenuation Typical 125 dB at 50 Hz

Typical 105 dB at 1 kHz

Typical 80 dB at 20 kHz

Gain Digital up to 70 dB, adjustable in 1 dB increments

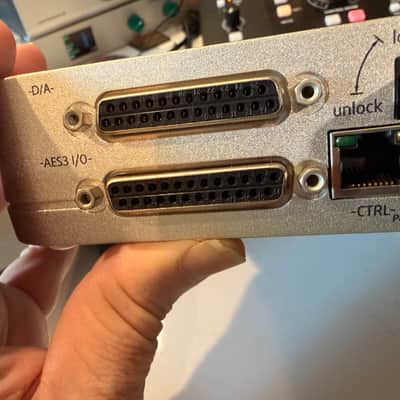

Analog outputs

D/A conversion 24 bit, 128-fold oversampling

Dynamic range Typical 131 dB (A)

Typical 128 dB RMS

At 0 dBFS = 22 dBu

Output level 0...24 dBu at load > 600 Ω (at 300 Ω up to 15 dBu); adjustable in 1 dB steps

Distortion (THD+N) Typical 0,003% at 24 dBu

< 0,006% in the range -20...+24 dBu, guaranteed < 0,02%

< 0,0006% at 4 dBu

Amplitude response 20...20.000 Hz (+0 dB, -0,2 dB), integrated DC filters

Output impedance Typical 19 Ω

Idle channel noise Typical –124…–128 dBFS (RMS)

Typical –93 dBqp (ITU-R 468 1K)

Typical –105 dBu (ITU-R 468 2K RMS)

Unbalance attenuation (output impedance) > 60 dB at 20…20.000 Hz

Typical 120 dB at 50 Hz

Typical 80 dB at 20 kHz

Offset voltage < 1 mV, typical 0,1 mV

Unbalance attenuation > 40 dB at 20…20.000 Hz

90 dB at 50 Hz

50 dB at 20 kHz

Crosstalk attenuation > 100 dB (20…20.000 Hz), typical 130 dB

Signal delay < 230 µs (at 48 kHz sample rate)
