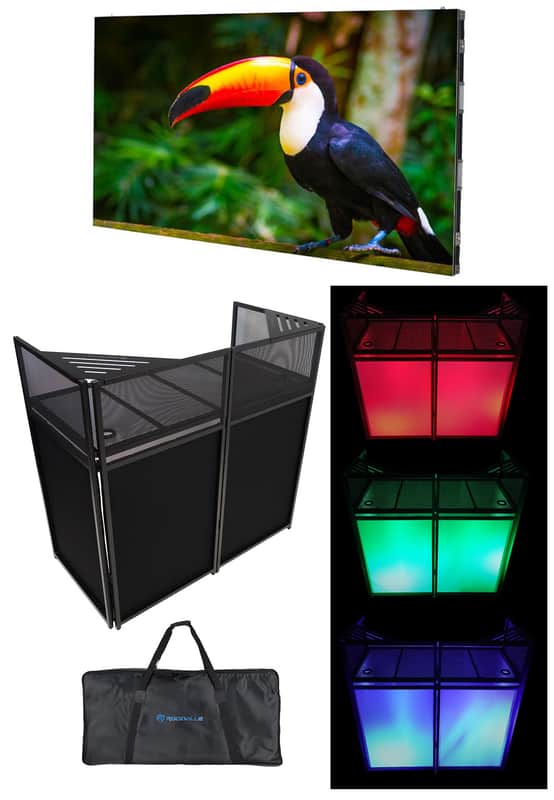

American DJ WMS1 1.9mm Pixel Pitch RGB SMD1212 LED Video Panel

Package Includes:

• (1) American DJ WMS1 1.9mm Pixel Pitch RGB SMD1212 LED Video Panel
• (1) Rockville ROCKBOOTH XL DJ Event Booth Facade w/Built in Table+Travel Bag+Scrims

Description:

Discover the cutting-edge ADJ WMS1 LED Video Panel – a pinnacle in high-resolution display technology designed for seamless integration into a diverse array of projects. Expanding ADJ’s professional LED video panel portfolio, the WMS1 stands out as the company’s highest resolution offering to date. Perfectly suited for integration applications, including shop window displays, museums, boardrooms, digital signage, and entertainment venues, this video panel is a versatile solution for immersive visual experiences. A Novastar A8s-N receiving card is built-in allowing the WMS1 to be displayed horizontally or vertically when wall mounting.

Boasting a super high-res pixel pitch of 1.95mm and a pixel density of 262,144/m2, the WMS1 guarantees exceptional definition, even at close viewing distances. The RGB SMD1212 color mixing LEDs produce a vibrant spectrum, supported by a brightness of 700 NITS. With a wide viewing angle of 160-degrees (horizontal) by 140-degrees (vertical) and a rapid refresh rate of 3840Hz, this video panel ensures a captivating and smooth visual performance.

Measuring 39.3” x 19.6” (1000mm x 500mm), the WMS1 consists of eight individual modules, each with 128 x 128 pixels, offering flexibility in arrangement. Each panel’s overall resolution is 512 x 256 pixels (horizontally) or 256 x 512 (vertically). The panel’s frame assembly features a secure locking mechanism, allowing for the seamless joining of adjacent panels. Installation is simplified with mounting points for direct wall installation. The front-serviceable design enables easy module replacement, ensuring uninterrupted operation.

Specifications:

• Pixel Pitch (mm): 1.95mm
• Pixel Density (dot/m2): 262,144
• LED sealing Type: SMD1212 Kinglight Cooper
• Module Size (mm x mm): 250 x 250
• Module Resolution (PX x PX): 128 x 128
• Panel Resolution (PX x PX): 512 x 256 pixels (horizontally) or 256 x 512 (vertically).
• Average Life (Hours): 50000H

Features:

• Installation Method: Hang or Wall Mount
• Maintenance: Front Service
• Configuration*: Horizontal (wall mount to hang); Vertical (wall mount only)

Optical Ratings:

• Brightness (cd/m2): 700 NITS
• Horizontal Viewing Angle (Deg): 160°
• Vertical Viewing Angle (Deg): 140°
• Grey Scale (Bit): =14, DP32655
• Refresh Rate (Hz): 3840Hz

Power Supply:

• Input Voltage (V): 100-240VAC
• Max Power Dissipation (W/m²): 370
• Average Power consumption (W/m²): 140

Control System:

• Receiving Card: Novastar A8s-N

Environmental:

• Working Environment: Indoor
• Waterproof Level: IP20
• Working Temperature (°C): -20 ~ +40, (°F) -4 ~ 104
• Work humidity (RH): 10%~90%
• Storage temperature range: (°C) -40 ~ +80, (°F) -40 ~ 176
• Operation humidity (RH): 10%~90%

Weight / Dimensions:

• Cabinet Size (mm x mm): 39.3" x 19.6" / 1000 x 500mm
• Cabinet Weight: 21 lbs. / 9.5Kg
• Cabinet Thickness (mm): 1.3" / 33mm

Approvals:

• Certificates: cETLus

Accessories:

• EVSVAC (EVSVAC) - Vacuum Tool to Remove Modules
• WMSHDC (WMS132) - Horizontal Data Cable for WMS Panel Series
• WMSHPC (WMS106) - Horizontal Power Cable for WMS Panel Series
• WMSMAT (WMS080) - WMS1 & WMS2 Magnet Adjustment Tool
• WMSMDC32 (WMS158) - 32-foot, MainData Cable for WMS Panel Series
• WMSMPC16 (WMS145) - 16.4-foot, Main Power Input Cable for WMS Panel Series
• WMSRB1 (WMS015) - Free Hang, 1-Meter Rigging Bar (Max hang: 15 WMS Series panels)
• WMST2X2 (WMS041) - Frame Trim for 2x2 WMS Video Wall
• WMST3X3 (WMS054) - Frame Trim for 3x3 WMS Video Wall
• WMST4X4 (WMS067) - Frame Trim for 4x4 WMS Video Wall
• WMSVDC (WMS119) - Vertical Data Cable for WMS Panel Series
• WMSVPC (WMS093) - Vertical Power Cable for WMS Panel Series
• WMSWB1 (WMS028) - 1-Meter, Wall Mount Bracket

Video of HOW TO SET UP YOUR ROCKBOOTH XL:

Video of ROCKBOOTH XL:

Includes:

• (4) Facade Panels: 24" L x 47.6" H
• (1) Table Panel: 47" L x 24" D
• (1) Table Height: 37"
• (8) Scrims (4 black and 4 white)
• Travel bag to hold the façade and scrims

Description:

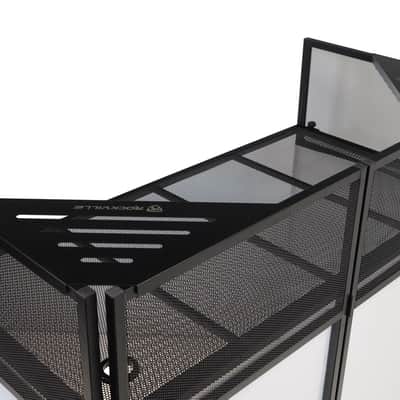

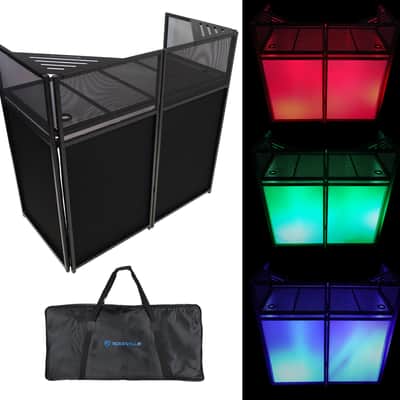

The ROCKBOOTH XL by Rockville is an all in one solution for DJ's. The ROCKBOOTH XL is a complete booth that includes both a Façade and a built-in table with wire management. The table is detachable so you can change the angle of the panels and use the Rockbooth like a standard DJ façade.

This is our extra-large version which gives you a ton of extra space. This is significantly larger than any other similar looking DJ Booth on the market.
The ROCKBOOTH XL breaks down flat quickly and fits inside the included high-quality travel bag.

We include black and white scrims to match the décor of any event.
The adjustable feet allow the booth to be stable on any surface (even if the floor is uneven).
Our scrims are fire retardant and are made of the highest quality Lycra material on the market.

The ROCKBOOTH XL includes a 30-day money back guarantee. If you are not happy with it return it for a refund and we will even send you a pre-paid return shipping label to cover your return shipping cost if you are in the 48 continental US.

Features:

• Rockville ROCKBOOTH XL Extra Large DJ Event Booth Facade w/Built in Table + Travel Bag + Scrims
• Extra-large version gives you a ton of valuable space
• 100% metal frame is strong and sturdy
• Detachable table allows you to use this as a traditional façade or as a complete DJ booth
• Table has (2) wire management openings
• Includes black and white scrims that attach and detach quickly
• Strong velcro on the frame is attached with glue and rivets
• Folds completely flat for easy transport with the included carrying bags and pouches
• Adjustable feet stabilize the booth on any floor
• Our panels and table are larger than the competition!
• Foldable design is quick and easy to set up and break down
• Scrim is fire retardant
• Scrim is easy to wash - simply wash with cold water and lay it flat to dry
• Non-slip rubber feet for stability
• 30-day money back guarantee including return shipping
• Product Weight: 45 Lbs.
• Dimensions of Facade Panels: 24" L x 47.6" H
• Dimensions of Table Panel: 47" L x 24" D
