Guyker-6 String Bridge Tailpiece for Headless Guitar Accessories, New, Multiple Colors

Headless Electric Guitar Bridge (Guyker WT001)

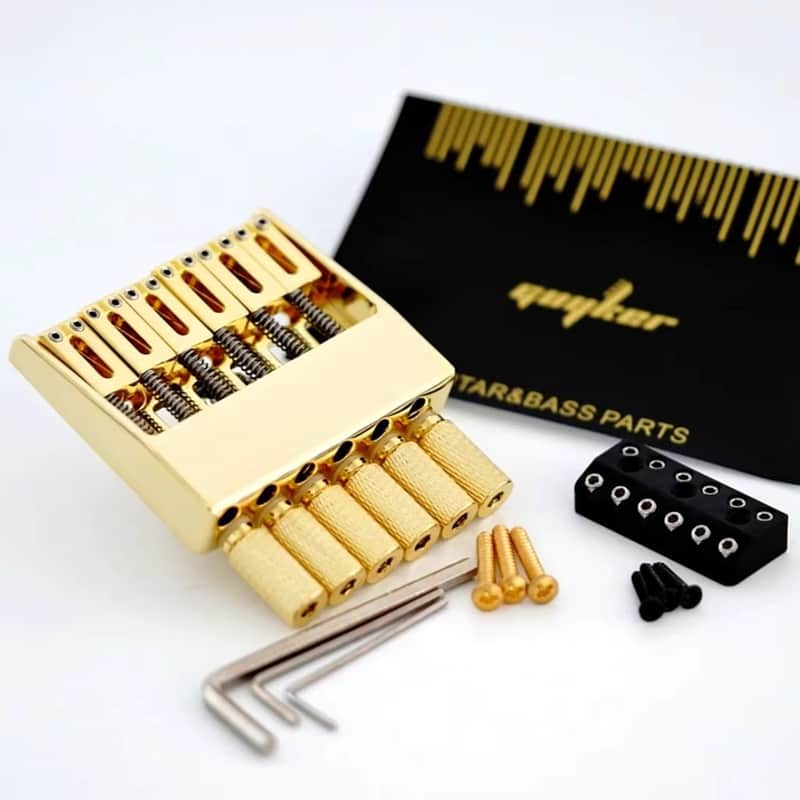

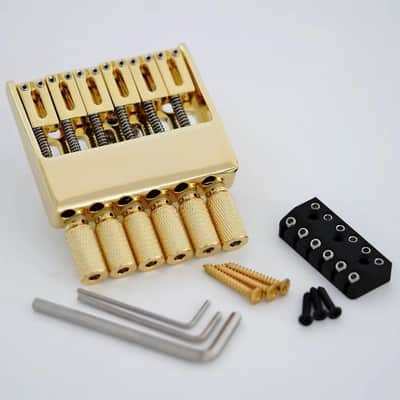

This is a 6-string headless electric guitar fixed bridge/drawstring assembly, in gold version. The headless guitar does not have a head, and the tuning mechanism is placed entirely on the bridge end.

Functions of each component

1. The main golden bridge

6 independent saddles with springs above: used to adjust string height and octave pitch, each string can be individually fine tuned; The spring provides saddle rebound.

Front 6 knurled locking knobs: headless guitar strings are inserted from the tail, and the knobs are turned to complete string locking and tuning, replacing the traditional knobs on the guitar head. The end of the string is directly locked onto the bridge, without the need for a head.

2. Black accessory block: Install the adapter pad between the piano body and bridge, adapt to different piano body slots, and adjust the installation height.

Working Principle

Headless guitar: Remove the head, thread the strings into the bridge from the tail, clamp the strings with the front rolling knob, and rotate the knob to adjust the tension; The upper saddle is still responsible for chord height and octave correction.

Characteristics

Belonging to a fixed bridge (not double rocking), with a simple structure and good pitch stability;

• Commonly used for headless travel guitars and headless fast play electric guitars;

The complete set of accessories is available, and you can directly modify or DIY your headless guitar upon purchase.

Little tip

Headless guitar strings are specialized headless strings: one end of the string is a smooth rod without steel balls, and is directly inserted into the bridge and clamped by a knob. Ordinary strings with steel balls cannot be used directly.
