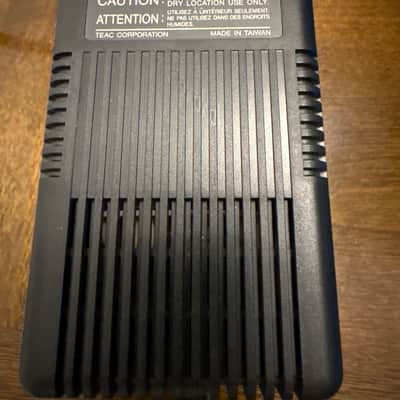

Tascam Digital Portastudio 788 - Excellent Condition WITH Brand New Power Supply. Portastudio is in excellent condition and already updated to firmware version 2.02. This would make an amazing centerpiece of a DAWless setup. Note: Unit has a slight mechanical hum when running, which is typical for these original internal hard drives from the early 2000s. Audio tracks record and play back perfectly clean.

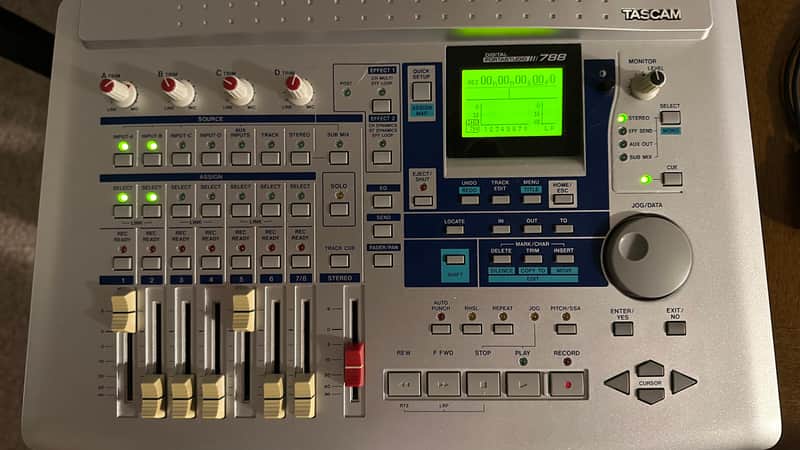

The Tascam 788 Digital Portastudio is a compact, 8-track, 24-bit hard disk multitrack recorder and digital mixing workstation. [1]Recording and Storage Specs

• Tracks: 8 physical playback tracks and up to 6 tracks can be recorded simultaneously.
• Virtual Tracks: 250 virtual tracks per song for alternate takes and composite stacking.
• Audio Quality: 24-bit uncompressed digital audio fidelity with 24-bit analog-to-digital and digital-to-analog converters.
• Storage Media: 7.5 GB internal hard drive, which provides nearly 2 hours of total 8-track recording time.
• Editing & Location: Non-destructive editing with 999 levels of undo/redo and up to 999 location memory points per song. [1, 2, 3, 4, 5]

Mixing and Effects

• Mixer Routing: Full digital mixing with flexible signal routing; mixes 8 recorded tracks, 6 analog inputs, and 2 stereo effects buses.
• Equalization: 3-band EQ with a sweepable parametric mid-band on channels.

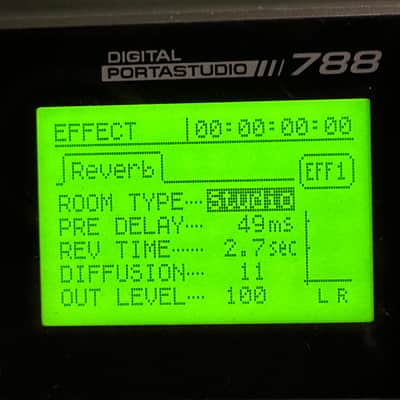

• Internal Effects: Two assignable effect processors capable of handling reverb, chorus, delay, guitar distortion, and multi-effects. [1, 2, 3]

Inputs and Outputs

• Analog Inputs: 6 total analog inputs (including microphone and line-level connections, with guitar-direct capability on Input D).
• Outputs: Stereo master RCA outputs, headphone jack, and auxiliary sends.
• Digital I/O: S/PDIF coaxial digital output for digital mixdowns.
• Data Backup: Built-in SCSI port to connect external CD-R/CD-RW drives for data archiving and audio CD burning.
