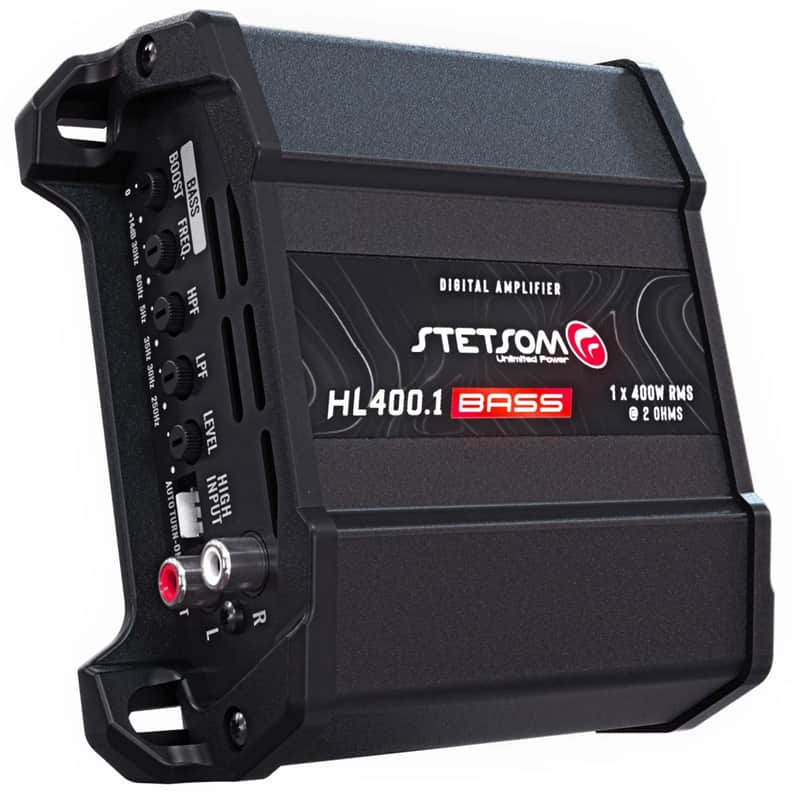

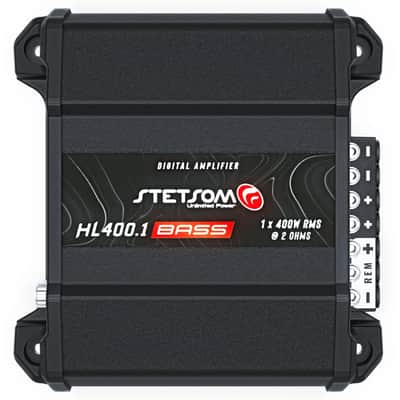

Stetsom HL 400.1 BASS Digital Car Amplifier 400W RMS 2 Ohm Bass Crossover

Stetsom HL 400.1 BASS Digital Car Amplifier 400W RMS 2 Ohm Bass Crossover

Developed for those seeking high performance and sound fidelity in automotive amplifiers.

The HL400.1 BASS, is a 400W RMS product with 1 CHANNEL dedicated for BASS and great installation versatility.

It offers independent right and left channels such as LEVEL to adjust the input signal level and Crossover, allowing you to choose between LOW-PASS, HIGH-PASS operation.

Introducing the HL400.1 – The latest audio amplifier from the HIGH LINE family!

The HL400.1 combines high-level performance with exceptional sound quality, all in a compact and durable design. With a frequency response of 10Hz to 22kHz, it features one amplified channel and dual-polarity output terminals, making it easy to connect multiple speakers to a single channel.

Perfect for indoor or outdoor audio systems that require multiple speakers powered by a single amplifier.

Expanded Compatibility:

• The amplifier offers installation flexibility, with inputs compatible with both RCA connectors and HIGH (wire) inputs from the vehicle’s factory radio or aftermarket player. Ideal for upgrading factory or custom sound systems.

Precise Crossover Controls:

• Shape your sound with independent crossover adjustments, allowing customized tuning across different frequency ranges.

L.P.F (Low Pass Filter):

• Adjustable from 60Hz to 22kHz – ideal for subwoofers or low-frequency channels.

H.P.F (High Pass Filter):

• Adjustable from 10Hz to 2.5kHz – protects your speakers from ultra-low frequencies.

Dedicated LEVEL Control:

• Precisely adjust the signal level sent to the speakers, ensuring the perfect balance between volume and audio quality based on your setup.

Rugged and Isolated Terminals:

• Built with durable, insulated ABS connectors for secure and reliable installation, protecting your system from short circuits and interference.

+ TECHNOLOGY + COMPACT + STETSOM

TECHNICAL SPECIFICATIONS

CHARACTERISTICSHL400.1 BASS – 2 OHMS Number of Channels 1 RMS Power 400W RMS Power at 2 Ohm 13.8V 1 x 400W RMS Power at 4 Ohm 13.8V 1 x 245W RMS Power at 2 Ohm 14.4V 1 x 420W RMS Power at 4 Ohm 14.4V 1 x 275W Supply Voltage 9V ~ 15,5V DC Frequency Response 5Hz ~ 250Hz Crossover Low Pass 30Hz ~ 250Hz Crossover High Pass 5Hz ~ 35Hz Signal to Noise >90dB Input Sensitivity RCA: 200mV / HIGH: 1,5V Input Impedance RCA: 9K Ohms / HIGH: 1K Ohm Impedance Output 2 OHMS Consumption with Signal Musical 16A Consumption with Signal Bass 32,1A Dimensions (H x W x D) mm 50 x 125 x 124 mm Weight Kg 500g

UPC

• 7897748706331
