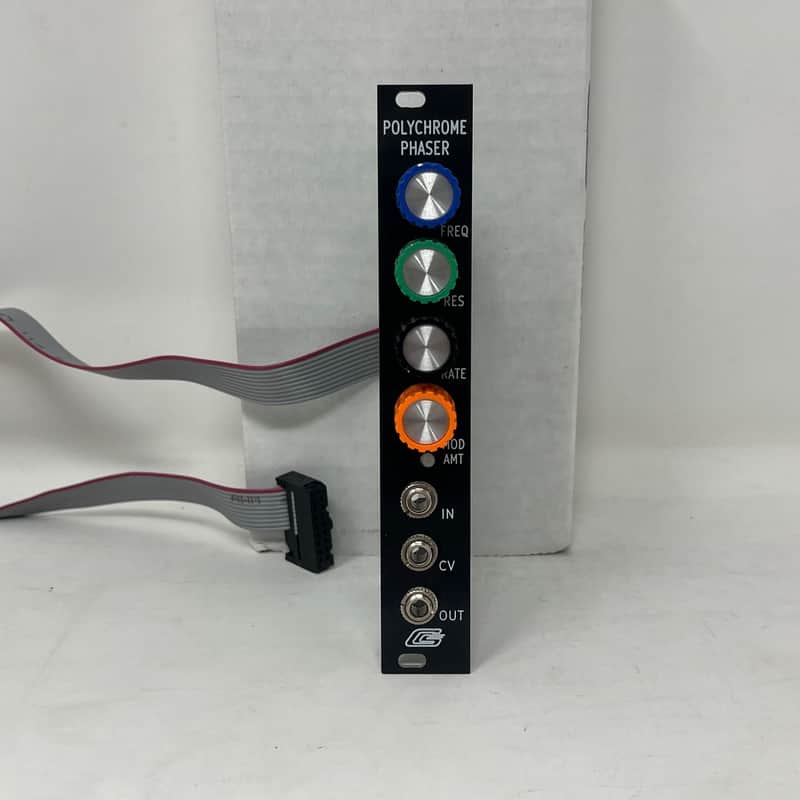

G-Storm Electro - Polychrome Phaser [USED]

Used - Fully tested - Excellent condition

Ships with original box, ribbon cable, and screws

Re-live the psychedelic 70s w/ the throwback Polychrome Phaser.  4HP analog circuit adaptation of the 6-stage phaser section from the Italian stallion - Farfisa Polychrome.

FREQ | the initial frequency of the phaser

RES | the depth of the phaser effect

RATE | the speed of the internal LFO, range from X hz to X Khz

MOD AMT | how much the internal LFO will affect the frequency.  If an external signal is plugged into the CV input, this knob will instead control how much that external signal will affect the frequency.

MOD AMT LED | red/green bi-polar activity indicator of internal LFO or external CV

IN JACK | your audio goes in here

CV JACK | use an external signal to control the frequency, thus bypassing the internal LFO

OUT JACK | the audio output of the phaser

TR1 | trimmer for initial Frequency adjustment

TR2 | trimmer for LED adjustment

SPECS
Width: 4HP
Depth: 47mm
Power: 33mA @ +12V, 34mA @ -12V
