Radial ToneBonne BassBone
Our users rate Reverb

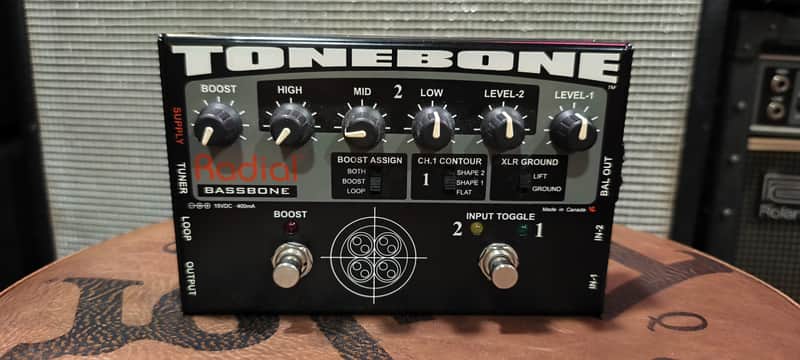

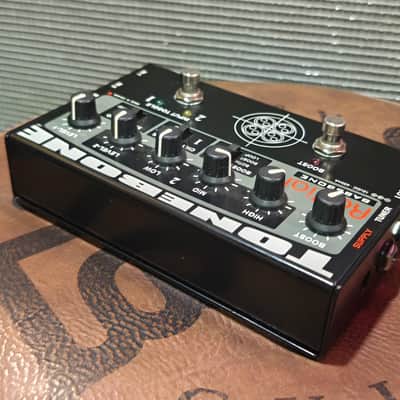

The Radial Tonebone Bassbone V1 is a dual-channel bass preamp, direct box, and signal commander designed to let players switch between two instruments or configure two different tones for a single bass.
Reverb
+1
Here are the complete technical specifications and features for the original V1 version according to Perfect Circuit and official documentation:
Audio Specifications
Input Impedance: 470k Ohm at the input jack.
Output Impedance (To Amp): 10k Ohm.
Balanced Output Impedance (XLR DI): 600 Ohms.
Boost Level: Adjustable from 0dB to +12dB.
Perfect Circuit
+1
Equalization & Sound Shaping

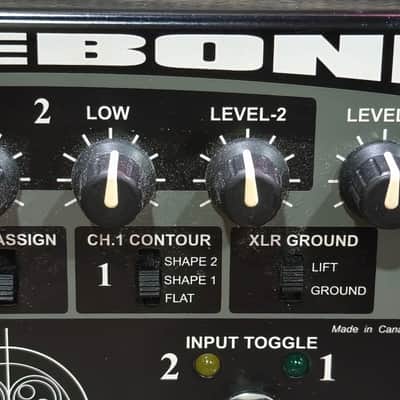

Channel 1 (Contour/Shape Switch): Features a 3-position toggle switch:
Flat: No alteration to the natural bass sound.
Shape 1: +4.5 dB @ 110 Hz, -5.1 dB @ 650 Hz, +2.7 dB @ 4.3 kHz.
Shape 2: +3.7 dB @ 75 Hz, -6.3 dB @ 350 Hz, +11 dB @ 5.6 kHz.
Bass Gear Magazine
+3

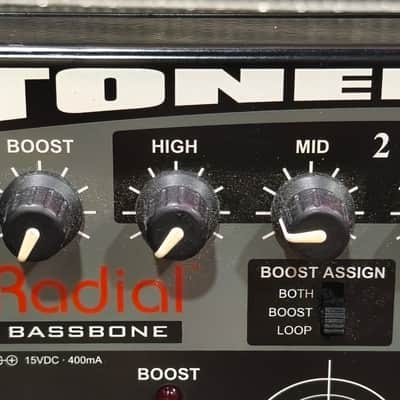

Channel 2 (Active 3-Band EQ): Independent controls providing:
Bass: +/- 12dB @ 75 Hz.
Mid: +/- 10dB @ 470 Hz.
High: +/- 16dB @ 5.6 kHz.
Scribd
+1
Connectivity & Controls

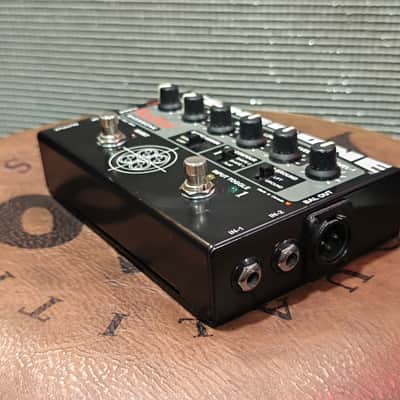

Inputs: 2 x 1/4" instrument jacks (Channel 1 and Channel 2).
Reverb
+1

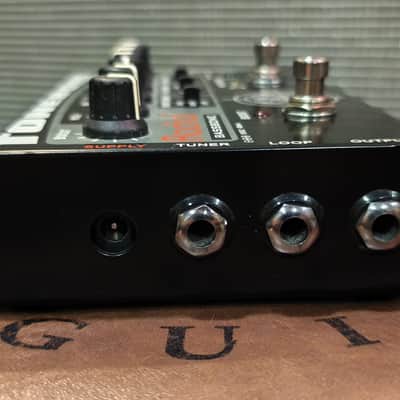

Outputs:
1 x 1/4" Main Output (to stage amplifier).
1 x 1/4" Always-On Tuner Output.

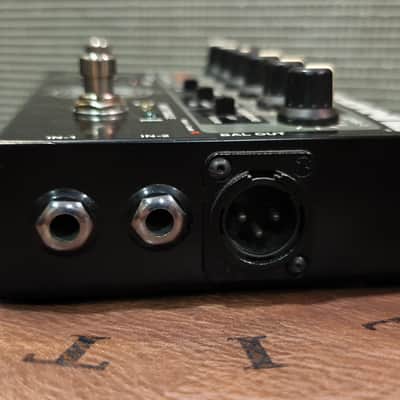

1 x Balanced XLR Male Output (with Ground Lift switch).
Perfect Circuit
+3
Effects Loop: 1/4" Send and Receive jacks (shares functionality with the Boost switch).
Studiocare
+1
Footswitches: Heavy-duty mechanical switches:
Toggle: Switches between Channel 1 and Channel 2.

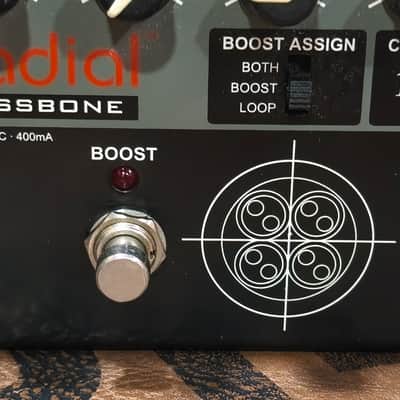

Boost/Loop: Assignable footswitch to engage the power boost, the effects loop, or both simultaneously.
Hardware & Power
Construction: 14-gauge steel chassis with a baked enamel finish.
Indicators: Large 3 mm OD ultra-bright LEDs for channel and boost status.
Dimensions: 7.8" x 4.8" x 2.2" (198mm x 122mm x 56mm).
Weight: 1.14 lbs (0.52 kg).

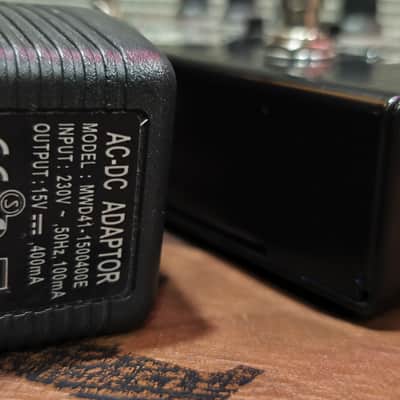

Power Requirements: 15V DC, 400mA (Center Pole Positive). Note: It requires its own dedicated power supply and cannot run on standard 9V pedal power.
Shipping Worldwide full insured
Reverb Buyer Protection
Reverb has your back if your item is lost, damaged, or doesn't match its description. Simply report any issues within 7 days and we'll help you get a full refund.Learn more about Reverb Buyer Protection.
| Listed | 2 days ago |
|---|---|
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
| Brand | |
| Model |
|
| Categories | |
| Made In |
|
Product safety information may be available here.
