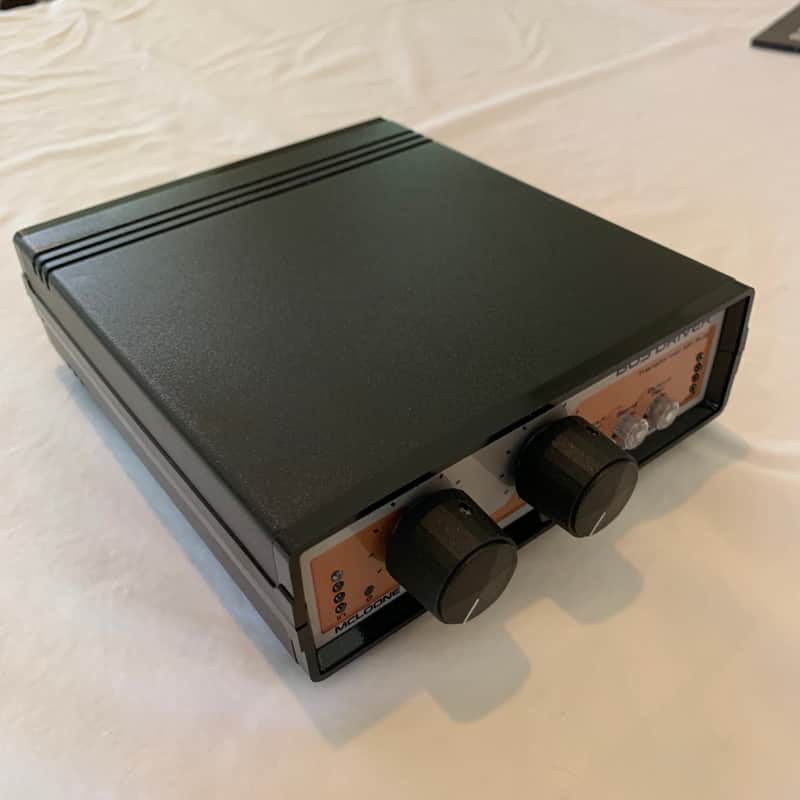

McLoone Bus Driver

This sale is for the item only, it does not include the original box and/or cables.

STEREO TRANSFORMER MIX BUS

Two perfectly matched, class-A channels (40dB of gain), each with output transformers

Add big console analogue warmth and definition to single instruments, buses or complete mixes

Dual rotary switches with eleven drive steps each (4dB per step), allow quick & precise gain matching between channels

ADD TRUE ANALOG WARMTH TO YOUR RECORDINGS

Add vintage transformer character to your mixes

‘Boost circuit’ overdrive stage for deep saturation

Dual rotary switches allow quick & precise gain staging between channels

MASTER WITH PRECISION STEREO PROCESSING

Bus Driver is a robust stand-alone unit packed with versatility

In the studio or on the road, easily process instruments, vocals or entire mixes for true analog transformer compression

Add richness to stems, analogue weight to synths, vocals, and percussion

Drive hard for transformer saturation

Shave transients and add body during mastering

GET HIGH-END ANALOG PERFORMANCE

The Bus Driver provides the same audio spec as everyone expects from high-end studio processors

Designed and handcrafted with passion in Berlin

HEAR THE BUS DRIVER IN ACTIONIN DEPTH

Mastering grade rotary dials allow superior gain matching between channels

Analogue style input and output metering, as well as clip warning at critical points, provide a comprehensive visual feedback

High-efficiency universal power supply included

MADE IN GERMANY

All our products are entirely designed, assembled and tested in Berlin.

Mastering grade 1% metal film resistors throughout.

All jacks by Neutrik.

Designed & Manufactured in Berlin, Germany.

SPECIFICATION

Inputs: 2x Balanced, Combo XLR & 1/4" TRS
Outputs: 2x Balanced, XLR
Maximum Input/Output: > +22dBu
Dynamic range: 114dB
Dynamic range (A): 115.5dB
THD (unweighted): 0.005%
THDN (unweighted): 0.006%
Frequency Response (20-20kHz): -0.3, +0.05dB
Crosstalk at 10kHz: -65dB

Power Requirements: Mains power, 90-264V AC, 400mA.

Measurements: DNR (input pad on, drive control 8 steps CW), THD/THDN (1kHz, input pad on, drive 4 steps CW, +18dBu test tone), Frequency Response (1kHz, input pad on, drive 4 steps CW, +18dBu test tone)
