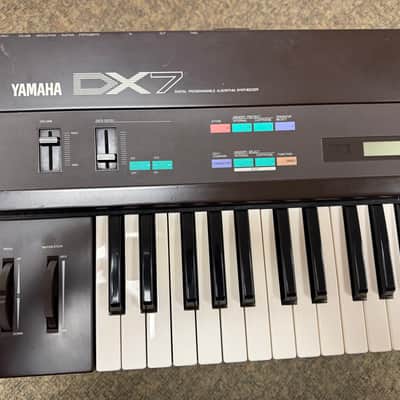

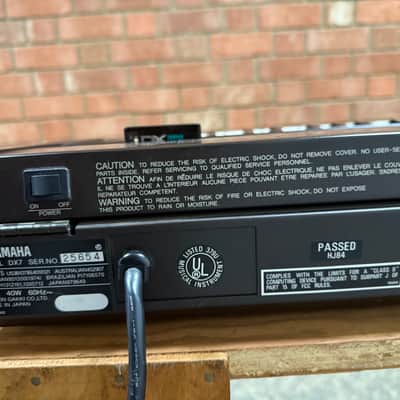

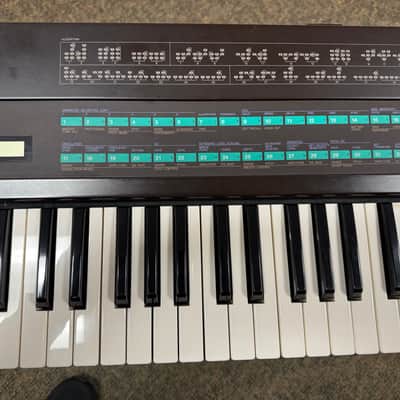

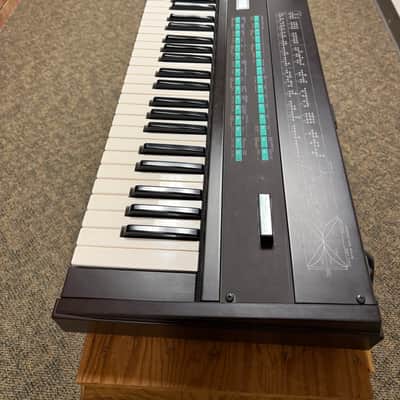

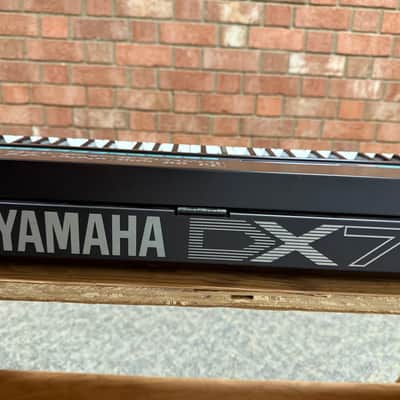

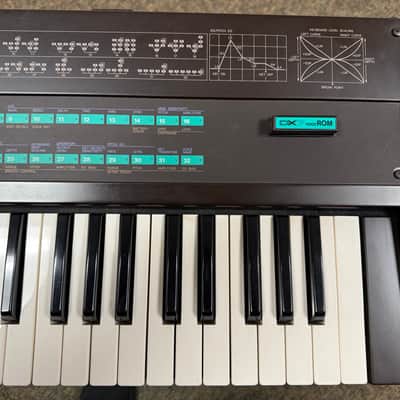

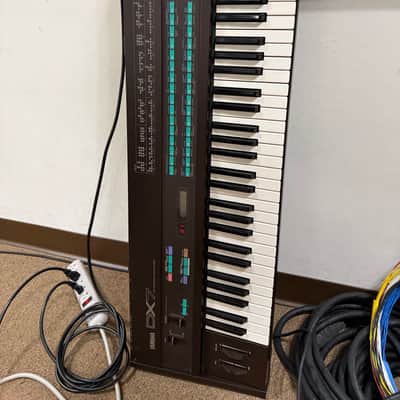

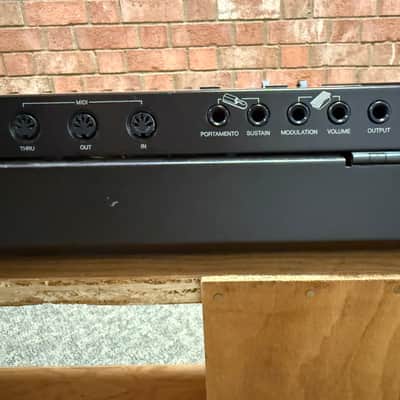

Yamaha DX7 with Grey Matter Response E!

This instrument has been checked out by a technician and is in working order. There are two factory preset and one blank cartridge. Several books and additional documentation included.

Released in 1983, the Yamaha DX7 is the first commercially successful digital synthesizer. Famous for its bright, glassy, and metallic FM synthesis tones, it defined the sound of 1980s pop music with 16-note polyphony and iconic presets like the electric piano.

Key Features & History

• FM Synthesis: Built on frequency modulation math developed by John Chowning at Stanford University.
• Architecture: Featured 6 sine-wave operators and 32 complex algorithms.
• Impact: Dominated 80s records and power ballads by artists like Phil Collins, Whitney Houston, and a-ha.
• Interface Quirks: Notoriously difficult to program due to a tiny screen and menu-diving, leading most users to stick with factory presets.

The Grey Matter Response E! upgrade is a famous 1980s hardware expansion board for the original Yamaha DX7 synthesizer. It replaces the factory operating system ROM chips to drastically expand patch memory from the stock 32 patches to 320 RAM patches (across 10 banks) and adds advanced MIDI and performance control features.

Key Features of the E! Upgrade

• Massive Memory Expansion: Increases patch capacity to hold hundreds of internal voices simultaneously without needing external cartridges.
• Enhanced MIDI Control: Adds discrete send/receive channels, local control on/off, and fixes the original DX7's limitation of not transmitting full 0–127 velocity values.
• Advanced Performance Tools: Introduces features like split/layer capabilities, patch mapping, micro-tuning, and a basic internal pattern sequencer/arpeggiator depending on the exact implementation.
• New Control Pages: Access new software pages directly from the stock front panel buttons (Memory, Function, MIDI, Scales, and Physical Control).

Maintenance and Usage Tips

• SysEx Loading: You can load standard DX7 patches or bulk banks onto an E! modified unit via MIDI System Exclusive (SysEx) dumps using computer software like SysEx Librarian.
• Battery Dependency: Like the stock DX7, patch storage in RAM relies on an internal coin/backup battery. If the battery voltage drops too low, user patches can be lost and require a SysEx restore.
