Genzler Amplification Magellan 800+ Amp Head

The Genzler Magellan 800+ is the next generation of Genzler's acclaimed Magellan bass amplifier, delivering 800 watts of professional, tour-class power in an incredibly lightweight 6.25-pound package. The all-analog, solid-state design provides a wide tonal palette ranging from pristine, transparent reproduction to rich vintage-inspired harmonic textures, while the updated input circuitry delivers improved dynamics, lower noise, and increased headroom. Housed in a rugged, aircraft-grade aluminum chassis, the Magellan 800+ is built for demanding players who need exceptional tone and reliability without the weight of a traditional high-powered bass head.

The Magellan 800+ adds several significant improvements over the original Magellan 800, including a foot-switchable DRIVE circuit, variable 25–120Hz high-pass filter, and Genzler's Dual Contour Circuit with independently adjustable Classic-to-Modern and Thicker-to-Vintage curves. Its 4-band active EQ includes two sweepable midrange sections for precise tonal shaping, while the rear panel provides dual Speakon outputs, effects loop, tuner output, headphone output, and switchable pre/post direct output. With a universal 100–240V power supply and output capability of 400 watts at 8 ohms and 800 watts at 4 or 2.67 ohms, the Magellan 800+ is ready for stages anywhere in the world.

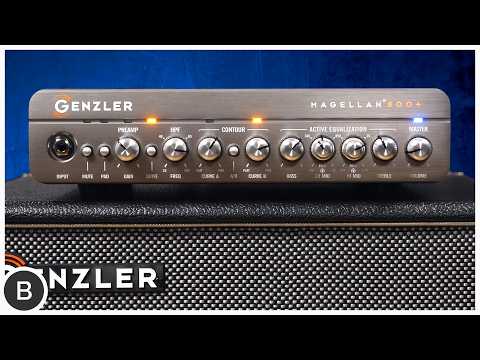

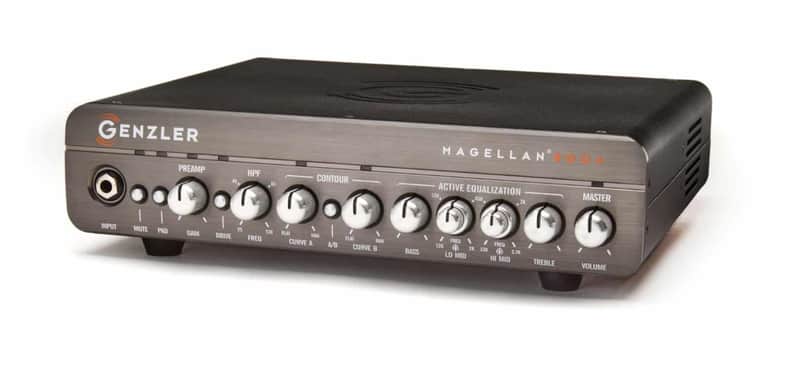

FRONT PANEL FEATURES:

• ¼” INPUT
• SIGNAL MUTE SWITCH
• INPUT PAD (- 8.5dB)
• GAIN LEVEL CONTROL
• DRIVE CHANNEL SWITCH — Voiced for a Driven Tonal Signature and Harmonic Texture, Controlled by Gain Level Control & Master Volume
• HPF—HIGH PASS FILTER — Variable from 25 – 120Hz
• DUAL-CURVE VARIABLE CONTOUR CIRCUITRY — Footswitchable
• • Curve A — Classic to Modern — Smooth Mid Scoop Curve w/Increased Lows & Highs
  • Curve B — Thicker to Vintage — Low-Mid Bump w/Tapered Top End
  • Flat Position — Full Bypass

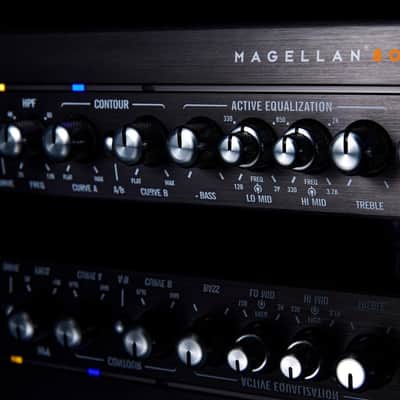

• ACTIVE 4 BAND EQ w/2 PARAMETRIC MID CONTROLS
• Bass:         +/- 15dB @ 75Hz
• Lo Mid:     +/- 15dB variable from 120Hz – 2K Hz
• High Mid: +/- 15dB variable from 330Hz – 3.7K Hz
• Treble:       +/- 15dB @ 6K Hz
• MASTER VOLUME CONTROL

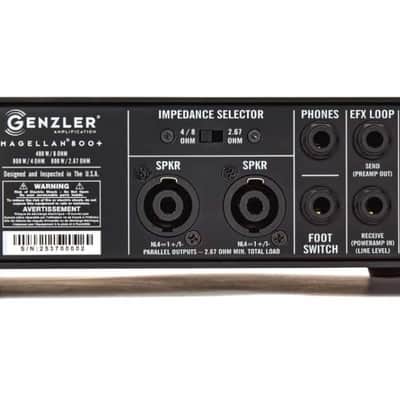

REAR PANEL FEATURES —-

• IMPEDANCE SELECTOR SWITCH — 8/4 ohm to 2.67 ohms
• DUAL SPEAKON® SPEAKER OUTPUTS
• HEADPHONE OUTPUT
• FOOTSWITCH INPUT JACK — For optional 2 button footswitch
• EFFECTS LOOP
• TUNER OUTPUT JACK
• DIRECT OUTPUT INTERFACE — PRE/POST
• THERMAL SENSING VIARIABLE SPEED FAN COOLING
• AIRCRAFT-GRADE, ALL ALUMINUM CHASSIS w/EXTRUDED ALUMINUM FRONT PANEL
• POWER AMPLIFIER — State of the art, Class D power amplifier and high frequency auto-sensing universal switch-mode power supply. Auto senses line voltage from 100 – 240 Vots

SPECIFICATIONS:

• POWER OUTPUT:  400W/8 Ohms, 800W/4 Ohms and 800W/2.67 Ohms
• MINIMUM SPEAKER LOAD:  67 Ohms
• OPERATING POWER CONDITION: 100 – 240V, 50/60 Hz
• DIMENSIONS: 3”H X 11.25”W X 10.5”D
• WEIGHT: 6.25 LBS
