DBX 1074 Quad Gate - 1U Rack Mount 4 Channel Noise Gate USA MADE - PLEASE READ

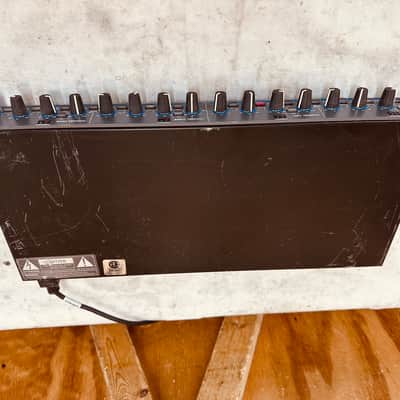

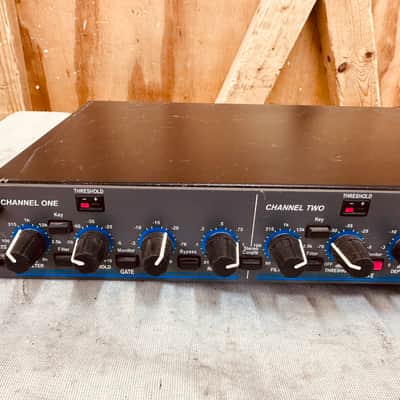

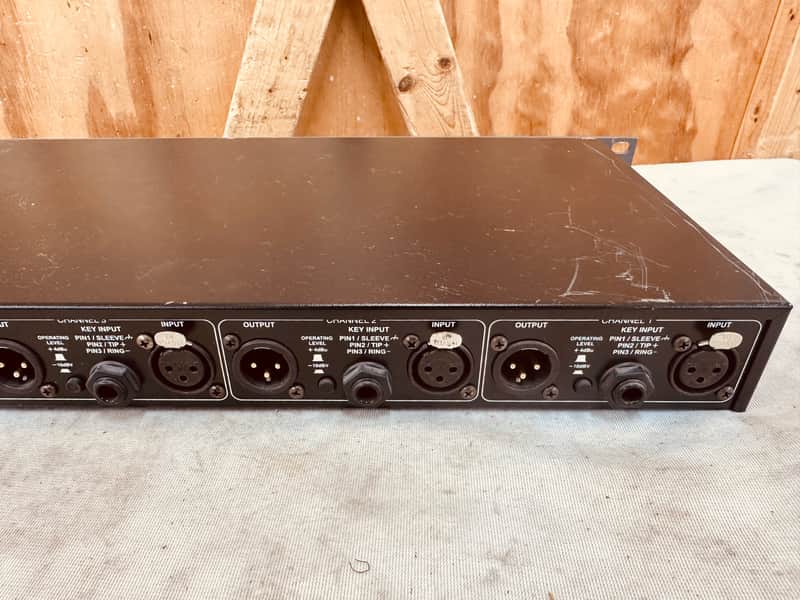

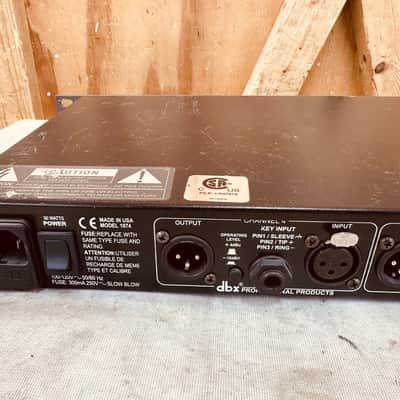

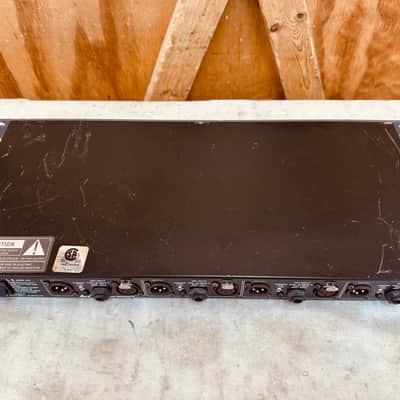

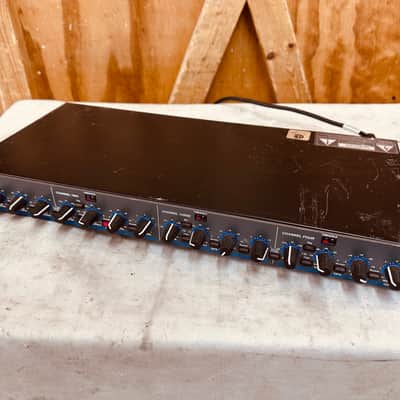

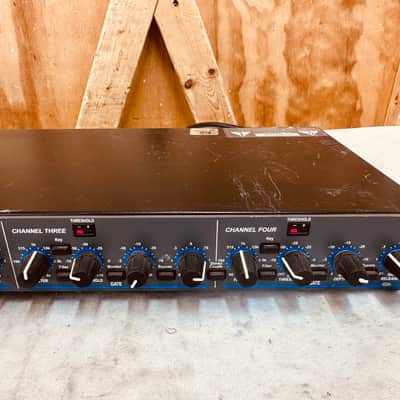

Recently obtained from a pro audio rental facility that was liquidating excess equipment.Unit is tested and working. PLEASE NOTE:The plastic surrounds around the key, filter & bypass buttons on channel 1 are missing. The buttons still engage and work. The bypass button needs to be jiggled sometimes.In good condition, some scratches from rack mounting. See photos for more details.Some specs at the bottom of this listingListing is for dbx 1074 Quad Noise Gate - tested & working as pictured only. No other accessories included. GRAB IT WHILE YOU CAN!

• Four independent channels of gating
• Independent key filtering
• Independent Threshold and Release controls
• Differentially balanced gold-plated XLR and 1/4 inch inputs and outputs
• True RMS level detection
• Stereo Coupling mode
• Switchable +4dBu or -10dBv operation per channel
• SPECIFICATIONSAt New York Music Mall LLC, we strive to make sure our customers are totally satisfied with their buying experience. If for any reason you have any issue with your purchase, please contact us and we will get right back to you and work with you to resolve any problems. Please do not open any cases or claims without contacting us first. We will be able to resolve any problems directly and make sure that any issues are taken care of immediately. Our perfect feedback speaks for itself. THANK YOU FOR YOUR BUSINESS. WE APPRECIATE IT!
• • Input Connectors: XLR (Pin 2 and tip hot)
  • Input Type: Electronically balanced/unbalanced, RF filtered
  • Input Impedance: Balanced > 50k Ohm, unbalanced 25k Ohm
  • Max Input: +22 dBu balanced or unbalanced
  • CMRR: 40dB: Typically 55 dB at 1 kHz
  • Key Input: Electronically balanced/unbalanced, RF fitered Balanced 50k Ohm, unbalanced 25k Ohm
  • Output Connectors: XLR (Pin 2 hot)
  • Output Type: Servo-balanced/unbalanced, RF filtered
  • Output Impedance: Balanced 60 Ohm, unbalanced 30 Ohm
  • Max Output: +22 dBm balanced, +20 dBm unbalanced
  • Bandwidth: 20 Hz to 20 kHz, +0/-0.5 dB
  • Frequency Response: 0.35 Hz to 200 kHz, +0/-3 dB
  • Noise: -96 dBu, unweighted, 22 kHz measurement bandwidth
  • Dynamic Range: 115 dB, unweighted
  • THD+Noise: 0.008% typical at +4 dBu (1 kHz unity gain), 0.08% typical at +20 dBu (1 kHz unity gain), 0.1% any amount of compression up to 40 dB, 1 kHz
  • Interchannel Crosstalk: -80dB, 20 Hz to 20 kHz
  • Stereo Coupling: True RMS Power Summing
  • Operating Voltage: 100-120 VAC 50-60 Hz or 200-240 VAC 50/60 Hz
  • Power Consumption: 30 Watts
  • Fuse: 100-120 VAC:250 mA Slow Blow, 200-240 VAC:125 mA Type T
  • Power Connector: IEC receptacle
  • Shipping Weight: 9.3 lbs.
