JBL VRX918SP Powered 18" 1500w Flyable Subwoofer Sub w/DSP+Audio Technica Mic

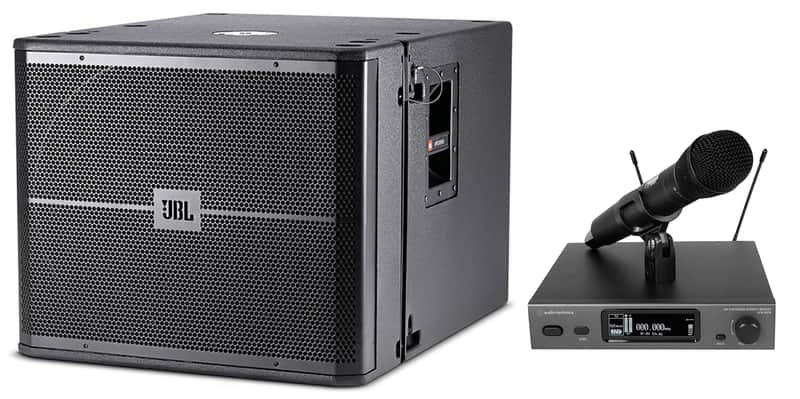

Package Includes:

• (1) JBL VRX918SP Powered Active 18" 1500w Flyable Suspendable Subwoofer Sub w/DSP
• (1) Audio Technica ATW-3212/C710EE1 3000 Wireless Handheld Microphone+Mic Receiver

Description:

18 in. High Power Powered Flying Subwoofer

The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.

Features:

• Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.
• 18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and light weight.
• Integral rigging hardware for simple connection of enclosures and optional array frame.
• 20 mm threaded pole socket for solid, secure satellite speaker mounting.
• Large port area for reduced distortion.

Specifications:

• Power Rating: 1500 Watts PeakLF: Dual-Bridged Technology™, Class D
• Frequency Range: 31 Hz - 220 Hz
• Dimensions (H x W x D): 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)
• Frequency Response (-10dB): 31 Hz - 220 Hz
• Maximum Peak Output: 126 dB SPL at 1m
• Bandpass Nominal Impedance: LF: 2 x 2 ohms
• LF Driver: 1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet

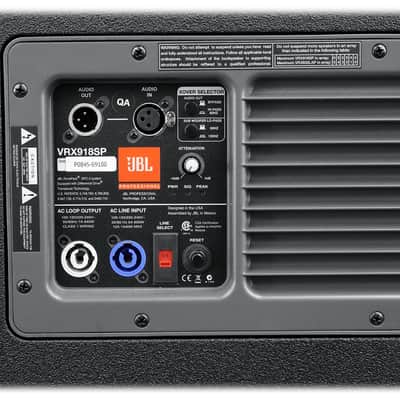

• Inputs: XLR with loop through
• User Controls: Input Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru.
• System Processing: DSP based, resident in Input Module
• System Management: DSP based limiters for mechanical and thermal protection
• AC Power Operating Range: 90-132 VAC or 216-264 VAC, 50/60Hz
• AC Line Voltage: User selectable: 120V/240V (-15%, +10%)
• AC Input Connector: Neutrik PowerCon (NAC 3MPA)
• AC Loop Through Connector: Neutrik PowerCon (NAC 3MPB)
• AC Current Requirements: 6A per system at 120V, 3A per system at 240V
• Enclosure: 18 mm birch plywood.
• Suspension / Mounting: Optional VRX-AF line-array frame kit or 10 mm forged eyebolts
• Finish: Black DuraFlex™ finish
• Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
• Net Weight (each): 38.5 kg (85 lb)
• Optional Accessories: VRX-AF array frameSRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kit
• Outputs: 1 x XLR
• Nominal Impedance: LF: 2 x 2 ohms

Authorized Audio-Technica Dealer!

What's in the box:

• ATW-R3210 Receiver
• ATW-T3202 Handheld Transmitter
• ATW-C710 Cardioid Condenser Microphone Capsule.

Description:

Providing easy setup, versatile operation and rock-solid, richly detailed high-fidelity sound, Audio-Technica’s fourth-generation 3000 Series wireless systems give users the power and flexibility to operate within the congested UHF spectrum.

With a class-leading 60 MHz tuning range – more than twice that offered by the previous versions – the new 3000 Series systems are available in frequency bands – EE1 (530–590 MHz). Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets users set a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference.

This system configuration features an ATW-R3210 receiver along with an ATW-T3202 handheld transmitter and an ATW-C710 interchangeable capsule. The ATW-T3202 comes with an ATW-C710 condenser interchangeable cardioid capsule, and its industry-standard thread allows for the use of Audio-Technica and other compatible capsules. The transmitter features rugged, metal housings and is powered by two AA batteries. Charging terminals on the transmitter work with the ATW-CHG3 and networkable ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries. Antenna power is available for powered antennas and other in-line RF devices. A ground-lift switch helps eliminate audible hum caused by ground loops. The system features balanced and unbalanced audio output jacks.

60 MHz Tuning Range
With a class-leading 60 MHz tuning range – more than twice that offered by the previous versions – the new 3000 Series systems are available in frequency bands – EE1 (530–590 MHz). Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets users set a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference.

Backup Frequency
Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered.

Interchangeable Cardioid Capsule
The ATW-T3202 comes with an ATW-C510 dynamic interchangeable cardioid capsule, and its industry-standard thread allows for the use of Audio-Technica and other compatible capsules.

Multifunction utton
Unique multifunction button on the body-pack transmitter can be used to switch to a backup frequency.

Charging Terminals
Charging terminals on each transmitter work with the ATW-CHG3 and networkable ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries.

OLED Screens
Transmitters and receivers include OLED screens for optimal readout of key settings and alerts.

Features:

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in four frequency bands: EE1 (530–590 MHz).
• Unique multifunction button on the handheld transmitter can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• True Diversity operation reduces dropouts
• Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Frequency scan and IR sync functionality for ease of setup
• Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
• Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
• Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
• Charging terminals on transmitter work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
• Antenna power available for powered antennas and other in-line RF devices
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks
• ATW-C710 condenser interchangeable cardioid capsule

Specifications:

Microphone Element Fixed-charge back plate permanently polarized condenser
  Polar Pattern Cardioid
  Frequency Response 80 - 20000 Hz
  Impedance 60 Ohms
  Power Requirements 5 V DC
  Battery Type Two 1.5V AA, not included
  Weight 114 g
  Dimensions 84.4 mm long, 50.0 mm max. diameter
  Output Connector Interchangeable industry-standard thread
  Overall System Operating Frequencies Band EE1: 530.000 to 589.975 MHz
Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
  Minimum Frequency Step 25 kHz
  Modulation Mode FM
  Maximum Deviation ATW-T3201: ±38 kHz (THD:10%)
ATW-T3202: ±36 kHz (THD:10%)
