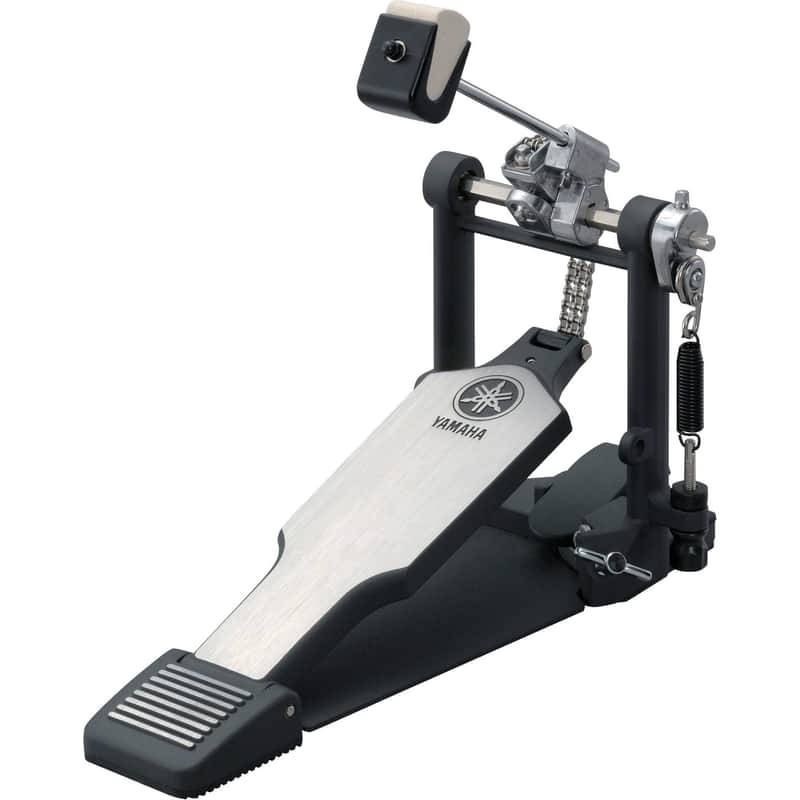

Single Foot Pedal - Chain Drive and convertible to the Belt Drive.

• 2way beater
• Beater Shaft Locker
• Beater Angle Adjustment
• Spring Tension Adjustment with Self Lock
• Simple Hoop Clamp Mechanism
• Footboard Angle Adjustment
• Spring Roller with Built-in Bearings
• Base Frame Tie Rods
• Chain Drive

Frame Structure :This Yamaha original design incorporates a sub-frame just below the rocker shaft to deliver greater stability and durability.

Drummers will experience smoother, more stable movement particularly in double pedal setups since bearings for both the main and remote beaters are incorporated into the sub-frame.

Features2-Way Beater

This convertible beater incorporates two types of beaters into a single unit. One side is a normal felt type while the other is made of plastic that delivers a feeling close to wood.

Beater Shaft Rocker

The teardrop shaped shaft hole holds the shaft securely. The shaft's flat surface keeps the 2-way beater from swiveling while playing.

Beater Angle Adjustment

Loosening the adjustment screw lets you freely adjust the beater angle along with the footboard angle.

Spring Tension Adjustment with Self Lock

One hand spring tension adjustment is easy. A lock bolt secures the setting to prevent loosening during play.

Simple Hoop Clamp Mechanism

A wing bolt firmly tightens the clamp for secure attachment. It also allows the clamp to accommodate different hoop thicknesses.

Footboard Angle Adjustment

The pedal angle can be set freely to any angle without affecting beater angle. This lets you set the pedal angle you want when the pedal is not pressed. A tuning key is used to make the adjustment, which also lets you align pedal height with your sub, and hi-hat pedals.

Spring Roller with Built-in Bearings

Precision bearings deliver smooth, natural pedal action.

Base Frame Tie Rods

Rubber coated tie rod ends prevent the footboard and base frame from becoming disconnected.

Smooth Moving Universal Joint

A universal joint on the rocker shaft provides angular flexibility for smoother movement.
